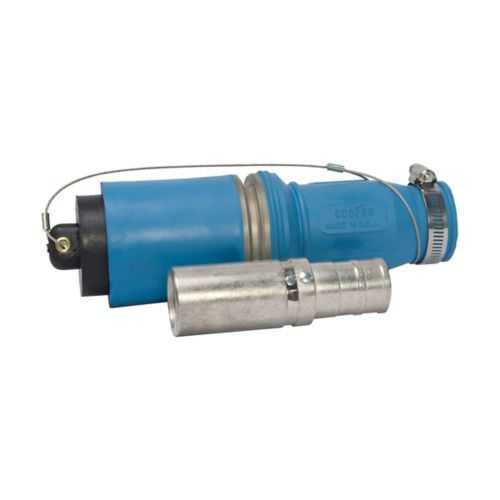

Eaton Crouse-Hinds Roughneck E1049 plug - NEMA 3
Part Number: E1049-251
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049 plug enables high-current power connections in challenging industrial environments. Facilities often struggle with unreliable, moisture-prone connectors that fail NEC/CEC compliance under demanding voltage levels. Certified for Ordinary/Non-Hazardous locations, NEC/CEC compliance, and a NEMA 3 rating for outdoor or damp environments. Designed to handle 444 kcmil conductors up to 796A continuously, it supports safe, compliant, cost-effective upgrades. Its rubber body and copper contacts simplify field termination with hexagon crimp or solder connections. And the included 1000 Vac/dc rating provides versatile performance across motor feeds, transformers, and feeders. Choose Eaton for reliable accessories that reduce downtime and maintenance costs.
Product Information
Extended Description
E1049-251 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-251
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275136299
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-251
Feature: Up to 796A continuous amperage handling and 444 kcmil conductor compatibility. The high-current rating reduces the number of terminations and simplifies feeder design, translating to faster field installs and lower commissioning costs. This is especially valuable in motor feeds and high-power distribution across manufacturing lines. Feature: Hexagon crimp or solder termination with copper contacts inside a rubber housing. Business impact: ensures low contact resistance and durable joints in harsh environments, decreasing rework and maintenance. Application: ideal for field or shop terminations on Roughneck plugs in OEM equipment and expansion projects. Feature: Yellow color and rubber construction for high-visibility and weather resistance. Impact: reinforced safety and long service life in Ordinary/Non-Hazardous locations, with a versatile 1000 Vac/dc rating. Application: suitable for outdoor, damp, and industrial indoor installations. Feature: NEC/CEC compliance and a NEMA Rating 3 specification. Impact: ensures regulatory alignment and site acceptance. Application: widely adopted in facilities following NEC guidelines.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-251
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-251?
Enquire Now
FAQs
The E1049-251 is designed for large power feeds and accepts up to 444 kcmil copper conductors with a continuous amperage rating to 796A. This enables high-current motor and transformer feeders with fewer terminations and a smaller termination footprint, reducing installation time and potential failure points in demanding facilities.
Termination options include hexagon crimp or solder, using copper contacts inside a rubber housing. This combination delivers low contact resistance and durable joints suitable for field or shop terminations, supporting flexible installation scenarios while maintaining high current capability on roughneck plugs.
The E1049-251 is certified for Ordinary/Non-Hazardous Locations and conforms to NEC/CEC standards. It carries a NEMA Rating 3, making it suitable for outdoor or damp environments. Its 1000 Vac/dc rating broadens compatibility across AC and DC power systems while maintaining safety and reliability in industrial settings.
Official installation sheets and datasheets are available from Eaton, including IF 1778 instruction sheets for Roughneck E1049 series connectors, brochure and catalog pages, and the E1049-251 specification sheet. Visit the provided Eaton links to download the materials for correct termination practices and dimensional details.
Product length is 8.5 in, height 3 in, width 3 in, and weight 5.5 lb. The unit uses the UPC 662275136299 for traceability. These dimensions support a robust high-current plug suitable for integration into compact power distribution assemblies.
