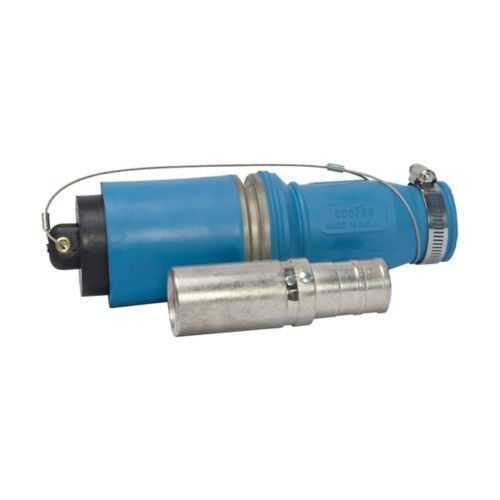

Eaton Crouse-Hinds E1049-254 Plug - 1000 Vac/dc
Part Number: E1049-254
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug is a rugged, high-amperage connector designed for industrial power distribution in demanding environments. Engineers often struggle with connectors that fail under high current or vibration, leading to downtime and maintenance costs. It meets NEC/CEC standards and carries a NEMA 3 rating, with an Ordinary/Non-Hazardous Location classification, ensuring safe, code-compliant operation in typical plant spaces. The design supports large cables up to 444 kcmil and continuous current up to 796 A, with copper contacts in a rubber housing for durable field performance. This combination delivers reliable, scalable power connections, aligning with broader automation investments and reducing lifecycle costs in power distribution.
Product Information
Extended Description
E1049-254 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Green, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-254
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275920072
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-254
High amperage capability and large cable size: Supports up to 796 A continuous and 444 kcmil cable, enabling direct connections for heavy motor feeders and reducing the need for multiple splices, which lowers installation time and potential failure points in industrial plants. Application: large motors, pumps, and feeders in non-hazardous settings. Copper contacts with rubber housing: Ensures low contact resistance for efficient power transfer and resistance to field wear, delivering cooler operation and longer service life. Application: high-current distribution in demanding environments. Hexagon crimp or solder termination: Provides flexible field or shop termination options, improving install speed and reliability while accommodating varying technician skill sets. Application: field assemblies and control panels. Rugged rubber enclosure with weather-resistant potential: Delivers physical protection and environmental resilience in plant floors and outdoor equipment, supporting consistent performance in ordinary locations. Application: outdoor feeders and enclosures in non-hazardous zones. NEC/CEC compliance and NEMA 3 rating: Meets critical safety and environmental standards, simplifying regulatory review and reducing compliance risk. Application: industrial facilities requiring durable, code-compliant power distribution components.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-254
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-254?
Enquire Now
FAQs
The E1049-254 Roughneck plug is designed to mate with compatible Roughneck connectors in the same series. It features a female contact and offers hexagon crimp or solder termination. For best performance, pair it with the matched E1049-series male connectors and use proper crimp tooling or soldering procedures to ensure a robust, code-compliant joint.
The E1049-254 is rated up to 796 A continuous and supports 444 kcmil cables. It is specified for 1000 Vac/dc, making it suitable for both AC and DC high-power circuits. Ensure correct cable preparation and copper contact engagement to maintain optimal electrical performance and reliability.
No. The connector is classified for Ordinary/Non-Hazardous Locations and should not be used in explosive or hazardous environments. It does, however, offer reliable weather and impact resistance in appropriate non-hazardous industrial settings, with a NEMA 3 enclosure rating providing outdoor compatibility where permitted by code.
The plug complies with NEC/CEC standards and carries a NEMA 3 rating. This combination supports safety, compatibility with typical electrical infrastructure, and weather-resistant performance in ordinary location installations, helping facilities meet regulatory requirements while maintaining reliability.
Investing in the E1049-254 yields ROI through reduced downtime and fewer joints due to its high amperage capability and large cable capacity. Field or shop terminations via hex crimp or solder speed up installs, while the rugged rubber housing and copper contacts extend service life, lowering maintenance costs and enhancing uptime for critical plant equipment.
