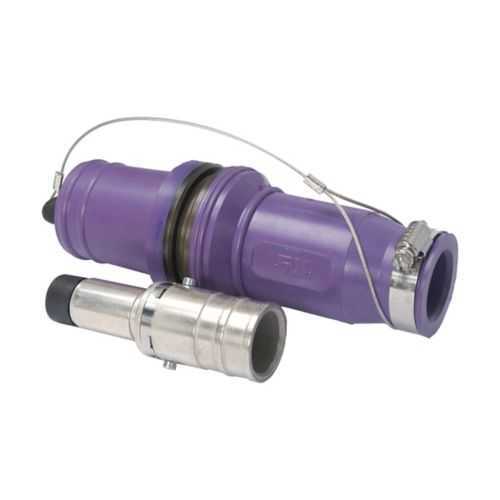

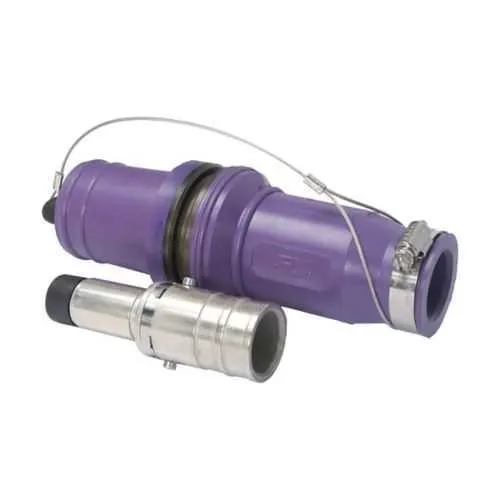

Eaton Crouse-Hinds E1049-26 Plug - 1000 Vac/dc
Part Number: E1049-26
Quick Summary
The Eaton Crouse-Hinds E1049-26 plug delivers high‑current power connections for Roughneck systems used in industrial electrical installations. When field connections fail due to vibration or improper terminations, downtime and maintenance costs rise quickly. This plug is designed to stay mating securely under demanding plant conditions, helping maintain uptime and reliability. It adheres to NEC/CEC standards and is rated for NEMA 3 enclosures, supporting robust performance in Ordinary/Non-Hazardous locations. With a 777 kcmil cable size and copper contacts, it provides a solid, code‑compliant power path. For engineers and procurement teams, this means fewer part numbers, simpler sourcing, and faster installation without compromising safety or performance.
Product Information
Extended Description
E1049-26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, White, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-26
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275136367
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-26
Feature: Up to 1135A continuous amperage rating. Business Impact: Enables single‑connector power delivery for large motors and equipment, reducing the need for multiple splices or parallel feeds and cutting installation costs. Application: Heavy-duty drives, MCCs, and large conveying systems in steel, mining, and manufacturing facilities. Feature: Cable size compatibility up to 777 kcmil. Business Impact: Supports the largest feeder conductors in a single plug, lowering terminal losses and simplifying cable management. Application: Main feeder connections to large motor starters and power distribution units. Feature: Rubber housing construction. Business Impact: Delivers durable, vibration‑resistant protection against environmental grime and mechanical wear, extending service life and reducing replacement cycles. Application: Plant floors, assembly lines, and outdoor equipment where reliability matters. Feature: Copper contact material. Business Impact: Ensures low contact resistance for high currents, improving thermal performance and long-term conductivity. Application: High‑amperage connections in Roughneck assemblies and heavy-duty harnesses. Feature: Connection options – hexagon crimp or solder. Business Impact: Provides installation flexibility to suit field conditions and technician preference, speeding terminations and minimizing downtime. Application: On‑site field wiring, pre‑terminated harness integration, and retrofit projects. Feature: Voltage rating of 1000 Vac/dc. Business Impact: Enables versatile use across AC and DC power systems, reducing the need for multiple connector families. Application: Industrial motors, DC drives, and general power distribution in non-hazardous environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-26?
Enquire Now
FAQs
Use the hexagon crimp or solder termination as specified for the E1049-26. Ensure conductors are properly prepared and crimped with the correct tooling or perform the solder joint per the installation instructions. Verify connector seating and engage any locking features to prevent unintentional disconnection during equipment operation.
The E1049-26 is rated for up to 1135A continuous current, accepts 777 kcmil conductors, and provides a voltage rating of 1000 Vac/dc. It is a male connector designed for Roughneck assemblies and supports hexagon crimp or solder terminations with a white rubber housing and copper contacts.
No. The E1049-26 carries a NEMA 3 rating and is intended for Ordinary/Non-Hazardous Locations. It is suitable for general industrial environments but is not specified for hazardous areas. For outdoor or more challenging environments, verify an appropriate enclosure and protection scheme per site requirements.
The plug conforms to NEC/CEC standards and is listed for Ordinary/Non-Hazardous locations with a NEMA Rating of 3. These certifications help ensure compliance with typical industrial power distribution codes and enable safer, code‑compliant installations.
The copper contacts and rugged rubber housing deliver reliable conductivity and durability, reducing contact resistance and downtime. High‑amperage capability with large 777 kcmil conductors lowers the need for parallel feeds, saving material and labor costs over the asset lifecycle and improving overall equipment availability.
