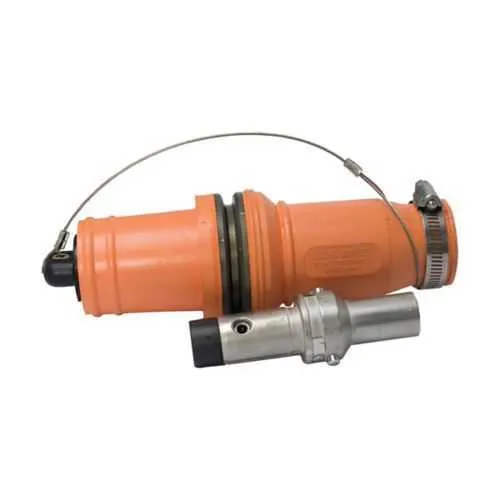

Eaton Crouse-Hinds E1049-32 Plug - 1000 Vac/dc
Part Number: E1049-32
Quick Summary
The E1049-32 plug delivers rugged, high-amperage connectivity for harsh industrial environments. Engineers often struggle with reliable terminations at large wire sizes and in non-weather-protected locations, leading to intermittent faults and downtime. This model aligns with NEC/CEC standards, carries a NEMA 3 rating, and is suitable for Ordinary/Non-Hazardous Locations, helping ensure regulatory compliance and safer operation. By standardizing on Roughneck plugs, maintenance teams achieve faster installations, reduced insulation failures, and lower field rework, while procurement gains a predictable, long-life solution for up to 636A continuous and 313 kcmil wires. The combination of copper contacts, rubber housing, and hexagon crimp or solder connections supports durable, high-integrity terminations.
Product Information
Extended Description
E1049-32 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-32
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275845580
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-32
Feature: Up to 636A continuous amperage enables reliable power delivery for large motors and feeders. Business Impact: Reduces panel count and minimizes risk of overheating or voltage drop during peak loads, improving overall plant efficiency. Application: Heavy electrical distribution in manufacturing lines and processing plants. The E1049-32 is designed for Roughneck high-amperage plugs in demanding environments. Feature: Cable size capability of 313 kcmil supports substantial conductor runs. Business Impact: Keeps wire management compact and compliant with industrial wiring standards, reducing installation time and inventory variety. Application: Power feeds from switchgear to motor starters and distribution panels. Feature: Copper contact material with rubber housing delivers durable, corrosion-resistant terminations. Business Impact: Low maintenance, longer service life, and fewer field re-terminations, lowering operating costs. Application: Frequent connection/disconnection cycles in non-hazardous locations. Feature: Hexagon crimp or solder connection offers installation flexibility. Business Impact: Fast, secure terminations with consistent electrical performance, enabling streamlined field service. Application: On-site termination at 313 kcmil conductor sizes. Feature: Color-coding and robust rugged construction support visibility and safety. Business Impact: Enhances fault isolation and reduces misconnection risk, speeding commissioning and maintenance. Application: Industrial environments requiring clear identification and durable enclosures. Feature: 1000 Vac/dc voltage rating ensures wide compatibility with heavy-duty power systems. Business Impact: Provides a safe design margin for diverse industrial applications, supporting NEC/CEC compliance. Application: High-voltage DC and AC distribution in non-hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-32?
Enquire Now
FAQs
The E1049-32 is designed for the Roughneck series and uses a copper contact with a rubber housing. It supports hexagon crimp or solder terminations for cables up to 313 kcmil and is rated up to 636A continuous at 1000 Vac/dc, suitable for Ordinary/Non-Hazardous Locations per NEC/CEC and NEMA 3 standards.
Key specs include amperage up to 636A continuous, cable size 313 kcmil, voltage rating 1000 Vac/dc, copper contacts, male connector, and hexagon crimp or solder connection. It uses a rubber housing and is color‑coded yellow for visibility in industrial environments.
This plug is classified for Ordinary/Non-Hazardous Locations with a NEMA 3 rating. It provides weather resistance suitable for non-hazardous outdoor or mildly exposed environments, but it is not rated for immersion or full hazardous area service.
Copper contacts with secure hex crimp or solder terminations deliver low contact resistance and robust durability, reducing field rework. Rubber housing offers vibration tolerance and insulation, while the high-amperage rating supports reliable operation for large feeders, diminishing downtime during preventive maintenance and installations.
Official resources include installation sheets IF 1777 and IF 1778, the Roughneck catalog page, and the E1049-32 specification sheet. Access brochures and catalogs via Eaton’s Roughneck literature, and consult the data sheets for precise termination procedures, compatibility notes, and safety guidelines.
