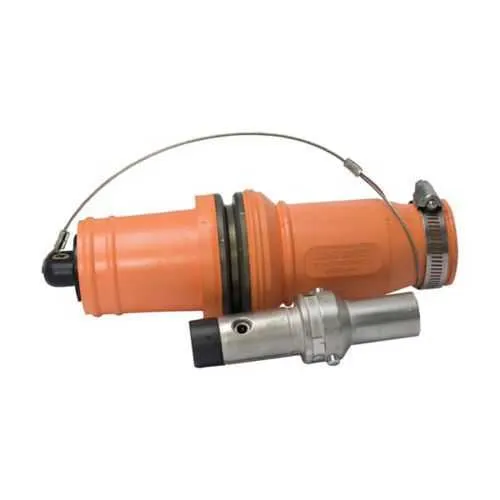

Eaton Crouse-Hinds Roughneck E1049-34 Plug - 1000 Vac/dc
Part Number: E1049-34
Quick Summary
Eaton Crouse-Hinds Roughneck E1049-34 plug provides high-amperage electrical connections for rugged industrial power systems. Engineers and procurement teams often face challenges wiring large conductors in harsh environments, which can slow projects and drive up costs. This plug meets NEC/CEC standards and a NEMA 3 rating, making it suitable for ordinary/non-hazardous locations and outdoor installations. With copper contacts in a rubber orange housing, and options for hexagon crimp or solder connections, it supports up to 313 kcmil cable and up to 636A continuous at 1000 Vac/dc, delivering reliable performance and lower lifecycle costs for your heavy-duty power distribution needs.
Product Information
Extended Description
E1049-34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Orange, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-34
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275136435
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Orange
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-34
High current capability up to 636A continuous and 1000 Vac/dc enables handling of large loads with fewer joints, reducing potential failure points and installation time in manufacturing lines and distribution feeders. Copper contacts paired with a robust rubber housing deliver low contact resistance and durable performance in demanding environments, extending service life and lowering maintenance costs for plant power systems. The option for hexagon crimp or solder terminations provides field flexibility, improving installation speed and reliability when wiring 313 kcmil conductors. The orange connector color and rugged design support quick identification and safer handling in busy facilities, while the NEMA 3 rating and ordinary/non-hazardous location classification improve regulatory compliance and site acceptance for outdoor or damp environments. This product integrates smoothly with existing Roughneck plug families, minimizing inventory complexity and facilitating faster replacements during outages.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-34?
Enquire Now
FAQs
The E1049-34 is designed to mate within the Roughneck family, utilizing a male connector with a rubber housing and copper contacts. It supports 313 kcmil cables and hexagon crimp or solder terminations, making it compatible with common industrial enclosures and distribution panels. Its 8.5 in length and 2.16 in width/height fit typical mounting footprints, facilitating straightforward retrofits or new builds.
This plug is rated up to 636A continuous and 1000 Vac/dc, supporting up to 313 kcmil conductors. The copper contact material provides low resistance and long-term reliability under high current. The combination enables safe, efficient power transfer for heavy loads while maintaining compliance with NEC/CEC standards and non-hazardous location classifications.
The E1049-34 is intended for ordinary/non-hazardous locations with a NEMA 3 enclosure rating, making it suitable for outdoor or damp settings. Its rubber housing and orange color improve durability and visibility in industrial facilities. It is designed to withstand typical factory conditions, reducing the risk of environmental degradation and ensuring consistent performance.
Eaton provides multiple documents to support installation and maintenance, including installation sheets IF 1778 for Roughneck E1049 series, a dedicated brochure for high-amperage plugs, and a product specification sheet. These resources cover termination practices, safety considerations, and proper mating to ensure reliable field performance and regulatory compliance.
By supporting up to 636A continuous and 1000 Vac/dc with 313 kcmil conductors, the E1049-34 reduces the number of joints and potential failure points in feeders, lowering maintenance frequency. Copper contacts and robust rubber housing extend service life in tough environments, while compatibility with Roughneck components simplifies spare parts and inventory management, delivering lower lifecycle costs and quicker repairs.
