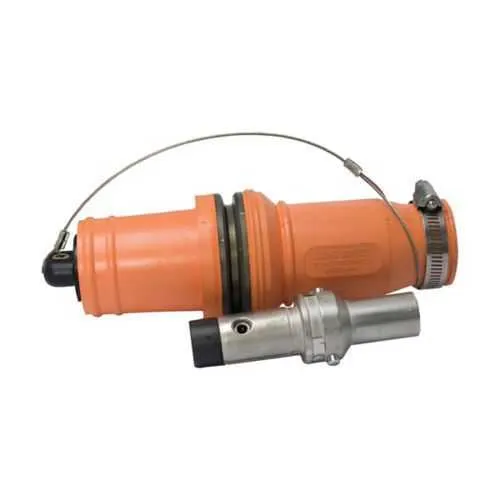

Eaton Crouse-Hinds E1049-35 Plug - NEMA 3 Rated
Part Number: E1049-35
Quick Summary
The Eaton Crouse-Hinds E1049-35 plug provides rugged, high-amperage electrical connections for harsh industrial environments. Operators often struggle with unreliable field terminations, slow installation, and connectors that fail under vibration, leading to costly downtime. Designed to NEC/CEC standards with a NEMA 3 rating and suitability for Ordinary/Non-Hazardous Locations, this plug supports safe outdoor and indoor installations. The Roughneck E1049 series delivers durable rubber housing and copper contacts, enabling reliable performance in demanding conditions, while offering hexagon crimp or solder termination for flexible field service. With support for up to 313 kcmil conductors and up to 636A continuous current, it aligns with operational goals for efficiency, safety, and long-term cost reduction.
Product Information
Extended Description
E1049-35 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Green, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-35
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275136442
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-35
Feature: Up to 636A continuous current. Business Impact: Enables heavier feeder connections without multiple splices, reducing panel density and maintenance costs. Application: Ideal for motor feeders and high-load equipment in manufacturing floors. Feature: 1000 Vac/dc voltage rating. Business Impact: Supports both AC and DC power distribution with margin for transients, enhancing system reliability. Application: Suitable for heavy machinery and power distribution nodes in industrial plants. Feature: Cable size up to 313 kcmil. Business Impact: Allows longer conductor runs with fewer terminations, cutting installation time. Application: Large-diameter power feeders in processing lines and plastics/machinery applications. Feature: Hexagon crimp or solder termination. Business Impact: Flexible termination options speed field assembly while ensuring a stout, vibration-resistant joint. Application: On-site assembly in rugged environments where tooling varies. Feature: NEMA 3 rating and Ordinary/Non-Hazardous Locations suitability. Business Impact: Reliable outdoor performance and indoor use in non-hazardous areas, reducing enclosure requirements. Application: Outdoor substations, weather-exposed equipment, and factory floors. Feature: Rubber body with copper contacts. Business Impact: Durable, corrosion-resistant contact system with robust electrical performance, decreasing maintenance cycles. Application: Harsh washdown zones and vibration-prone installations in industrial settings.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-35?
Enquire Now
FAQs
Installers should prepare 313 kcmil copper conductors with clean, square ends. Use the Hexagon crimp or solder termination method recommended by Eaton, selecting the appropriate crimp dies for the conductor size. Slide the conductor into the contact and secure with the chosen termination technique, then assemble the rubber housing to seal against moisture and dust. Verify the 8.5 in length and 2.16 in width/height fit within the panel or enclosure, and test continuity and insulation resistance after installation to confirm a reliable connection.
The E1049-35 plug is rated for up to 636A continuous current and up to 1000 Vac/dc, making it suitable for high-load feeders and heavy equipment. It accepts conductors up to 313 kcmil copper, enabling large-diameter cable runs with a single termination. This combination supports robust power distribution while maintaining operational safety margins in industrial environments.
Yes. The E1049-35 is designed for Ordinary/Non-Hazardous Locations with a NEMA 3 rating, providing protection against rain, dust, and incidental moisture. Its green rubber body and copper contacts offer chemical resistance and vibration tolerance, making it well-suited for outdoor equipment, weather-exposed installations, and damp indoor areas where reliable power connections are required.
This plug adheres to NEC/CEC standards and carries a NEMA 3 rating for exterior and rugged interior use. Its Ordinary/Non-Hazardous Locations classification confirms suitability for general industrial environments without hazardous location constraints, ensuring compliance for most manufacturing and processing facilities.
The Roughneck E1049-35 leverages a durable rubber housing and copper contacts designed for long service life, resilient to vibration and environmental exposure. The option for hexagon crimp or solder terminations reduces installation time and rework, lowering labor costs. In practice, operators see fewer field failures, lower maintenance intervals, and improved uptime for feeders and high-load equipment.
