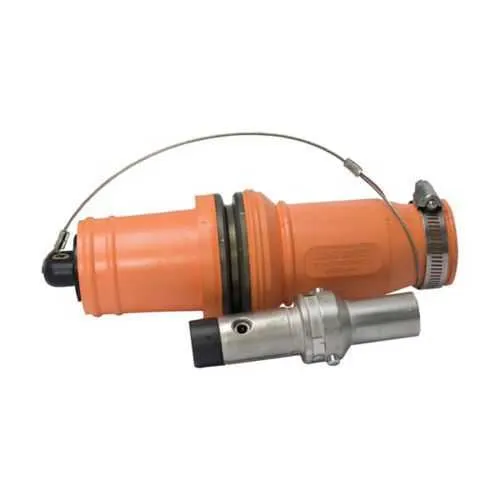

Eaton E1049-37 Roughneck Plug - 1000 Vac/dc, NEMA 3
Part Number: E1049-37
Quick Summary
Roughneck E1049-37 plug provides rugged, high-current electrical connections for industrial power distribution in demanding facilities. It addresses common pain points like loose terminations, corrosion, and difficult field servicing by delivering a durable, easy-to-terminate solution. The design complies with NEC/CEC standards and carries a NEMA 3 rating, making it suitable for outdoor mounting and damp indoor locations. It also supports ordinary/non-hazardous locations, ensuring reliable performance across a wide range of plant environments. With copper contacts sealed in a rubber housing, the E1049-37 offers low resistance, improved longevity, and reduced maintenance costs, while providing fast, field-terminable connections for large feeders and motor circuits.
Product Information
Extended Description
E1049-37 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-37
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275843746
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-37
Feature: Amperage rating up to 636A continuous. Business Impact: Enables direct high-current connections, reducing the need for multiple connectors and lowering installation costs while improving reliability. Application: Large motors, pumps, and feeder cables in manufacturing lines and process equipment. Feature: Cable size compatibility 313 kcmil. Business Impact: Supports large-diameter conductors with a single plug, minimizing termination points and space requirements. Application: Main feeders and branch feeders in switchgear and motor control centers. Feature: Voltage rating 1000 Vac/dc. Business Impact: Safe for both AC and DC power applications, expanding compatibility with motor drives and DC power systems. Application: Industrial drives, DC bus connections, and high-voltage distribution. Feature: Rugged rubber housing and copper contacts. Business Impact: Provides moisture resistance, abrasion protection, and low contact resistance, boosting uptime in harsh environments. Application: Outdoor installations, damp indoor locations, and areas with exposure to dust or splashes. Feature: Termination options hexagon crimp or solder. Business Impact: Offers flexible field installation with standard tooling, reducing downtime and enabling on-site terminations. Application: Field servicing, maintenance windows, and retrofits where durable, high-amperage terminations are required.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-37
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-37?
Enquire Now
FAQs
The E1049-37 is a male Roughneck plug designed to pair with corresponding Roughneck receptacles within the same high‑amperage family. Ensure the mate is specified for 313 kcmil conductors and a 1000 Vac/dc rating, and that termination is performed with hexagon crimp or solder as appropriate for the field. Always verify NEC/CEC compliance and proper enclosure rating for the installation.
E1049-37 provides up to 636 A continuous amperage and a voltage rating of 1000 Vac/dc. It accepts conductors up to 313 kcmil copper, enabling large feeder and motor circuit terminations with a single plug. This combination supports robust high‑power connections in industrial environments.
The E1049-37 is intended for ordinary/non-hazardous locations and meets NEC/CEC standards, with a NEMA 3 rating for protection against rain and dust. Its rubber housing and copper contacts are designed for outdoor installations and damp indoor locations, delivering reliable performance in challenging plant conditions.
The E1049-37 adheres to NEC/CEC standards and carries a NEMA Rating of 3. It is suitable for ordinary/non-hazardous locations, aligning with typical industrial power distribution requirements and ensuring compliant, safe operation in non-hazardous environments.
Use the hexagon crimp or solder termination method as specified for 313 kcmil copper conductors. Prepare cables properly, select the correct crimp tooling, and follow the IF 1778 instruction sheets for Roughneck E1049 series components. Ensuring clean terminations, correct torque, and consistent materials reduces resistance, heat buildup, and maintenance needs over the motor feeder life.
