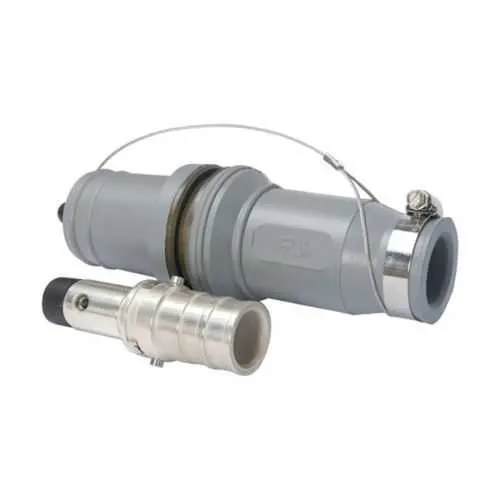

Eaton Crouse-Hinds E1049-5 Plug - 1000 Vac/dc
Part Number: E1049-5
Quick Summary
The Eaton Crouse-Hinds E1049-5 plug is a rugged high-amperage connector designed for industrial power distribution in harsh facilities. Engineers often struggle with unreliable, corrosion-prone connections in aggressive environments, leading to downtime and maintenance costs. This Roughneck plug aligns with NEC/CEC standards and carries a NEMA 3 rating for outdoor or damp locations, while its ordinary/non-hazardous area classification supports safe deployment. With up to 898 A continuous capacity at 1000 Vac/dc and 535 kcmil conductors, it delivers dependable power delivery. The design also enables hexagon crimp or solder terminations and features a green rubber housing for broad equipment compatibility and long-term cost efficiency.
Product Information
Extended Description
E1049-5 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Green, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-5
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275854599
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-5
Feature: Up to 898 A continuous amperage rating. Benefit: Enables reliable feeding of large motors and high-demand equipment, reducing voltage drops and the need for frequent terminations. Application: Industrial motor feeders and high-current distribution networks. Feature: Cable size compatibility 535 kcmil. Benefit: Supports substantial feeder cables, enabling fewer parallel runs and optimized conduit space. Application: Main feeders to heavy machinery in manufacturing or processing plants. Feature: Voltage rating 1000 Vac/dc. Benefit: Provides a wide voltage envelope for versatile power platforms, improving safety margins and control reliability. Application: Mixed AC/DC power systems in harsh environments. Feature: Connection options Hexagon crimp or solder. Benefit: Installation flexibility with common field tools, accelerating commissioning and reducing labor time. Application: On-site terminations for rugged power connectors. Feature: Rubber housing with copper contacts. Benefit: Weather-resistant sealing and high-conductivity performance, enhancing longevity and reducing contact resistance over time. Application: Outdoor or damp locations and demanding industrial outdoors. Feature: NEC/CEC compliance and NEMA Rating 3. Benefit: Regulatory alignment and protection against rain, dust, and debris, lowering regulatory risk. Application: Outdoor substations, industrial yards, and non-hazardous facilities. Feature: Roughneck series compatibility and overall dimensions 8.5 in length, 2.16 in width/height, 5.5 lb. Benefit: Predictable fit with existing Roughneck components and manageable handling during installation. Application: Retrofit projects and new builds where space and compatibility are critical.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-5?
Enquire Now
FAQs
The E1049-5 supports 535 kcmil copper conductors and is rated up to 898 A continuous at 1000 Vac/dc. Terminations can be performed via hexagon crimp or solder methods, offering field-flexibility and reliable, high-current connections suitable for large feeders in industrial environments.
Yes. The E1049-5 complies with NEC/CEC standards, carries a NEMA 3 rating, and is suitable for Ordinary/Non-Hazardous Locations. This ensures regulatory alignment for outdoor or damp locations while supporting safe operation in non-hazardous industrial facilities.
Ideal for high-current power distribution to large equipment and motors in manufacturing and processing facilities. Its rugged rubber housing, copper contacts, and 535 kcmil cable compatibility make it well-suited for outdoor or damp environments with non-hazardous classifications, delivering reliable, long-life performance with reduced maintenance.
Field termination is supported via hexagon crimp or solder options, allowing technicians to adapt to available tools and practices. The connector’s dimensions and Roughneck design simplify installation in tight spaces while preserving high-current capability and environmental resilience.
The robust rubber housing and copper contact design minimize corrosion and contact resistance over time, reducing downtime and replacement costs. Its high amperage rating and durable construction provide a favorable return on investment by supporting longer service intervals and lower maintenance labor in demanding facilities.
