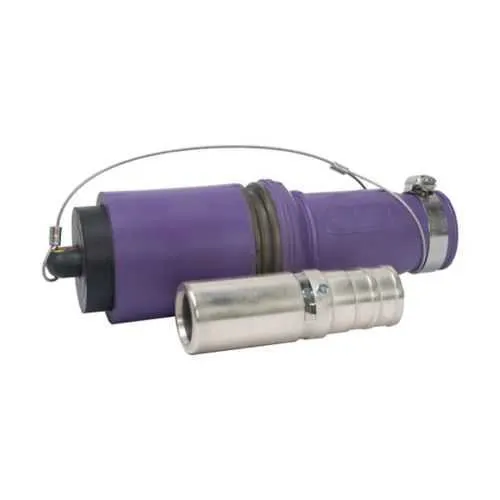

Eaton Crouse-Hinds E1049-50 Plug - 1000 Vac/dc
Part Number: E1049-50
Quick Summary
Eaton Crouse-Hinds E1049-50 plug enables high-current power connections for Roughneck assemblies in industrial facilities. In harsh environments, unreliable terminations and heat-related failures erode uptime; this rugged plug helps prevent that. It complies with NEC/CEC standards, carries a NEMA Rating of 3, and is designed for ordinary/non-hazardous locations. By delivering up to 898 A continuous and supporting 535 kcmil copper conductors, it offers reliable performance with hexagon crimp or solder termination and a rubber body, reducing labor costs and downtime while ensuring safety.
Product Information
Extended Description
E1049-50 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Black, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-50
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275136503
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-50
Feature: High amperage rating up to 898 A continuous. Business Impact: Supports large motor and feeder loads, enabling fewer parallel connections and reducing junction losses. Application: Heavy-duty power distribution in Roughneck systems with dependable performance under continuous operation. Feature: Cable size compatibility up to 535 kcmil. Business Impact: Allows engineers to run larger conductors, minimizing voltage drop and saving panel space. Application: Main feeders and high-current connections in industrial facilities. Feature: Connection options hexagon crimp or solder. Business Impact: Provides flexible field termination and strong mechanical integrity, improving installation speed and reducing rework. Application: On-site terminations in rugged environments. Feature: Rubber body with copper contacts. Business Impact: Delivers durable, corrosion-resistant contact interfaces and weather-sealed performance, extending connector life. Application: Outdoor and harsh indoor locations with moisture exposure. Feature: Electrical rating 1000 Vac/dc and female gender. Business Impact: Ensures safe, compatible mating with counterpart components while meeting safety standards. Application: System-level integration for high-voltage, high-current power distribution. Feature: Certifications and compliance NEC/CEC and NEMA 3. Business Impact: Facilitates regulatory approval and safe operation in Ordinary/Non-Hazardous Locations. Application: Industrial plants requiring standard-compliant heavy-duty connectors.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-50?
Enquire Now
FAQs
For installation, ensure mating with the correct Roughneck E1049-series receptacle, choose hexagon crimp or solder termination, and use copper conductors up to 535 kcmil. Verify 1000 Vac/dc rating is suitable for the system, and follow NEC/CEC guidelines and local codes. Use appropriate protective gear and perform a torque check to ensure a secure, code-compliant connection.
The E1049-50 is rated for up to 898 A continuous and supports 535 kcmil conductors, with a voltage rating of 1000 Vac/dc. This makes it suitable for high-current feeder connections, motor leads, and other demanding power distribution tasks in Roughneck installations while maintaining safe operation.
Yes. The E1049-50 uses a rubber body and copper contacts designed for durability in ordinary/non-hazardous locations, and it adheres to NEC/CEC standards with a NEMA 3 rating for protection against weather and ingress. This combination helps minimize downtime and maintenance in typical industrial settings.
The plug complies with NEC/CEC standards and carries a NEMA 3 rating, suitable for Ordinary/Non-Hazardous Locations. Its rugged construction and compliance make it appropriate for non-hazardous industrial environments where high-current connections are required, such as process lines and power distribution panels.
By enabling high-current, secure terminations with hex crimp or solder options and a durable rubber body, the E1049-50 reduces installation time and rework, lowers maintenance frequency, and improves uptime. Its compatibility with large cable sizes minimizes connector count, delivering long-term cost savings in heavy-duty industrial power distribution.
