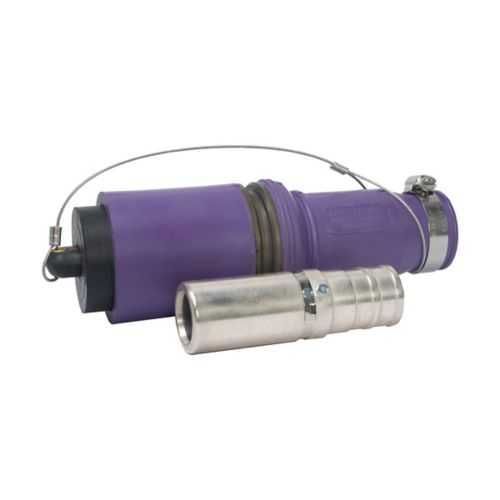

Eaton E1049-58 Plug - NEMA 3 Rated High-Amperage
Part Number: E1049-58
Quick Summary
The Eaton E1049-58 Plug is a high-amperage connector used in Roughneck power distribution. Maintenance cycles demand rugged, reliable connections that resist vibration and harsh environments. It meets NEC/CEC standards and carries a NEMA 3 rating for outdoor and heavy-duty use. Designed for large-diameter cabling and currents up to 898 A, it reduces wiring complexity and downtime. Use with 535 kcmil copper conductors and hex-crimp or solder terminations for flexible installation.
Product Information
Extended Description
E1049-58 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Purple, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-58
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275934765
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Purple
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-58
High-current capability and 535 kcmil compatibility enable fewer connectors and higher motor-load efficiency. Up to 898A continuous and 535 kcmil cables mean you can consolidate feeders, reducing panel footprint and installation time. This is ideal for heavy motors, pumps, and conveyors in harsh industrial environments. Flexible termination options, hexagon crimp or solder, deliver installation flexibility and field reliability. The ability to choose crimp tooling or soldering supports varying shop capabilities and on-site constraints, cutting commissioning time. Applications include retrofit projects and new builds where precise tooling may be limited. NEMA 3 rating and ordinary/non-hazardous location suitability provide robust outdoor and dusty environment performance. This certification profile lowers compliance risk and enables outdoor distribution to keep critical processes running. Use cases include outdoor substations, outdoor panels, and construction-site feeders. Rubber housing and copper contacts deliver durable, low-resistance connections under vibration and thermal cycling. The rugged construction reduces maintenance cycles and extends service life in continuous-run facilities. Ideal for large-diameter cable runs in mining, metal fabrication, and chemical processing facilities. Engineering-grade copper contacts and precise tolerances support reliable, repeatable connections, improving uptime and reducing torque/friction-related errors during assembly. Compatibility with 8.5 in length and 3x3 in footprint simplifies mounting in existing enclosures. Guides and datasheets from Eaton streamline installation and testing.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-58?
Enquire Now
FAQs
The E1049-58 supports large conductors up to 535 kcmil and offers hexagon crimp or solder termination. Use the appropriate crimp tooling or soldering process as specified in the IF 1777 instructions. Ensure the rubber housing seats fully and copper contacts are clean and torqued per connector guidelines to maintain low resistance and high reliability in continuous operation.
Key specs are an amperage rating up to 898A continuous, a cable size of 535 kcmil, and a voltage rating of 1000 Vac/dc. These figures enable single connectors to serve heavy motor feeds and large-diameter cables, reducing the need for multiple parallel connections while maintaining robust electrical performance in demanding environments.
Yes. The E1049-58 is certified for Ordinary/Non-Hazardous Locations and carries a NEMA 3 rating, making it appropriate for outdoor, dusty, and vibration-prone settings. This reduces compliance risk for outdoor feeders and supports reliable operation in non-hazardous industrial applications such as outdoor panels and construction-site installations.
The connector conforms to NEC/CEC standards and carries a NEMA Rating of 3, aligning with common industrial and electrical installation requirements. Area classification is Ordinary/Non-Hazardous Locations, which supports widespread use in non-hazardous industrial facilities and ensures regulatory alignment during audits and maintenance planning.
By enabling up to 898A with a single 535 kcmil connection and durable copper contacts, the E1049-58 reduces splice points and downtime, improving uptime and asset utilization. The rubber housing resists environmental stress, lowering maintenance intervals, while installation flexibility (hex crimp or solder) minimizes field delays and capitalizes on existing tooling investments.
