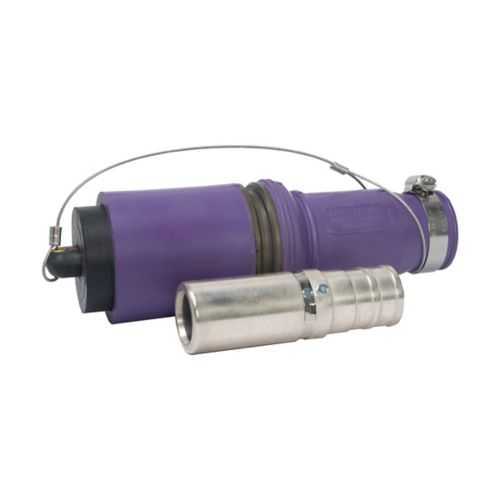

Eaton Crouse-Hinds E1049-59 Plug - 1000 Vac/dc
Part Number: E1049-59
Quick Summary
Eaton Crouse-Hinds Roughneck E1049-59 plug is a high-amperage connector designed for rugged power distribution in industrial environments. Engineers often wrestle with unreliable, high-current terminations that fail under vibration, moisture, or large-gauge cables; this plug delivers secure copper contacts, a durable rubber housing, and flexible termination options to mitigate those challenges. It aligns with NEC/CEC standards, carries a NEMA Rating of 3, and is suitable for ordinary/non-hazardous locations, enabling compliant and reliable connections. For users seeking efficiency, safety, and long-term cost savings, this solution combines high-current capability with straightforward installation and robust protection for demanding production lines and switchgear applications.
Product Information
Extended Description
E1049-59 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-59
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275934772
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-59
Feature: Supports large-gauge cables up to 535 kcmil. Business Impact: Enables continuous operation at up to 898 A, reducing the need for parallel terminations and lowering total cost of ownership. Application: Feeder connections and motor leads in heavy-duty power distribution. Feature: 1000 Vac/dc rating. Business Impact: Delivers safe, versatile performance for mixed AC/DC systems, minimizing voltage-related maintenance and insulation concerns. Application: General purpose power plugs in non-hazardous industrial spaces. Feature: Copper contact material in a rubber housing. Business Impact: Ensures low contact resistance and durable sealing against moisture and vibration, improving reliability and reducing downtime. Application: Harsh manufacturing environments with frequent start/stop cycles. Feature: Hexagon crimp or solder connection. Business Impact: Provides installation flexibility for field technicians, speeding up commissioning and reducing field error rates. Application: On-site terminations for large-gauge cables with varied skill sets. Feature: Gray rubber enclosure with a female gender. Business Impact: Clear mating interfaces and durable, weather-resistant housing support consistent performance across shifts. Application: Roughneck plug assemblies in ordinary/non-hazardous locations. Feature: NEC/CEC compliance and NEMA Rating 3. Business Impact: Aligns with regulatory requirements and outdoor protection standards, lowering compliance risk and enabling broad deployment. Application: Industrial facilities needing compliant, non-hazardous location connectivity. Industry context: This E1049-59 plug is part of a high-amperage Roughneck family optimized for heavy electrical feeders, where installation speed, reliability, and field adaptability translate directly into uptime and energy efficiency.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-59
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-59?
Enquire Now
FAQs
Yes, the E1049-59 supports hexagon crimp or solder terminations with copper contacts. The rubber housing provides durability in harsh environments, and the connector is sized for up to 535 kcmil conductors, enabling reliable field upgrades or replacements without rework.
The plug is rated for up to 898 A continuous current and 1000 Vac/dc. It accommodates 535 kcmil cables, making it suitable for high-current feeders and motor connections in demanding industrial settings.
Designed for ordinary/non-hazardous locations, the E1049-59 complies with NEC/CEC guidelines and carries a NEMA Rating 3. It’s ideal for heavy-duty power distribution in clean, non-hazardous environments such as manufacturing floors and controlled switchgear areas.
The E1049-59 is NEC/CEC-compliant and carries a NEMA Rating of 3. It is intended for ordinary/non-hazardous locations, aligning with standard industrial electrical installation practices.
Eaton provides downloadable literature including the Roughneck brochure, catalog page, installation sheets (IF 1777/IF 1778), and the E1049-59 specification sheet to guide selection, installation, and compliance.
