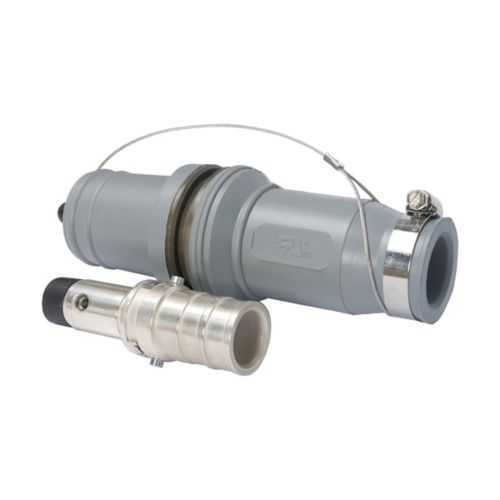

Eaton E1049-6 Plug - NEMA 3, 1000 Vac/dc, 535 kcmil
Part Number: E1049-6
Quick Summary
The E1049-6 plug provides high-amperage power connections for rugged industrial applications. A common challenge is achieving reliable, secure terminations at high current without costly rework or insulation damage from improper crimping or soldering. This plug supports NEC/CEC compliance and carries a NEMA 3 rating for ordinary/non-hazardous locations, making it suitable for outdoor and harsh indoor environments. With 535 kcmil copper conductors and a 1000 Vac/dc rating, it delivers durable performance under demanding conditions. The combination of rubber housing and copper contacts fortifies resilience while maintaining ease of installation. Using hexagon crimp or solder connections minimizes downtime and simplifies field maintenance, delivering measurable business value through uptime and safety improvements.
Product Information
Extended Description
E1049-6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, White, Hexagon crimp or solder, Copper contacts, Male, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-6
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275136589
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-6
Rugged rubber housing paired with copper contacts delivers durable environmental protection and reliable conductivity, reducing heat buildup and corrosion. This translates to longer service life and lower maintenance costs in demanding facilities. Designed for Roughneck power distribution, it suits outdoor exposure and vibration-prone environments. Feature: 535 kcmil conductor compatibility with an 898A continuous rating. Business impact: supports large feeders, reducing the need for multiple smaller connectors and enabling more efficient panel layouts. Application: heavy-duty feeders in manufacturing or mining settings. Feature: 8.5 in length, 2.16 in width, 2.16 in height, and 5.5 lb weight. Business impact: easier handling, fit verification, and predictable installation tooling in constrained or tight spaces. Application: field pulls and service conduits where space is at a premium. Feature: Hexagon crimp or solder termination. Business impact: flexible installation options with common tooling, minimizing special-purpose equipment and training. Application: both shop fabrication and on-site terminations. Feature: NEC/CEC compliance and NEMA 3 rating. Business impact: regulatory confidence and outdoor/indoor versatility across facilities. Application: building services, data centers, and process plants handling non-hazardous environments. Feature: Up to 898 A continuous, 1000 Vac/dc. Business impact: high-current reliability reduces the need for parallel connections, lowering total installed cost. Application: heavy power feeds to motors, pumps, and large equipment in industrial settings.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-6?
Enquire Now
FAQs
The E1049-6 accommodates 535 kcmil conductors and utilizes hexagon crimp or solder terminations. This provides a robust, low-resistance connection suitable for up to 898 A continuous. For best results, use the recommended crimp tooling and follow the IF 1777 instruction guidelines to ensure reliability during field or shop terminations.
Yes. The E1049-6 meets NEC/CEC standards and carries a NEMA 3 rating, making it appropriate for ordinary/Non-Hazardous Locations. This pairing supports regulatory compliance while enabling outdoor and rugged indoor use without special enclosure requirements.
Key considerations include ensuring proper hex crimp or solder terminations, verifying conductor size (535 kcmil) and the 1000 Vac/dc voltage rating, and confirming the assembly length (8.5 in) and overall dimensions fit the intended enclosure. Refer to IF 1777 installation sheets for step-by-step guidance and safety notes.
With up to 898 A continuous rating and 535 kcmil copper conductors, this plug supports large feeders and reduces the number of required connectors. The rubber housing and copper contacts deliver durable, efficient current transfer with reliable insulation, improving uptime and enabling safer, longer service life under demanding industrial conditions.
Official resources include the Roughneck brochure, catalog page, IF 1777 installation sheets, and the E1049-6 specification sheet. These assets provide electrical ratings, dimensions, mating configurations, and step-by-step installation guidance to support procurement and field implementation.
