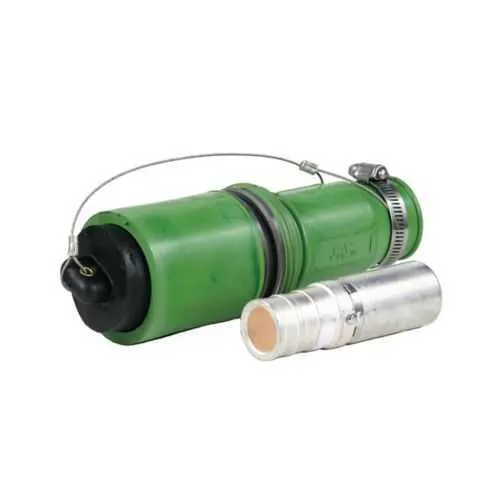

Eaton Crouse-Hinds E1049-60 Plug - NEC/CEC
Part Number: E1049-60
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049-60 plug is a high-current female connector designed for up to 646 kcmil conductors and continuous operation at 1009 A. This rugged plug helps you maintain reliable power delivery in demanding industrial environments. For engineers and procurement specialists, the challenge is delivering robust connections that survive vibration, oils, and moisture without downtime. The E1049-60 meets NEC/CEC requirements and NEMA 3 enclosure expectations, with ordinary/non-hazardous location suitability. By leveraging copper contacts in a rubber housing with hexagon crimp or solder terminations, this component supports efficient field assembly, safer maintenance, and reduced total cost of ownership over the equipment lifecycle. It aligns with Roughneck line standards while enabling scalable, high-amperage installations.
Product Information
Extended Description
E1049-60 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Black, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-60
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275136596
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-60
Feature → Business Impact → Application: The E1049-60 uses copper contacts inside a durable rubber housing, delivering low-contact resistance and long-term reliability, which translates to reduced maintenance cycles and fewer unscheduled outages on heavy feeders. This improves uptime for critical processes and lowers lifecycle costs in plants with frequent motor starts and high inrush scenarios. Feature → Business Impact → Application: Copper contact material paired with hexagon crimp or solder connections simplifies field termination, accelerating install times and reducing labor costs while ensuring solid, vibration-resistant joints in wiring closets and switchgear. Feature → Business Impact → Application: The 646 kcmil cable size and 1000 Vac/dc rating enable comfortable headroom for large feeders, enabling engineers to design with throughput margins that mitigate voltage drop and transient spikes under load. Feature → Business Impact → Application: Up to 1009A continuous rating provides a reliable solution for high-amperage circuits in ordinary/non-hazardous locations, aligning with NEC/CEC requirements and improving compliance. Feature → Business Impact → Application: The Roughneck E1049-60’s rugged rubber construction and black finish offer environmental sealing and ease of identification, supporting maintenance teams in demanding plants, including those with oily floors and temperature variations. Feature → Business Impact → Application: Availability of installation documents (IF1777/IF1778, brochure, datasheet) accelerates training for technicians and reduces commissioning risk, ensuring consistent best-practice termination in panel, cabinet, or field junctions. Feature → Business Impact → Application: The product’s NEMA 3 rating and ordinary location classification give engineers confidence for outdoor enclosures and non-hazardous indoor areas, helping specifiers meet safety and compliance targets while simplifying sourcing across projects.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-60?
Enquire Now
FAQs
The E1049-60 is designed for copper contact termination via hex crimp or solder. Start by selecting 646 kcmil copper conductors, trim to the recommended length, and follow the IF1777/IF1778 installation sheets for proper crimping or soldering technique. Use the rubber housing to seal against contaminants and thread the connector into the mating receptacle to ensure full engagement and a secure, vibration-resistant connection.
Yes. The E1049-60 carries NEC/CEC standards type and a NEMA Rating of 3, suitable for ordinary/non-hazardous locations. This makes it appropriate for non-hazardous indoor or outdoor installations, provided enclosure protection and IP considerations meet application needs. Always verify project-specific codes and local amendments during design.
The plug supports up to 646 kcmil cable with an amperage rating up to 1009 A continuous. This makes it ideal for high-current feeders and large-motor circuits where space constraints or environmental factors demand robust, high-capacity connectors.
Benefits include copper contact materials for low resistance and longevity, a rubber housing for environmental resilience, and hex crimp or solder termination options for secure field connections. Combined with a 1000 Vac/dc rating and up to 1009 A, these features reduce downtime, simplify maintenance, and lower life-cycle costs in demanding industrial settings.
You can access the Roughneck E1049 series installation sheets (IF 1777 and IF 1778), brochures, and the datasheet from Eaton’s site. These documents provide step-by-step termination guidance, wiring recommendations, safety notes, and performance specifications to support compliant installation and commissioning.
