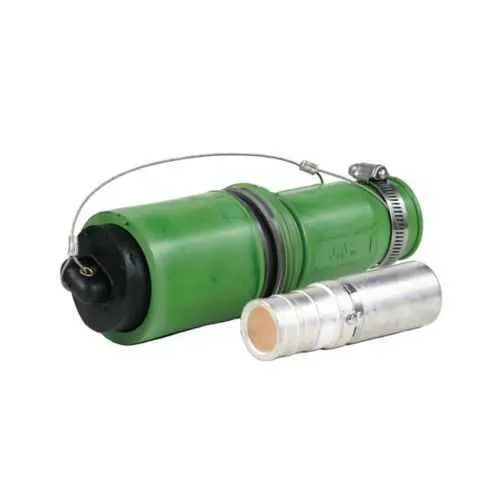

Eaton Crouse-Hinds E1049-65 Plug - Up to 1009A, 1000 Vac/dc
Part Number: E1049-65
Quick Summary
The Eaton Crouse-Hinds E1049-65 plug delivers high-current, robust power connections for Roughneck enclosures in industrial wiring applications. Designers frequently battle unreliable terminations for large cables in demanding, non-hazardous environments, risking downtime. This plug is listed for Ordinary/Non-Hazardous Locations, complies with NEC/CEC standards, and carries a NEMA 3 rating for reliable outdoor or damp-area use. For broader Wiring & Connectivity strategies, this Roughneck plug offers dependable, scalable high-amperage connections that reduce maintenance costs and downtime. Engineers appreciate easy field termination options, including hexagon crimp or solder, with compatibility to 646 kcmil cables. This translates to faster installs and lower total ownership costs.
Product Information
Extended Description
E1049-65 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, White, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-65
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275136640
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-65
High-current capability up to 1009A continuous and support for 646 kcmil cable is a core asset. This feature translates to fewer parallel terminations and simplified panel design, reducing assembly time and potential contact resistance issues. It finds immediate application in heavy-duty power distribution for Roughneck enclosures in mining, oil and gas, and manufacturing plants. The combination of copper contact material and rubber housing supports reliable long-term performance in harsh industrial environments. Hexagon crimp or solder connections, with copper contacts, deliver low-resistance terminations and durable field-terminations. Business impact: improved reliability during start-up and reduced re-termination calls. Application: critical connections in high-vibration environments, where secure terminations matter. The option to choose hex crimp or solder provides installation flexibility when field conditions vary. Rubber housing in white color provides rugged protection against mechanical wear and environmental exposure. For business value, this supports longer service intervals and safer operation in Ordinary/Non-Hazardous Locations, meeting NEC/CEC and NEMA 3 requirements. The color and material choices help with visibility and thermal performance in crowded electrical rooms. This design supports consistent weather sealing and resistance to chemical exposure typical of industrial sites. Compact footprint and precise dimensions (8.5 in length, 3 in width and height) ease mounting in standard enclosures and reduce packing space. The documented 5.5 lb weight helps planning, shipping, and handling in field installations, improving logistics. The plug's female gender and copper contacts align with common mating receptacles, simplifying engineering drawings and BOM creation. The 3x3 inch footprint also enables multiple units to fit side-by-side in compact panels. Availability of official installation instructions and specification sheets speeds engineering approval and commissioning; this reduces project risk and ensures code-compliant installations, delivering faster time-to-value for capital projects.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-65
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-65?
Enquire Now
FAQs
Use either hexagon crimp or solder terminations for the E1049-65, with copper contacts to ensure low resistance and long-term reliability. Follow the IF 1778 instruction sheets for step-by-step procedures, torque guidelines, and inspection criteria to certify a compliant, vibration-resistant connection in Roughneck assemblies.
Yes. The E1049-65 is rated for Ordinary/Non-Hazardous Locations and bears a NEMA 3 designation, making it appropriate for outdoor or damp-area installations. This combination supports safer operation in weather-exposed electrical rooms and harsh industrial sites while maintaining NEC/CEC compliance.
The E1049-65 plug is rated up to 1009A continuous and supports a voltage of 1000 Vac/dc. When paired with 646 kcmil cables and copper contacts, it delivers a robust, high-current termination suitable for demanding feeders and distribution paths in non-hazardous environments.
The plug adheres to NEC/CEC standards and is intended for Ordinary/Non-Hazardous Locations. It is also associated with a NEMA 3 rating, which ensures weather resistance for outdoor or damp conditions, supporting compliance across typical North American electrical installations.
By delivering secure, long-lasting hex crimp or solder terminations on 646 kcmil copper conductors, the E1049-65 reduces field re-terminations and startup issues, lowering maintenance costs and downtime. Its rugged rubber housing and high-current capability translate to faster installations, longer service intervals, and improved lifecycle value for capital projects.
