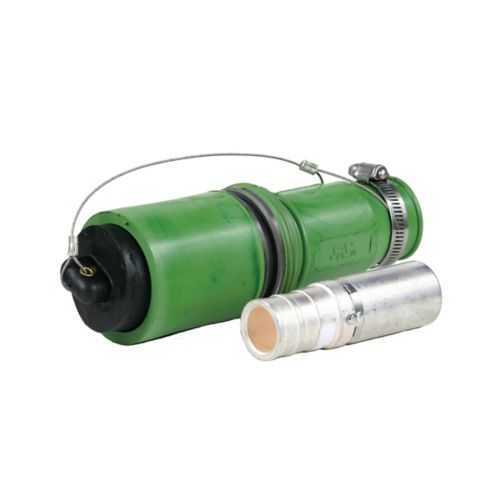

Eaton Crouse-Hinds E1049-66 Plug - 1000 Vac NEC/CEC NEMA 3
Part Number: E1049-66
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug delivers rugged high-current power connections for demanding industrial applications. When large gauge cables must tolerate vibration, moisture, and frequent maintenance, a reliable plug is essential to prevent downtime. This design supports Ordinary/Non-Hazardous Locations and complies with NEC/CEC while carrying a NEMA 3 rating for outdoor or harsh environments. With up to 1009A continuous and 646 kcmil capacity, the E1049-66 pairs with Roughneck systems for fast, secure field installation. The blue rubber housing and copper contacts deliver low resistance and long service life, helping maintenance teams reduce shock risk and rework while improving overall equipment reliability.
Product Information
Extended Description
E1049-66 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-66
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275136657
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-66
High amperage capability is a core feature. Business impact: It supports up to 1009A continuous, enabling direct connections for large motors and feeders without intermediate splices. Application: suitable for heavy-load distribution in manufacturing lines, reducing downtime and improving overall line efficiency. Large cable size support of 646 kcmil allows installers to terminate substantial conductors with fewer terminations, cutting installation time and potential failure points in feeders and power drops. Flexible termination options include hexagon crimp or solder connections, which provides installation versatility in both controlled shop environments and on-site field service, reducing tool requirements and avoiding schedule delays. Durable rubber housing and copper contacts ensure low resistance and robust performance in dusty or wet plant conditions, extending service life and lowering maintenance costs. The 1000 Vac/dc rating, blue housing, and compatibility with NEC/CEC standards deliver predictable performance across AC and DC power distribution, while NEMA 3 protection supports outdoor and semi-exposed installations. As part of the Roughneck family, this plug scales with other E1049 components, enabling scalable, turnkey power networks across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-66?
Enquire Now
FAQs
The E1049-66 is designed for 646 kcmil conductors and supports hexagon crimp or solder terminations. For crimping, use a compatible hex crimp tool sized for 646 kcmil copper conductors. For solder termination, ensure proper heat control to preserve insulation and conductor integrity. This flexibility enables field technicians to select the method that best fits their standard procedures and inventory while maintaining a robust, code-compliant connection.
The E1049-66 plug is rated up to 1009A continuous and supports a voltage of 1000 Vac/dc. This combination makes it suitable for high‑current distribution to large motors and feeders in industrial settings, allowing for fewer intermediate connections and improved efficiency.
Yes. The product carries a NEMA 3 rating and is specified for Ordinary/Non-Hazardous Locations, making it appropriate for outdoor or protected outdoor installations where weather and dust resistance are important, alongside NEC/CEC compliance for electrical safety.
The E1049-66 adheres to NEC/CEC standards and carries a NEMA 3 rating. These certifications confirm compliance with National Electrical Code requirements and suitable protection for moderate outdoor use, supporting safe, reliable operation in routine industrial environments.
Copper contacts provide low electrical resistance and durable terminations, while the rubber housing offers rugged impact and environmental resistance. These features collectively reduce routine maintenance, minimize contact resistance growth over time, and extend service life, delivering better total cost of ownership in high‑demand facilities.
