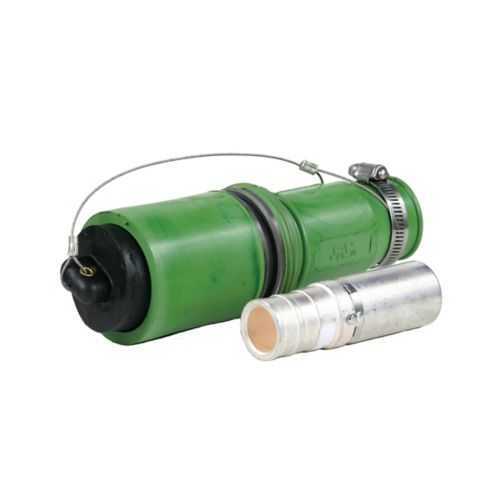

Eaton E1049-69 Plug - 1000 Vac/dc
Part Number: E1049-69
Quick Summary
The Eaton E1049-69 Plug is a rugged, high-amperage Roughneck connector designed for demanding power distribution in industrial facilities. Engineers often contend with terminations that fail under vibration, moisture, or oil exposure, driving costly downtime. This plug meets NEC/CEC standards, carries a NEMA 3 rating, and is suited for ordinary/non-hazardous locations, supporting safer, compliant installations. Designed for quick hex crimp or solder terminations, it handles up to 1009A continuous and 646 kcmil conductors, delivering reliable, long-life performance while reducing maintenance cycles for motor feeders and heavy-duty power circuits.
Product Information
Extended Description
E1049-69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-69
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275934819
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-69
High amperage capability and large conductor support enable reliable heavy-load terminations while reducing the need for parallel connections, improving installation efficiency and safety. Up to 1009A continuous current handling with 646 kcmil cable size translates to tangible electrical system savings and less cabinet congestion in motor control centers. The 1000 Vac/dc rating paired with copper contacts and a rubber housing provides robust insulation and weather resistance, minimizing dielectric failures in typical plant environments and extending connector life. Hexagon crimp or solder termination options offer installation flexibility, helping electricians choose the fastest, most secure method for given field conditions. The Roughneck design, with NEMA 3 protection and ordinary/non-hazardous location suitability, supports durable performance in non-hazardous settings without resorting to explosion-proof solutions. Its compact form (8.5 in x 3 in x 3 in) and 5.5 lb weight streamline handling and field replacement, while universal compatibility with existing Roughneck accessories simplifies spares management.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-69?
Enquire Now
FAQs
The E1049-69 supports up to 646 kcmil conductors with a copper contact set, designed for heavy-current power distribution and motor feeder applications. Termination can be achieved via hex crimp or solder, ensuring a reliable, low-resistance connection.
This plug is specified for Ordinary/Non-Hazardous Locations and carries a NEMA 3 rating, making it ideal for non-hazard plant environments. For hazardous locations, consult explosion-proof or different-rated connectors.
Installation supports hexagon crimp or solder terminations, with a product length of 8.5 inches, width and height of 3 inches, and a weight of 5.5 pounds, enabling flexible handling and secure field terminations.
The E1049-69 complies with NEC/CEC standards and is rated for NEMA 3 protection, aligning with common building and electrical codes for non-hazardous industrial settings.
By supporting up to 1009A continuous and 646 kcmil conductors with reliable copper contacts in a rugged rubber housing, it reduces downtime, simplifies maintenance scheduling, and lowers spares inventory through compatibility with the Roughneck family.
