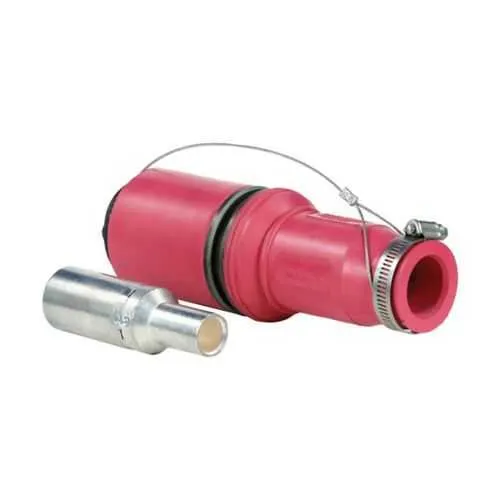

Eaton Crouse-Hinds E1049-80 Roughneck Plug - Up to 636A
Part Number: E1049-80
Quick Summary
Eaton Crouse-Hinds Roughneck E1049-80 plug is a high-amperage, rubber-bodied female connector designed for heavy industrial power distribution. This rugged solution addresses downtime and unreliability in harsh environments by delivering robust, field-installable connections. It aligns with NEC/CEC standards and carries a NEMA 3 rating for outdoor and weather-exposed applications, supporting safe operation in ordinary/non-hazardous locations. The combination of copper contacts and a durable rubber housing helps ensure long-term performance while enabling compatible hexagon crimp or solder terminations. For engineers and procurement teams, this plug offers reliability, ease of installation, and a clear pathway to compliant, cost-efficient power distribution in demanding plant environments.
Product Information
Extended Description
E1049-80 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Black, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-80
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275136770
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Eaton Specification Sheet - E1049-80
Feature: Up to 636A continuous amperage rating. Business Impact: Enables direct high-current power distribution without parallel connectors, reducing harness complexity and potential failure points. Application: Heavy machinery, motors, and distribution panels in steel mills and process plants. Feature: Cable size compatibility with 313 kcmil conductors. Business Impact: Supports large conductor sizes for fewer terminations and improved current carrying capacity. Application: Large-diameter feeder runs and feeder splices in non-hazardous industrial locations. Feature: Copper contact material. Business Impact: Improves conductivity and corrosion resistance for reliable long-term performance. Application: Critical power paths in harsh environments where vibration and exposure are common. Feature: Hexagon crimp or solder connection. Business Impact: Provides installation flexibility to technicians on-site, accelerating commissioning and maintenance. Application: Field service and OEM assembly where quick, secure terminations are required. Feature: Voltage rating of 1000 Vac/dc. Business Impact: Broad compatibility with both AC and DC systems, reducing inventory variety. Application: Power distribution panels, control circuits, and DC drive systems. Feature: Rubber housing with NEMA 3 enclosure rating. Business Impact: Enhances moisture resistance and weather tolerance, lowering maintenance costs in outdoor or damp environments. Application: Outdoor assemblies, workshop areas, and non-hazardous locations. Feature: Dimensional footprint and weight (8.5 in L, 3 in W/H, 5.5 lb). Business Impact: Manageable size and weight for straightforward handling and servicing, reducing labor time. Application: On-site installations and retrofit projects where space is constrained. These features collectively enable a reliable, compliant, and efficient high-amperage plug solution for industrial power distribution, supporting long-term total cost of ownership reductions while enabling smoother maintenance workflows and consistent electrical performance.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-80
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-80?
Enquire Now
FAQs
The E1049-80 supports hexagon crimp or solder terminations for 313 kcmil copper conductors, enabling flexible on-site installation. The rugged rubber housing provides additional protection against moisture and dust, improving long-term reliability in heavy industrial environments. This combination reduces labor time by allowing technicians to choose the quickest, most secure termination method for motor feeders and power distribution runs.
The E1049-80 is rated up to 636A continuous and accommodates 313 kcmil copper conductors. It carries a voltage rating of 1000 Vac/dc and uses copper contacts inside a rubber-sealed housing. These specs make it suitable for high-current distribution in both AC and DC applications, while meeting NEC/CEC requirements for non-hazardous locations.
Yes. The E1049-80 is intended for ordinary/non-hazardous locations and is rated to NEMA 3, which provides protection against dust and water intrusion in outdoor or damp environments. This makes it a reliable choice for outdoor equipment rooms, plant exteriors, and other non-hazardous industrial settings where weather resistance matters.
The E1049-80 complies with NEC/CEC standards and carries a NEMA 3 rating. It is designed for use in ordinary/non-hazardous locations, aligning with typical industrial power distribution requirements while ensuring reliability and regulatory compliance in manufacturing and processing facilities.
Long-term ROI is driven by high current capacity, durable copper contacts, and a rugged rubber housing that resists moisture and contamination. Installation flexibility with crimp or solder methods reduces commissioning time, while the robust construction lowers downtime and maintenance costs in demanding facilities. Expect fewer field failures and a longer service life for critical feeders and high-amperage connections.
