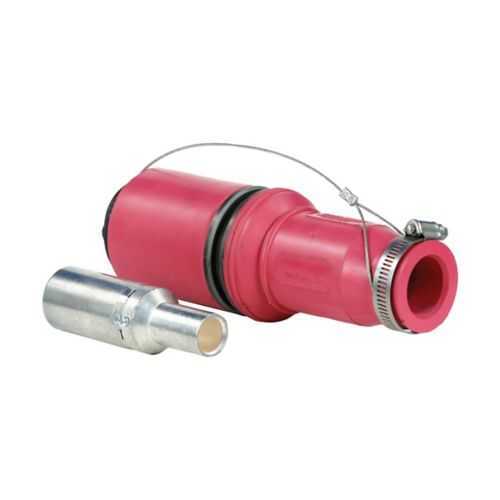

Eaton Crouse-Hinds E1049-81 Plug - 1000 Vac/dc
Part Number: E1049-81
Quick Summary
Eaton Crouse-Hinds E1049-81 plug is a high-amperage female connector designed for Roughneck applications in harsh industrial environments. Designers and maintenance teams often struggle with reliable terminations under vibration, oversized conductors, and the need for durable, weather-resistant assemblies. This plug aligns with NEC/CEC standards, supports a NEMA Rating 3 enclosure, and meets ordinary/non-hazardous location classifications for broad plant use. With copper contacts and a rubber housing, it enables easier field wiring and safer maintenance in power distribution and motor circuits, while offering hexagon crimp or solder terminations for flexible installation.
Product Information
Extended Description
E1049-81 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-81
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275901460
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-81
Feature: Up to 636A continuous amperage rating. Business Impact: Enables large-motor feeders and high-load circuits with fewer connectors, reducing potential bottlenecks and maintenance points. Application: Heavy machinery, pumps, and extrusion lines in industrial plants. Feature: Cable size compatible with 313 kcmil conductors. Business Impact: Supports large-diameter conductors with lower resistance, improving efficiency and voltage drop performance. Application: Control panels and feeder runs to high-capacity motors. Feature: 1000 Vac/dc voltage rating. Business Impact: Provides a robust, versatile solution for both AC and DC power systems, enhancing safety and compliance. Application: Plant-wide power distribution and DC drives. Feature: Termination options hexagon crimp or solder. Business Impact: Flexible installation approaches reduce commissioning time and tooling needs, improving field productivity. Application: On-site wiring and service upgrades in dynamic environments. Feature: Rubber housing with copper contacts. Business Impact: Durable, vibration-resistant terminations that resist moisture and contamination, lowering maintenance costs. Application: Outdoor or damp-industrial settings in ordinary/non-hazardous zones. Feature: Yellow color coding. Business Impact: Quick identification in complex assemblies reduces mis-wiring risk. Application: Panel labeling and color-coded power distribution banks. Feature: NEMA 3 enclosure capability and compliance with NEC/CEC. Business Impact: Supports outdoor and semi-outdoor installations with regulatory alignment, minimizing retrofit needs. Application: Outdoor substations, loading docks, and manufacturing floors.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-81
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-81?
Enquire Now
FAQs
The E1049-81 supports hexagon crimp or solder terminations for 313 kcmil copper conductors. Use the appropriate crimp tool for a secure connection or an approved soldering method per IF 1777 installation sheets. Ensure the copper conductors are prepared to the correct length and seats fully in the contact cavity to prevent hot spots or arcing. The rubber housing provides environmental sealing, and follow the recommended torque and seating guidelines during termination to maintain current capability and voltage rating.
The E1049-81 is rated for up to 636A continuous current and a voltage of 1000 Vac/dc. It is designed for 313 kcmil copper conductors with a female contact configuration. This high-amperage capability supports large motors and feeders, while the 1000 Vac/dc rating allows use across mixed AC and DC power systems in industrial settings.
Yes. The plug is classified for Ordinary/Non-Hazardous Locations and conforms to NEC/CEC standards with a NEMA 3 rating, enabling outdoor or semi-exposed installations subject to moisture or dust. This makes it suitable for loading docks, outdoor panels, and general industrial environments without specialized hazardous-area equipment.
Industries such as manufacturing, mining, material handling, oil and gas infrastructure, and heavy equipment fleets benefit from the E1049-81. Its 313 kcmil conductor capacity and 636A rating support large motor drives and power distribution circuits, while the rugged rubber housing and copper contacts ensure long-term reliability in vibration-heavy settings and outdoor environments.
Expect reduced maintenance points due to a rugged rubber housing and robust copper contacts that resist wear in vibration and moisture. The option for hexagon crimp or solder terminations speeds installation and reduces downtime. Fewer connectors and durable terminations translate to lower lifecycle costs and improved uptime for critical motor and feeder circuits.
