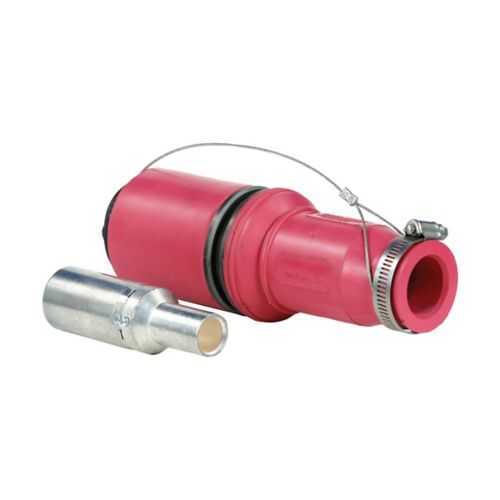

Eaton Crouse-Hinds E1049-85 Roughneck plug - 1000 Vac
Part Number: E1049-85
Quick Summary
Eaton Crouse-Hinds Roughneck E1049-85 plug provides rugged, high-current power connections for demanding industrial enclosures. Engineers often confront overheating, unreliable terminations, and slow field assembly in harsh environments; this plug is designed to mitigate those pain points with durable construction and simple installation. It carries NEC/CEC compliance and a NEMA Rating 3 enclosure protection, suitable for ordinary/non-hazardous locations, ensuring safer operation. By supporting up to 313 kcmil cables and continuous current up to 636 A, it helps reduce panel footprint, installation time, and total project cost while delivering dependable, long-term performance in demanding settings. This combination of high amperage capability and robust construction makes it a practical choice for high-demand industrial power distribution.
Product Information
Extended Description
E1049-85 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, White, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-85
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275857606
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-85
Feature: High amperage capability up to 636A continuous. Business Impact: Enables larger feeder circuits and less frequent terminations, reducing panel counts and labor costs. Application: Heavy machinery and industrial enclosures where large conductor sizes are required. Feature: Cable size support up to 313 kcmil copper conductors. Business Impact: Maximizes conductor utilization and minimizes voltage drop in high-load applications. Application: Substation-grade feeders and high-current distribution in manufacturing lines. Feature: Voltage rating of 1000 Vac/dc. Business Impact: Broadens compatibility with both AC and DC power systems, improving design flexibility. Application: Mixed-power assemblies and control panels in process environments. Feature: Connection options hexagon crimp or solder. Business Impact: Provides secure, low-resistance terminations with compatible tooling, reducing maintenance needs. Application: Field assemblies and retrofit projects with copper contacts. Feature: Rubber housing with copper contacts (female). Business Impact: Durable, vibration-resistant seals and reliable mating, enhancing protection in harsh settings. Application: Outdoor and wash-down areas or damp environments. Feature: Color white and rugged construction. Business Impact: Improves visibility and reduces misconnection risk in busy industrial spaces. Application: Enclosures with multiple plug-in connections in material handling or packaging facilities. Feature: Compliance with NEC/CEC and NEMA Rating 3. Business Impact: Demonstrates reliability and regulatory alignment, easing audits and approvals. Application: Facilities requiring non-hazardous location compliance and robust enclosure protection.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-85
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-85?
Enquire Now
FAQs
The E1049-85 supports hexagon crimp or solder copper contacts, enabling secure terminations for 313 kcmil conductors. To maximize reliability, use the correct crimp tooling and follow the manufacturer’s instructions for tension and seating depth. This ensures low contact resistance and reduces maintenance calls in high-current applications.
This plug provides up to 636A continuous current and accepts 313 kcmil copper conductors, with a voltage rating of 1000 Vac/dc. These specs support heavy power distribution in industrial enclosures, delivering reliable performance in both AC and DC systems.
The E1049-85 is intended for ordinary/non-hazardous locations and complies with NEC/CEC standards. It carries a NEMA Rating of 3, making it suitable for typical indoor and protected outdoor environments where robust protection against moisture and dust is required.
Common applications include high-amperage feeders and power distribution in industrial enclosures, data centers, mining, and manufacturing plants. The plug supports large conductor sizes and high current, enabling compact, efficient power junctions and simplifying retrofits or upgrades in existing installations.
Key considerations include using the correct hex crimp tools or soldering procedures for copper contacts, ensuring clean cable preparation, and verifying proper seating in a rubber housing for environmental sealing. These steps reduce resistance, prevent premature failures, and shorten commissioning time, delivering a faster return on investment.
