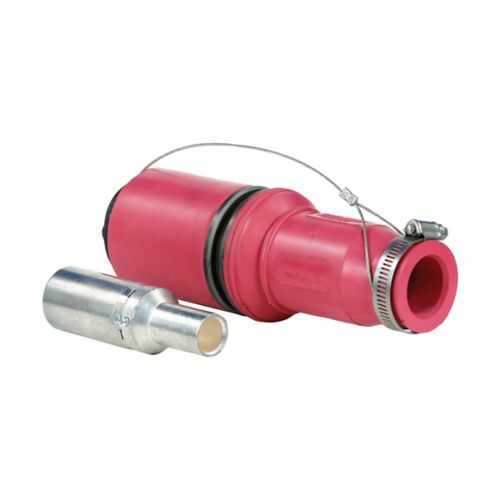

Eaton Crouse-Hinds E1049-86 Plug - Roughneck NEMA 3
Part Number: E1049-86
Quick Summary
The Eaton Crouse-Hinds E1049-86 plug is a rugged, high-amperage power connector designed for Roughneck applications in industrial facilities. Engineers often struggle to source connectors that survive frequent terminations and harsh environments without compromising safety or uptime. This plug aligns with NEC/CEC standards, carries a NEMA 3 rating for outdoor use, and is suited for ordinary/non-hazardous locations. With 313 kcmil cables, up to 636 A continuous, and a 1000 Vac/dc rating, it supports quick hex-crimp or solder terminations while enabling scalable, maintenance-friendly power distribution. Additionally, the blue rubber housing and copper contacts provide durable sealing and low contact resistance, supporting long service life in demanding environments.
Product Information
Extended Description
E1049-86 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Female, Rubber, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049-86
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275901484
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Eaton Specification Sheet - E1049-86
Feature → High amperage and conductor size: Up to 636 A continuous with 313 kcmil conductors. Business Impact → Enables bulk power feeds to motors and feeders with fewer components, reducing installation time and total cost of ownership. Application → Ideal for heavy-duty motor control, drives, and large feeders in non-hazardous environments. Feature → High voltage rating and durable contacts: 1000 Vac/dc with copper contacts in a rubber housing. Business Impact → Lower resistance, improved insulation, and reduced heat buildup for stable performance. Application → Suitable for load transients in conveyors, presses, and process lines. Feature → Flexible termination options: Hexagon crimp or solder termination. Business Impact → Simplifies field installs and retrofits while maintaining vibration resistance. Application → Useful across new builds and maintenance projects in industrial facilities. Feature → Compliance and location suitability: NEC/CEC with NEMA 3 rating for ordinary/non-hazardous locations. Business Impact → Ensures regulatory compliance and safe outdoor operation. Application → Outdoor panels, enclosures, and process lines. Feature → Practical form factor: 8.5 in length, 3 in width, 3 in height, 5.5 lb weight. Business Impact → Easier handling, mounting, and service in restricted spaces. Application → Plant floors, control rooms, and compact equipment housings.
Get a Quick Quote for a Eaton Crouse-Hinds E1049-86
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049-86?
Enquire Now
FAQs
Installing the E1049-86 requires following the official Roughneck installation sheets. Use hexagon crimp or solder termination with copper contacts, ensuring a proper fit for 313 kcmil conductors. Refer to IF 1777 and IF 1778 instruction sheets for step-by-step guidance, torque specifications, and approved tooling to ensure a safe, compliant connection in ordinary/non-hazardous locations.
The E1049-86 is rated up to 636 A continuous with a 313 kcmil conductor size and a voltage rating of 1000 Vac/dc. This combination supports heavy-duty power feeds for motors, drives, and feeders while maintaining reliable insulation and low resistance at load transients.
Best suited for ordinary/non-hazardous locations, the E1049-86 carries a NEMA 3 rating and NEC/CEC certification, making it appropriate for outdoor enclosures and non-hazardous indoor installations. It accepts 313 kcmil copper conductors and is designed for high-current applications such as heavy motor control, process lines, and large feeders.
This Roughneck plug complies with NEC/CEC standards and has a NEMA Rating of 3 for weather resistance. Its area classification is Ordinary/Non-Hazardous Locations, and it uses copper contacts within a rubber housing to ensure reliable insulation and low contact resistance across demanding industrial duty cycles.
Eaton offers brochures, catalog pages, installation instructions, and a product datasheet for the E1049-86, including IF-1777 and IF-1778 guidance. Access these resources for installation best-practices, lifecycle planning, and retrofit planning to reduce downtime and extend the service life of Roughneck high-amperage connectors.
