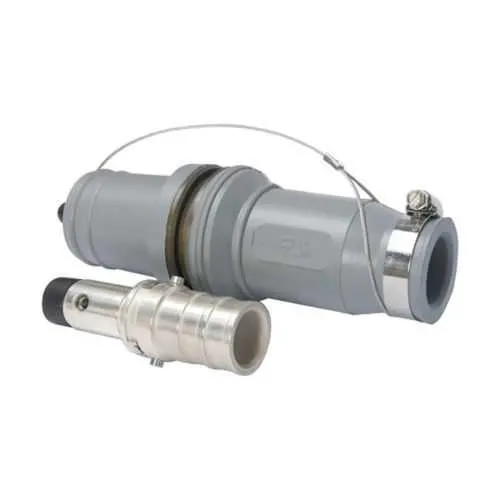

Eaton Roughneck E1049X-10 plug - Zone 2 rated
Part Number: E1049X-10
Quick Summary
The Eaton Roughneck E1049X-10 plug delivers rugged, high-current power connections for hazardous-location motor and distribution circuits. Operators often struggle with unreliable terminations in Zone 2 environments, where improper seals or heat buildup trigger downtime. It carries IECEx/ATEX and NEC Class I, Division 2 certifications, IP54 protection, and a NEMA 3R enclosure rating to support compliance and reliability. Engineered for long service life in tough environments, this plug integrates with Roughneck family accessories for scalable power networks, reducing installation time and spare-parts costs. With 535 kcmil conductor compatibility and up to 898 A continuous, it offers a clear business case for upgrading aging connections.
Product Information
Extended Description
E1049X-10 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-10
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275964601
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature: High current capability supports up to 898 A continuous and 1000 Vac/dc. Business Impact: Enables reliable power delivery for large motors and high-demand equipment, reducing downtime and expanding factory uptime. Application: Heavy industrial motor control centers and large pumps in hazardous locations. Feature: 535 kcmil cable size with copper contacts. Business Impact: Maintains low contact resistance and durable performance, lowering maintenance frequency and energy losses. Application: Field-terminated power paths in mining, refining, and chemical processing. Feature: Hexagon crimp or solder connection options. Business Impact: Flexible installation strategies for field technicians, speeding up commissioning and reducing specialized tooling needs. Application: On-site terminations in rugged plant environments. Feature: Rubber housing with IP54 and NEMA 3R protection. Business Impact: Enhanced environmental sealing and resilience against dust, moisture, and incidental impacts, improving long-term reliability. Application: Zone 2 hazardous locations, weather-exposed installations. Feature: IECEx/ATEX and NEC Class I, Division 2 compliance. Business Impact: Demonstrates regulatory alignment, simplifying project approvals and reducing certification risk. Application: Global hazardous-location projects requiring cross-standards compatibility.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-10?
Enquire Now
FAQs
The E1049X-10 supports 535 kcmil copper conductors with hexagon crimp or solder terminations, enabling compatibility with common Roughneck assemblies and straightforward field terminations, which reduces project schedule risk and training requirements.
It carries IECEx/ATEX and NEC Class I, Division 2 certifications, Zone 2 hazardous location rating, IP54 ingress protection, and a NEMA 3R enclosure, ensuring compliance across multiple international standards for hazardous environments.
Yes. It is rated up to 898 A continuous and 1000 Vac/dc, with 535 kcmil cable capacity and copper contacts, making it ideal for large motors and high-load power distribution in demanding facilities.
The plug supports up to 535 kcmil conductors. It measures 8.5 inches in length, with a 2.16 inch width and height, and weighs about 1 pound for manageable field handling.
Large-motor feeders, pumps, and power distribution panels in Zone 2 hazardous areas such as chemical plants, refineries, and mining operations benefit from the rugged, compliant, and reliable performance of the E1049X-10.
