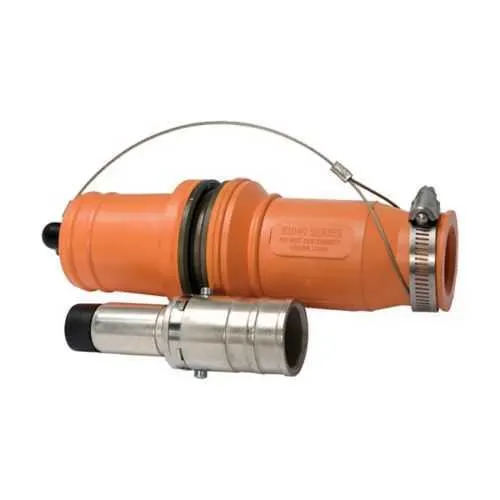

Eaton Crouse-Hinds E1049X-12 Plug - Zone 2 Rated
Part Number: E1049X-12
Quick Summary
Eaton Crouse-Hinds E1049X-12 plug provides rugged high-amperage connections for hazardous-location motor circuits. Operators often struggle with maintaining reliable, code-compliant plugs in Zone 2 environments, where misalignment, moisture ingress, or improper termination can trigger costly downtime. It carries IECEx/ATEX Zone 2 and NEC Class I, Division 2 ratings, plus IP54 protection and a NEMA 3R enclosure to support safe, durable operation across diverse facilities. Designed for harsh industrial settings such as chemical processing, oil and gas, and mining, it also offers easy field termination with hexagon crimp or solder. For procurement and uptime, this plug pairs with 646 kcmil cables and copper contacts, while a rubber housing resists abrasion and exposure, reducing maintenance costs and extending service life.
Product Information
Extended Description
E1049X-12 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-12
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275961815
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Up to 1009A continuous with 646 kcmil cable compatibility. Business Impact: Enables high-load motor feeders without frequent splices or replacements, reducing downtime and overall wiring costs. Application: Heavy-duty conveyors, pumps, and processing equipment in large facilities. The combination of amperage capacity and cable size supports robust power delivery in demanding environments. Feature: Zone 2 hazardous location rating with IECEx/ATEX and NEC Class I, Division 2 compliance. Business Impact: Ensures regulatory conformity and safer installations, minimizing risk of non-compliance penalties and operational interruptions. Application: Chemical plants, refineries, and mining sites requiring proven zone classifications. Feature: IP54 protection and NEMA 3R enclosure. Business Impact: Provides reliable performance against dust ingress and water exposure, enabling outdoor and semi-enclosed use while maintaining integrity. Application: Outdoor equipment rooms and exposed industrial locations. Feature: Hexagon crimp or solder termination with copper contacts. Business Impact: Delivers flexible installation options and durable, low-impedance connections, reducing thermal stress and maintenance. Application: On-site terminations in field or shop environments. Feature: Rubber housing with rugged, yellow finish and 646 kcmil copper contact interface. Business Impact: Enhances durability, vibration resistance, and visibility, supporting long service life and easier inspections. Application: Vibration-heavy machinery and high-traffic electrical racks in hazardous zones.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-12?
Enquire Now
FAQs
Install with appropriate hazardous-area procedures. Terminate copper conductors using hexagon crimp or solder as specified, ensure proper seating and sealing, and verify IP54/NEMA 3R protection. Use compatible 646 kcmil cable and confirm the connector is wired to the equipment per NEC/IECEx/ATEX guidelines to maintain safe operation.
The E1049X-12 supports up to 1009 A continuous with 646 kcmil cable when used with compatible roughneck plugs. This enables high-load motor feeders and reduces the need for splices, contributing to lower installation costs and improved system reliability.
Yes. The plug features IP54 protection and a NEMA 3R enclosure, making it suitable for outdoor use and locations where dust, water spray, or light rain exposure could occur, while maintaining electrical integrity.
It carries IECEx/ATEX Zone 2 ratings and NEC Class I, Division 2 classifications for hazardous locations, along with NEMA 3R and IP54 requirements. These certifications support compliance across global facilities in chemical, oil/gas, and mining industries.
The E1049X-12 reduces downtime through a durable rubber housing, copper contacts, and field-terminable options (crimp or solder). Its high current rating and rugged design minimize spares, splicing, and maintenance costs, delivering a lower total cost of ownership in demanding industrial environments.
