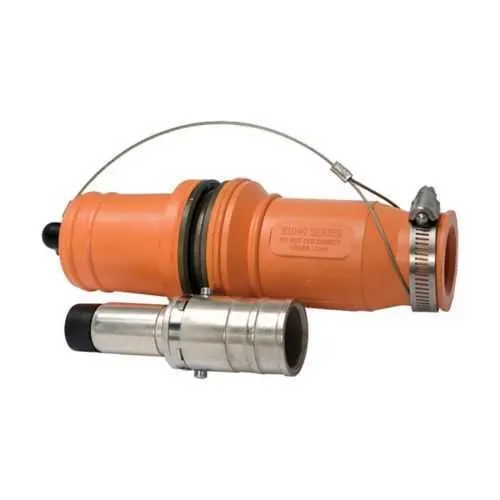

Eaton Crouse-Hinds E1049X-15 Plug - Zone 2 Rated
Part Number: E1049X-15
Quick Summary
The Eaton Crouse-Hinds E1049X-15 plug is a high-amperage connector for hazardous locations used in industrial power distribution. Maintenance teams often struggle with reliable terminations, proper zone classification, and protecting equipment from dust, moisture, and explosive vapors. This plug carries Zone 2 (IECEx/ATEX) and Class I, Division 2 ratings, plus IP54 ingress protection and a NEMA 3R enclosure rating, helping ensure compliant installation and safer operation. Designed for large cables and demanding environments, it supports hexagon crimp or solder terminations while delivering robust performance and long-term cost savings in oil & gas, chemical processing, and other heavy industries.
Product Information
Extended Description
E1049X-15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Green, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-15
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275961846
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
High amperage capability up to 1009 A continuous and 646 kcmil cable termination provides a single connector for large power feeds, reducing junction points and potential fault sources in critical systems. This translates to shorter install times and improved system reliability for motors, feeders, and process skids. The rugged rubber body with copper contacts delivers durable, vibration-resistant connections that stand up to chemical exposure and moisture, lowering maintenance cycles and replacement costs. Hexagon crimp or solder termination offers flexible field installation and compatibility with existing lugs and tools, streamlining retrofits and new builds alike. Ingress protection IP54 and NEMA 3R enclosure rating protect against dust and water ingress, supporting uptime in outdoor and wet environments. Compatibility with the Roughneck ecosystem simplifies procurement and spares management while maintaining NEC/CEC and IECEx/ATEX compliance for compliant project documentation. These design choices support energy efficiency, reduced downtime, and faster commissioning in hazardous locations such as refineries, mining sites, and chemical plants.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-15?
Enquire Now
FAQs
Install the E1049X-15 by securing the cable with a hexagon crimp or solder termination as specified, ensuring the rubber body seats fully and the copper contacts are clean and torqued to manufacturer recommendations. Verify Zone 2 compliance and IP54 sealing post-assembly and perform a continuity check on the circuit. Use appropriate PPE and follow site safety procedures for hazardous areas.
The E1049X-15 is rated up to 1009 A continuous and supports a voltage rating of 1000 Vac/dc. It is designed for 646 kcmil cable and copper contact termination, enabling high-current, high-capacity power feeds in demanding environments.
Yes. The plug carries IECEx/ATEX Zone 2 certification and NEC/CEC compliance for hazardous locations, along with Class I, Division 2 ratings, making it suitable for hazardous-area installations in oil, gas, and chemical processing facilities.
It meets NEC/CEC and IECEx/ATEX standards, provides Zone 2 hazardous rating, and carries a NEMA 3R rating with IP54 ingress protection, ensuring regulatory compliance and reliable operation in harsh environments.
The rugged construction, copper contacts, and durable encapsulation reduce wear, corrosion, and downtime. Field-installable hex crimp or solder terminations simplify maintenance, while high-current capability lowers the need for multiple splices, delivering faster commissioning and lower lifecycle costs in heavy-industrial power systems.
