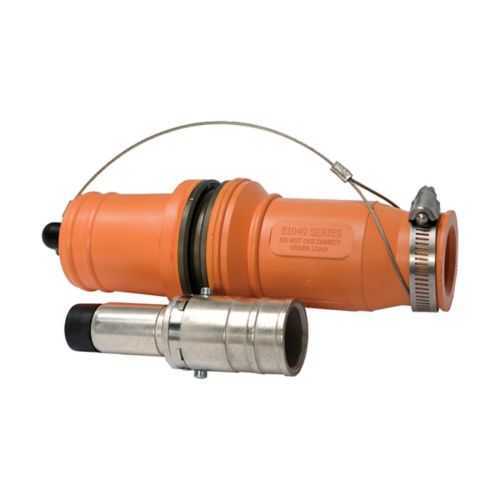

Eaton Roughneck E1049X-20 Plug - Zone 2, IP54
Part Number: E1049X-20
Quick Summary
The Eaton Roughneck E1049X-20 plug is a high‑current connector designed for hazardous locations. In the field, unreliable connectors drive downtime, maintenance costs, and safety risk. This product carries Zone 2 and IP54 protections, plus NEC Class I, Division 2 and IECEx/ATEX certifications for global use. With rugged rubber housing, copper contacts, and a 646 kcmil cable capability, it delivers fast installation and dependable uptime. The hexagon crimp or solder termination options further reduce on-site fiddling, while the 1000 Vac/dc rating supports critical motor and power-distribution applications. For engineering and procurement teams, this plug combines compliance confidence with sourcing simplicity across regions.
Product Information
Extended Description
E1049X-20 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-20
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275964625
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature: Zone 2 rated, IP54 protection, and NEC/IECEx/ATEX certifications. Business Impact: Enables safe operation in classified locations while reducing compliance risk and downtime. Application: Ideal for motors and heavy equipment in chemical plants and refineries that require certified hazardous-location connectors. Feature: Copper contacts with rubber housing. Business Impact: Improves electrical conductivity and resilience in rugged environments, prolonging connector life and lowering maintenance costs. Application: Harsh factory floors and outdoor installations where moisture and dust are factors. Feature: Up to 1009 A continuous, 646 kcmil cable capability, 1000 Vac/dc. Business Impact: Supports large‑current loads with a single, reliable mating interface, reducing parts and labor. Application: Main power feeders and high-amperage plug assemblies in safety-critical systems. Feature: Hexagon crimp or solder connection. Business Impact: Speeds installation and enhances seal integrity, minimizing leak paths and rework. Application: Field installs and serviceable assemblies where rapid termination is essential. Feature: Gray rubber body, 8.5 in length, 2.16 in width, 2.16 in height. Business Impact: Clear spatial footprint planning and compatibility with existing equipment enclosures. Application: OEM and retrofit projects with tight packaging constraints. Feature: 646 kcmil cable size and copper contact material. Business Impact: Ensures strong mechanical and electrical performance, reducing overheating and contact wear. Application: High‑amperage feeds and motor connections in hazardous environments. Feature: Zone 2, Class I, Division 2 rating, IP54. Business Impact: Regulatory alignment and safer operation in classified zones. Application: Global deployments across industries with strict compliance needs.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-20?
Enquire Now
FAQs
Yes. The E1049X-20 is designed for 646 kcmil copper conductors and supports hexagon crimp or solder termination. This ensures a secure, low‑impedance connection with robust mechanical integrity, simplifying field installations and reducing the need for additional adapters or rework.
The E1049X-20 is rated for up to 1009 A continuous current and supports a voltage of 1000 Vac/dc. This combination enables reliable high‑current power delivery for large motors and equipment while maintaining safe operation in hazardous locations.
Yes. The plug carries Zone 2 hazardous location certification (IECEx/ATEX) and NEC Class I, Division 2 ratings, along with an IP54 ingress protection rating, making it suitable for chemical plants, refineries, and other classified environments where safety and reliability are critical.
This connector meets IECEx/ATEX standards and NEC/CEC compliance, with Zone 2 and Class I, Division 2 ratings, NEMA 3R protection, and IP54 sealing. These certifications support global deployment and regulatory alignment for hazardous-location applications.
The robust rubber housing, copper contacts, and durable termination options minimize wear, corrosion, and retrofit downtime. With easy field termination and reliable performance under demanding conditions, your total cost of ownership decreases through reduced maintenance cycles and extended service life.
