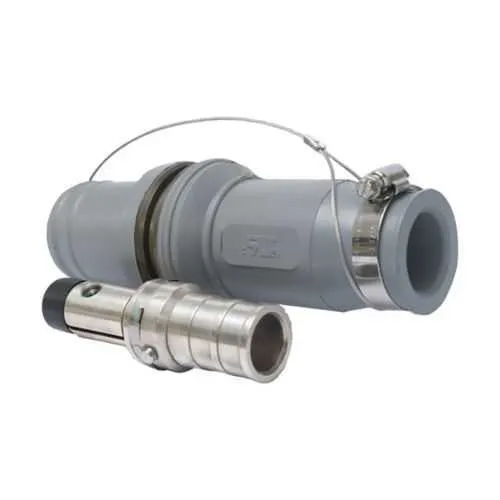

Eaton Crouse-Hinds E1049X-201 Plug - Zone 2 Rated
Part Number: E1049X-201
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049X-201 plug is a high‑current power connector designed for rugged, hazardous‑location applications in industrial facilities. Wiring up powerful equipment often tests seal integrity, installation speed, and regulatory compliance, especially in Zone 2/Division 2 environments. It carries NEC/CEC and IECEx/ATEX certifications with Zone 2 and IP54 protection, plus a NEMA 3R rating, giving you confidence in safety and reliability. With amperage up to 796A, voltage up to 1000 Vac/dc, and copper contacts, this plug supports fast, secure connections for 444 kcmil cables, reducing downtime and rework. Its rubber housing and flexible termination options—hexagon crimp or solder—simplify field installs and maintenance while preserving electrical integrity across harsh environments.
Product Information
Extended Description
E1049X-201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Black, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-201
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275962423
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Up to 796A continuous current. Business Impact: Supports high-power loads without paralleling or oversized hardware, reducing panel footprint and wiring complexity. Application: Heavy machinery and process lines in chemical plants or mining operations. Feature: 444 kcmil cable compatibility. Business Impact: Enables single, robust terminations for large-diameter cables, lowering labor and termination risk. Application: Main feeders and branch connections in large-scale facilities. Feature: 1000 Vac/dc voltage rating. Business Impact: Supports both AC and DC drives, reducing the need for multiple connector types. Application: Variable speed drives and motor control circuits. Feature: Zone 2, IP54, and NEMA 3R ratings. Business Impact: Enhanced safety and reliability in hazardous or outdoor environments, minimizing unplanned downtime. Application: Oil, gas, chemical processing, and outdoor equipment enclosures. Feature: Hexagon crimp or solder termination. Business Impact: Installation flexibility improves field time and reduces rework by accommodating different cable preparations. Application: New builds and retrofit projects across industrial plants. Feature: Copper contacts and rubber housing. Business Impact: Durable, corrosion-resistant connections with rugged housing for tough environments. Application: Outdoor or damp locations requiring long-term integrity.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-201?
Enquire Now
FAQs
Installations should be performed by qualified personnel following NEC/CEC and IECEx/ATEX guidelines. Use hexagon crimp or solder terminations with compatible 444 kcmil conductors, ensure proper sealing to maintain IP54 protection, and verify Zone 2/Class I Division 2 compliance with wiring practices and enclosure ratings.
The E1049X-201 supports up to 796A continuous current and accepts 444 kcmil cable, enabling large-diameter conductor terminations for high-load industrial applications.
Yes. The plug is designed for hexagon crimp or solder terminations, offering installation flexibility and ensuring a secure, low-resistance connection across varying field conditions.
It meets NEC/CEC and IECEx/ATEX standards, with Zone 2 hazardous location rating, IP54 ingress protection, NEMA 3R enclosure, and Class I, Division 2 suitability, ensuring regulatory compliance in hazardous and outdoor environments.
Durable rubber housing and copper contacts resist environmental wear, reducing maintenance intervals. The high-current capability and flexible termination method shorten installation times and downtime, improving equipment availability and total cost of ownership in rugged facilities.
