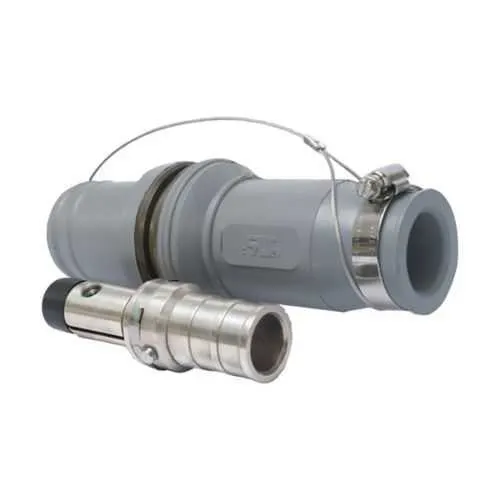

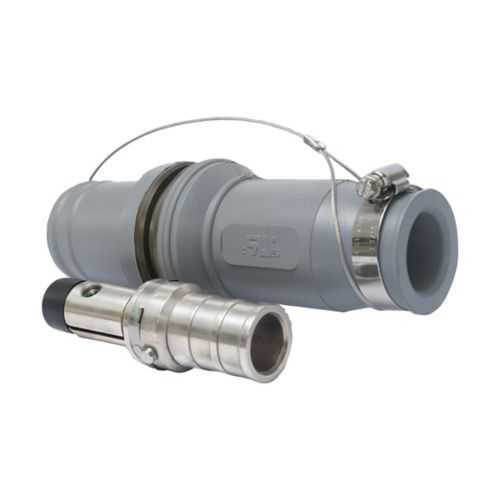

Eaton E1049X-202 plug - Zone 2 rated
Part Number: E1049X-202
Quick Summary
Eaton E1049X-202 plug is a high-amperage, hazardous-location connector designed for Roughneck power distributions in demanding industrial environments. This unit addresses the challenge of field-terminating large cables by offering up to 796A continuous capability with 444 kcmil conductors, plus flexible hexagon crimp or solder terminations. Zone 2 rated and IP54 protected, it aligns with NEC/CEC and IECEx/ATEX requirements, simplifying compliance during installation and maintenance. The rugged rubber body and copper contacts deliver durable, repeatable performance, while color identification and standardized sizing support quicker assembly and reduced downtime. For project planning and spares provisioning, this plug integrates seamlessly with the Roughneck family to drive consistent safety and reliability across facilities.
Product Information
Extended Description
E1049X-202 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-202
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275962430
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: High amperage rating up to 796A continuous; Business Impact: Supports large motors and heavy equipment without multiple connectors or parallel assemblies; Application: Power distribution in mining, steel, and oil & gas facilities enhances efficiency and reduces wiring complexity. Feature: Cable size compatibility with 444 kcmil conductors; Business Impact: Enables direct, solid connections for large-diameter cables, lowering contact resistance and thermal stress; Application: Critical power feeds in harsh environments. Feature: Connection options include hexagon crimp or solder; Business Impact: Flexible installation in the field, improves install time and reliability; Application: Field termination under vibration or space constraints. Feature: Zone 2 rated and IP54 protection; Business Impact: Compliance with hazardous-location standards reduces permitting and inspection time; Application: Equipment located in Class I, Division 2 areas. Feature: Rubber body with copper contacts; Business Impact: Durable, corrosion-resistant performance and easy maintenance; Application: Repeated make/break cycles in dirty or wet environments. Feature: 8.5 in length with 2.16 in width and height; 5.5 lb weight; Business Impact: Manageable form factor for field technicians, minimizes handling risk; Application: Installations requiring portable high-current plugs. Feature: Color-coded yellow; Business Impact: Quick identification improves safety and reduces misconnection risk; Application: Complex plant layouts with multiple connector types.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-202
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-202?
Enquire Now
FAQs
To install, select the appropriate hexagon crimp tool or solder method and prepare 444 kcmil copper conductors per tool manufacturer guidelines. Ensure insulation remains intact, inspect copper contacts for clean surfaces, and securely mate the plug with its corresponding connector. Verify seals and IP54 enclosure integrity after termination and perform a continuity and insulation resistance check before energizing the circuit.
The E1049X-202 plug provides up to 796A continuous current, a voltage rating of 1000 Vac/dc, and supports 444 kcmil cables. It is Zone 2 and Class I, Division 2 rated, IP54 protected, with a NEMA 3R enclosure. Its copper contacts and rubber body are designed for long life in harsh industrial settings, including vibration and exposure to contaminants.
Yes. The plug is Zone 2 rated and NEC/CEC along with IECEx/ATEX certified for hazardous locations, including Class I, Division 2 environments. This makes it a dependable choice for oil, gas, and related processing facilities where safety and regulatory compliance are critical, while maintaining high current capacity and rugged performance.
Compliance is supported by NEC/CEC standards, IECEx/ATEX hazardous location certification, NEC hazardous rating Class I, Division 2, IP54 ingress protection, and NEMA 3R enclosure rating. These certifications streamline approvals, inspections, and ongoing maintenance in diverse regulatory landscapes across North America and international sites.
Maintenance benefits include durable copper contacts, robust rubber housing, and field-terminable connections that resist wear and weathering. ROI advantages come from reduced downtime due to rapid, reliable terminations, fewer splices, and easier spares planning within Roughneck-compatible systems, ultimately lowering total upkeep costs in hazardous-location facilities.
