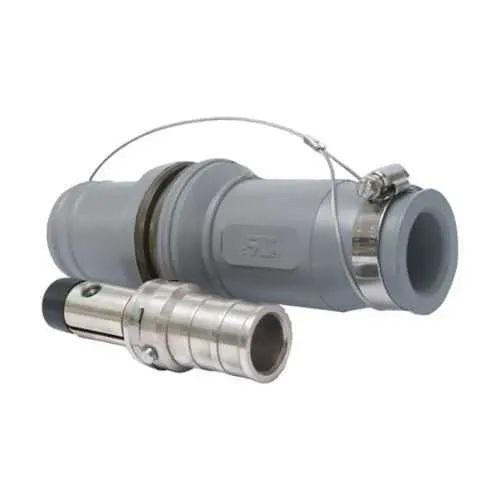

Eaton Crouse-Hinds E1049X-207 Roughneck Plug - Zone 2
Part Number: E1049X-207
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug is a high-current solution for hazardous-location wiring in demanding industrial facilities. Installers often face downtime and noncompliance when terminating large cables in Zone 2 environments, where sealing and rugged construction matter. This plug carries IECEx/ATEX Zone 2, NEC Class I, Division 2, and IP54/NEMA 3R certifications, providing safety margins and regulatory confidence. Designed for compatibility with 444 kcmil conductors using hexagon crimp or solder terminations, it helps accelerate field installs while maintaining long-term reliability.
Product Information
Extended Description
E1049X-207 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-207
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275962485
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
High-current performance with copper contacts and a rugged rubber body enables up to 796 A continuous operation and supports 444 kcmil cables, reducing the number of terminations and boosting overall system reliability. This is ideal for large feeders in oil and gas, chemical processing, and heavy manufacturing environments where downtime is costly. Hazardous-location certification and Zone 2/Division 2 compliance help simplify audits and ensure safer start-ups, while IP54 and NEMA 3R protection minimize dust and moisture ingress in outdoor or plant-room installations. The option of hexagon crimp or solder termination provides flexible field termination workflows, reducing install time and ensuring low-resistance connections under load. Its compact 8.5 in length with a 1 lb weight aids routing and servicing in tight electrical rooms, supporting long-term maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-207
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-207?
Enquire Now
FAQs
The E1049X-207 is designed for high-current terminations in Zone 2 and Class I, Division 2 environments. It supports up to 796 A and 444 kcmil conductors, with copper contacts and rubber construction to resist moisture and dust. Typical applications include oil and gas facilities, chemical plants, mining operations, and other demanding industrial projects requiring safe, compliant connectors.
Installations use either hexagon crimp or solder terminations to connect 444 kcmil conductors to copper contacts inside the rubber-bodied plug. Follow the IF 1777 instruction sheets for proper crimp tooling, torque ranges, and sealing procedures. Ensure zone 2 classification, confirm IP54 ingress protection, and verify the assembly meets NEC/IECEx/ATEX requirements before energizing.
Yes. The E1049X-207 is specified to accept 444 kcmil conductors with either hexagon crimp or solder termination. This enables large-diameter feeder connections in high-current applications, reducing the number of individual terminations and improving electrical performance and heat management under load.
The plug carries IECEx/ATEX Zone 2 and NEC Class I, Division 2 hazardous-location certifications, along with IP54 environmental protection and NEMA 3R enclosure rating. These certifications support compliance in global hazardous locations and outdoor or semi-outdoor installations, with validated safety and performance in demanding conditions.
The E1049X-207 reduces downtime through fast, secure field terminations (hex crimp or solder) for large conductors, while its rugged rubber body and IP54/NEMA 3R protection minimize field failures. High current capacity and certified safety reduce regulatory overhead and maintenance costs over the asset’s life, delivering long-term operational savings.
