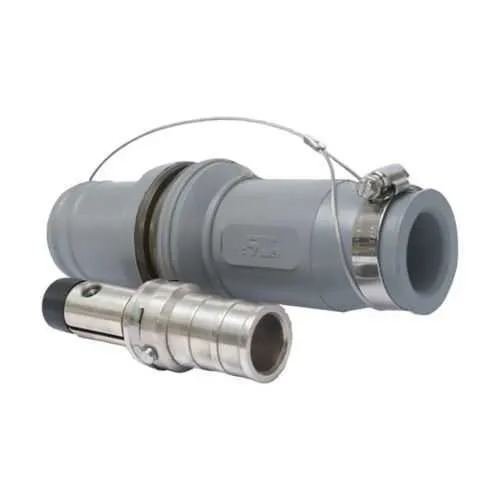

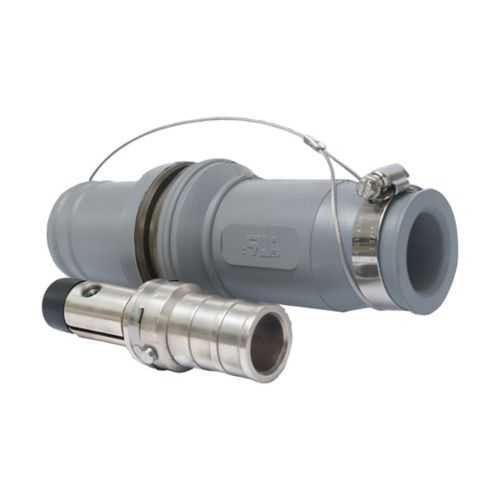

Eaton Crouse-Hinds E1049X-208 Plug - Zone 2 Rated
Part Number: E1049X-208
Quick Summary
The Eaton Crouse-Hinds E1049X-208 plug is a rugged, high‑amperage connector designed for hazardous locations in industrial facilities. Engineers often struggle with safe, compliant connections in Zone 2 environments when handling large conductor sizes and demanding uptime requirements. This Roughneck plug carries Zone 2 rating, IP54 protection, and IECEx/ATEX and NEC/CEC compliance, providing robust safety and regulatory alignment for critical processes. With support for 444 kcmil conductors and up to 796 A continuous, it enables faster, safer installations while delivering long-term reliability and cost efficiency for maintenance-heavy applications.
Product Information
Extended Description
E1049X-208 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Brown, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-208
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275962492
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Brown
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature → High-current capability up to 796 A continuous enables direct connection to large motors and high‑demand equipment, reducing the need for undersized solutions and related heat loss. Business Impact → Improves system efficiency and reduces downtime during motor start-up; Application → Large pumps and fans in hazardous zones. Feature → Zone 2 rated with IP54 ingress protection ensures safe operation in classified locations and protects against dust and splashes. Business Impact → Helps meet regulatory requirements while maintaining performance in tough environments; Application → Oil and chemical processing plants. Feature → Cable size compatibility to 444 kcmil with copper contacts supports low-resistance power transfer. Business Impact → Lower voltage drop and improved fault tolerance; Application → Power distribution for heavy machinery. Feature → Rubber housing and rugged mechanical seal offer field resilience under vibration and temperature swings. Business Impact → Extends service life and reduces replacement costs; Application → Offshore platforms and mining sites. Feature → Hexagon crimp or solder termination options provide flexible installation methods. Business Impact → Speeds installation and simplifies maintenance planning; Application → On-site field service and panel wiring. Feature → IECEx/ATEX and NEC/CEC compliance plus NEMA 3R rating address global safety and environmental standards. Business Impact → Global compatibility and lower compliance risk; Application → International projects and multi-site deployments.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-208
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-208?
Enquire Now
FAQs
Installers should verify Zone 2 compliance, use rubber-sealed housings, and follow IF 1777 installation sheets. The connector features IP54 protection and a robust Rubber housing, supporting safe field assembly in hazardous locations with compatible termination methods (hexagon crimp or solder).
The E1049X-208 supports up to 796 A continuous, a conductor size of 444 kcmil, and a voltage rating of 1000 Vac/dc. It uses copper contacts and is designed for reliable high‑current connections in hazardous environments.
Yes. The E1049X-208 is specified for hexagon crimp or solder termination, offering flexible field installation options and ensuring secure, code-compliant connections in challenging conditions.
It carries IECEx/ATEX and NEC/CEC standards, with Zone 2 hazardous location rating, NEMA 3R enclosure protection, and IP54 ingress protection, making it suitable for global hazardous-location applications.
Roughneck E1049 series plugs minimize downtime through robust, high‑amperage performance, improve safety in hazardous locations, and reduce lifecycle costs by enabling reliable field maintenance and faster installation in demanding industrial settings.
