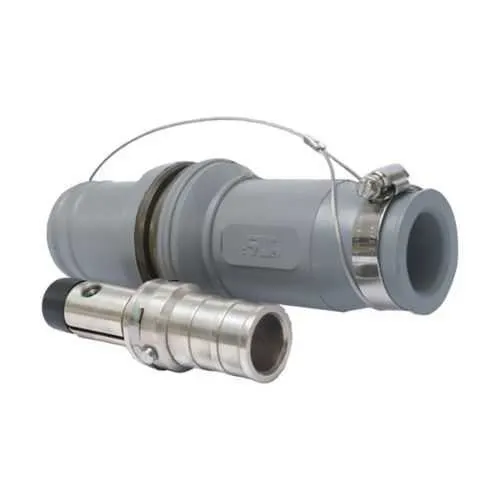

Eaton Crouse-Hinds E1049X-210 Plug - Zone 2 Rated
Part Number: E1049X-210
Quick Summary
Eaton Crouse-Hinds E1049X-210 plug is a high-amperage connector designed for hazardous-location motor circuits. Engineers often struggle to source rugged, compliant plugs that meet Zone 2 and IP54 requirements without sacrificing installation speed. This Roughneck plug delivers NEC/CEC IECEx/ATEX certification, Zone 2 rating, and IP54 protection, enabling safer, more reliable installations in classified areas. By leveraging compatibility with 444 kcmil cables and options for hex crimp or solder terminations, it reduces field rewiring time and supports scalable, maintenance-friendly electrical assemblies. In short, it blends proven ruggedness with practical installation workflows to help you meet strict industrial standards on time and on budget.
Product Information
Extended Description
E1049X-210 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-210
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275962515
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature: Up to 796 A continuous amperage rating paired with 444 kcmil cable support. Business impact: Handles large motors and high-load feeders with a single, robust connection, reducing the number of terminations and potential failure points. Application: Main motor feeders in chemical processing or mining facilities. Feature: Zone 2 rated and IP54/NEMA 3R enclosure compatibility. Business impact: Delivers compliant operation in hazardous environments with reliable ingress protection, minimizing risk of sparks or dust ingress. Application: Pump benches and pumped fluid handling in restricted zones. Feature: Copper contacts in a rubber housing with color gray. Business impact: Provides durable electrical contact resistance and weather-resistant housing, lowering maintenance frequency. Application: Outdoor switchgear connections and temporary outdoor installations. Feature: Hexagon crimp or solder connection options. Business impact: Flexible field termination supports quick, code-compliant installs and easier repurposing of cables. Application: Field service scenarios where cabling changes are common. Feature: 8.5 in length, 2.16 in height and width, 1 lb weight. Business impact: Compact, lightweight form factor simplifies inventory management and reduces shipping costs. Application: Tight panel spaces and quick-change installations. Feature: 1000 Vac/dc voltage rating. Business impact: Broad compatibility with mixed-voltage systems, lowering the need for adapters or intermediate connectors. Application: Mixed industrial power networks in hazardous locations. Feature: Hexagon crimp or solder terminals. Business impact: Ensures robust mechanical and electrical integrity under vibration and thermal cycling. Application: Heavy-duty industrial environments such as processing plants. Feature: Gray rubber material with copper contact material. Business impact: Resistant to harsh chemicals and temperature variations, extending service life. Application: Harsh plant floors and outdoor installations. Feature: Special feature Zone 2 rated. Business impact: Demonstrates compliance with strict hazardous-location requirements, supporting regulatory approvals. Application: Zones with potential gas or vapor hazards.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-210?
Enquire Now
FAQs
The E1049X-210 supports up to 444 kcmil copper conductors with a maximum continuous amperage of 796 A. Terminations are available in hexagon crimp or solder, providing flexible field installation options and reliable, code-compliant connections for large-diameter cables.
This plug is rated for 1000 Vac/dc, with IP54 ingress protection and NEMA 3R enclosure compatibility. It is designed for high-current, variable-voltage industrial applications typical in hazardous locations.
Yes. The E1049X-210 is Zone 2 rated with NEC/CEC IECEx/ATEX certifications, making it suitable for Class I, Division 2 environments and other classified locations while maintaining reliable performance under difficult conditions.
Refer to NEC/CEC, IECEx/ATEX certifications, Zone 2 hazardous location rating, IP54, and NEMA 3R. These align with hazardous-location project requirements and ensure regulatory compliance across multiple jurisdictions.
The rugged Roughneck E1049X-210 reduces downtime through durable copper contacts, robust connections, and versatile termination options. Its Zone 2 compliance minimizes rework during audits, while the 444 kcmil capability supports larger motors, delivering long-term savings from fewer replacements and faster service calls.
