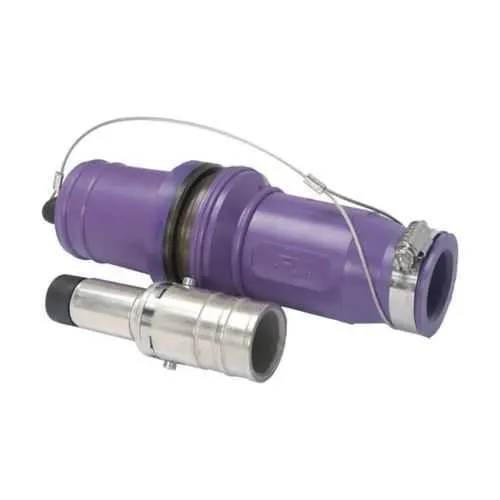

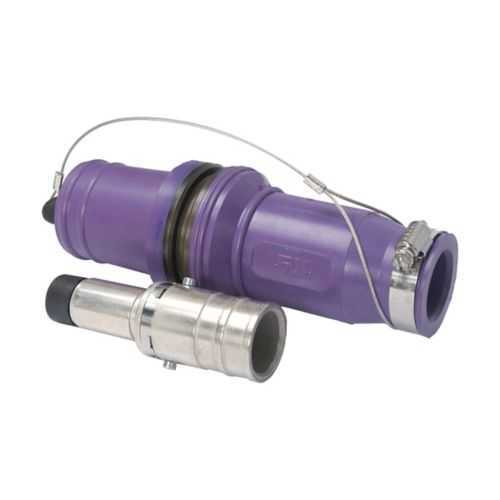

Eaton Crouse-Hinds E1049X-24 Plug - Zone 2 Rated
Part Number: E1049X-24
Quick Summary
Eaton Crouse-Hinds E1049X-24 plug enables high-current, reliable connections in hazardous-area wiring applications. It addresses the challenge of delivering up to 1135A in Zone 2 environments while maintaining safety and long-term reliability. This plug carries NEC/CEC and IECEx/ATEX certifications for hazardous locations, plus IP54 ingress protection and a NEMA 3R enclosure rating. The copper contact design and option for hexagon crimp or solder connections support robust, heat-resistant terminations in tough conditions. As part of the Roughneck line, it streamlines installation for industrial automation and helps protect ROI through durable, field-ready connectors.
Product Information
Extended Description
E1049X-24 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Orange, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-24
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275961891
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Orange
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature → High amperage capability up to 1135A continuous. Business Impact → Enables large-motor and high-load applications with fewer parallel connections, reducing panel complexity and overheating risk. Application → Heavy industry and mining sites where reliable, single-point high-current connections are essential. Feature → Cable size compatibility up to 777 kcmil. Business Impact → Supports long runs with minimal voltage drop, lowering total installation costs. Application → Pumping stations, refineries, and large distribution panels. Feature → Voltage rating of 1000 Vac/dc with copper contacts. Business Impact → Ensures low resistance, efficient power transfer and improved electrical reliability. Application → High-demand automation cabinets and process control rooms. Feature → Hexagon crimp or solder termination. Business Impact → Flexible installation options without sacrificing connection integrity. Application → Field service scenarios with diverse cable preparation. Feature → Zone 2 and IP54/NEMA 3R compliance. Business Impact → Enhanced safety and environmental protection reduce compliance risk and maintenance downtime. Application → Hazardous locations in oil, gas, chemical plants, and outdoor installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-24
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-24?
Enquire Now
FAQs
To install the E1049X-24 plug with hex crimp or solder terminations, prepare the 777 kcmil conductor and select the correct hex crimp tooling or solder method recommended by Eaton. Ensure a copper contact seating, a tight seal for IP54 protection, and a secure connection that preserves the Zone 2 rating. Verify all terminations meet NEC/CEC requirements.
The plug supports up to 1135A continuous, uses 777 kcmil cable, and provides a 1000 Vac/dc rating. It is male, rubber-bodied with copper contacts and orange color for quick identification. It is Zone 2 rated and IP54, conforming to NEC/CEC and IECEx/ATEX standards for hazardous locations, enabling safe operation across demanding industrial environments.
Yes. The E1049X-24 is Zone 2 rated, with NEC/CEC and IECEx/ATEX certifications, IP54 protection, and a NEMA 3R enclosure. Its rugged rubber housing and copper contacts are designed for demanding hazardous locations, including oil, gas, and chemical processing, offering reliable performance and compliance in challenging field conditions.
The plug carries NEC/CEC and IECEx/ATEX certifications, Zone 2 hazardous location rating, IP54 ingress protection, and a NEMA 3R enclosure rating. These standards validate safe operation in hazardous environments, ensure equipment interoperability, and simplify procurement for regulated facilities, reducing risk during commissioning and ongoing maintenance.
The copper contact design and flexible termination options (hex crimp or solder) reduce connection resistance and improve uptime. Zone 2/IP54 compliance minimizes enclosure ingress issues, lowering maintenance frequency. Overall, the rugged Roughneck plug lowers total cost of ownership by shortening installation time, reducing rework, and extending service intervals in demanding industrial settings.
