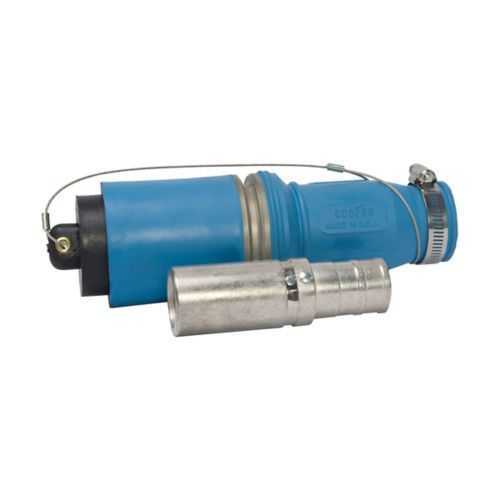

Eaton Crouse-Hinds E1049X-256 Plug - Zone 2 rated
Part Number: E1049X-256
Quick Summary
Eaton Crouse-Hinds E1049X-256 plug is a high‑amperage, Zone 2 rated connector designed for heavy equipment in hazardous locations. Engineers often struggle to source parts that satisfy safety standards without sacrificing reliability or ease of installation. This plug carries IECEx/ATEX and NEC/CEC certifications, including Zone 2 hazardous rating, Class I, Division 2, and IP54 containment, helping you stay compliant while reducing risk. With copper contacts and options for hexagon crimp or solder termination, it delivers durable field connections that minimize maintenance and maximize uptime in industrial plants.
Product Information
Extended Description
E1049X-256 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 796A continuous, 444 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-256
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962621
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
444 kcmil
Amperage Rating
Up to 796A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature → Up to 796A continuous amperage and 444 kcmil cable capability enable feeding large motors and heavy equipment with a single, reliable plug; Business Impact → Reduces wiring complexity and enables efficient power distribution design; Application → Suitable for heavy-duty machinery in manufacturing and processing facilities, improving line uptime. Feature → Zone 2 rated and IP54 protection provide safety and environmental resilience in classified locations; Business Impact → Compliance with hazardous-location standards reduces risk and inspection findings; Application → Ideal for motors, pumps, and power feeds in chemical, oil, and gas processing environments. Feature → Copper contact material and rubber housing offer durability and corrosion resistance; Business Impact → Longer service life and lower maintenance costs; Application → Field-terminations that withstand vibration and harsh conditions in rugged plants. Feature → Hexagon crimp or solder connection options support flexible installation approaches; Business Impact → Accelerates termination work and ensures secure, low‑impedance joints; Application → Field or panel-mounted assemblies in equipment rooms and outdoors. Feature → IECEx/ATEX and NEC/CEC certifications with NEMA 3R, Zone 2 rating; Business Impact → Easier regulatory compliance and cross‑regional use; Application → Global projects requiring consistent hazardous-location performance in electric power and automation systems.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-256
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-256?
Enquire Now
FAQs
Yes. The E1049X-256 is IECEx/ATEX and NEC/CEC certified for hazardous locations with a Zone 2 rating. It also supports Class I, Division 2 environments and IP54 protection, making it appropriate for outdoor and embedded applications in classified areas. Ensure mating connectors and enclosure are compatible to maintain the rated protection.
The plug accommodates up to 444 kcmil conductors and is rated for up to 796A continuous. This combination supports large motor feeds and high‑current distribution, reducing the need for multiple, smaller components and simplifying wiring schemes in power distribution layouts.
Termination is available in hexagon crimp or solder options with copper contacts. Hex crimping provides repeatable, high‑integrity joints suitable for production lines, while solder offers a field-repair pathway in constrained spaces. Both methods are compatible with the Roughneck E1049X-256 housing and ensure solid electrical performance.
Key certifications include IECEx/ATEX, NEC/CEC, Zone 2 hazardous rating, Class I, Division 2, and IP54 ingress protection, plus NEMA 3R suitability. These standards validate safe operation in classified locations, enable cross‑border use, and support risk mitigation, uptime, and regulatory compliance for industrial plants and project deployments.
By delivering a Zone 2 rated, high‑amperage connection with robust copper contacts and durable rubber housing, the E1049X-256 reduces fault points and simplifies field servicing. Its compatible termination options and proven certifications streamline compliance, enable faster maintenance cycles, and minimize downtime during motor starts and power distribution tasks.
