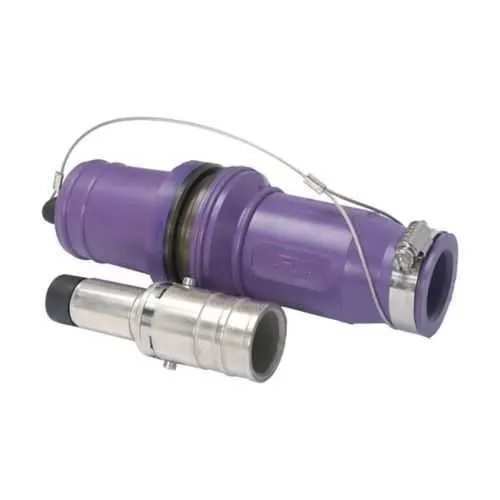

Eaton Crouse-Hinds E1049X-29 Plug - Zone 2 rated
Part Number: E1049X-29
Quick Summary
The Eaton Crouse-Hinds E1049X-29 Plug provides rugged high-amperage connections for hazardous-location power distribution. Engineers often struggle with compliance, installation complexity, and reliable performance in Zone 2 environments. This plug is certified for Zone 2 hazardous locations, NEC Class I Division 2, and IP54 protection, along with IECEx/ATEX compatibility, delivering robust safety and global applicability. With copper contacts and a rubber body, it supports long-term reliability while offering hexagon crimp or solder termination options. For teams seeking faster commissioning, reduced maintenance, and safer, compliant connections in harsh facilities, this solution aligns with heavy-waste, chemical, and oil-and-gas applications while supporting overall project uptime and cost control.
Product Information
Extended Description
E1049X-29 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Purple, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-29
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275961945
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Purple
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Up to 1135A continuous amperage and 777 kcmil cable size → Business Impact: Enables direct connection of large motors and feeders without multiple reductions, reducing switchgear footprint and potential fault points. Application: Heavy industrial drives, mining equipment, and pipeline infrastructure. Feature: Zone 2 hazardous-location rating and IP54 protection → Business Impact: Ensures compliance and safety in classified locations, lowering risk of ignition and costly outages. Application: Chemical plants, refineries, and offshore facilities. Feature: NEC/CEC, IECEx/ATEX compliance → Business Impact: Streamlines global approvals and site acceptance, reducing engineering and procurement complexity. Application: Global projects requiring cross-border certification. Feature: Copper contact material with rubber body construction → Business Impact: Delivers reliable electrical contact, corrosion resistance, and durable sealing in tough environments. Application: Long-term service in wet or dusty zones. Feature: Hexagon crimp or solder connection option → Business Impact: Provides installation flexibility for field crews with varying tooling, shortening commissioning time. Application: On-site electrical terminations and pre-assembly before enclosure installation. Feature: Compact dimensions and Roughneck form factor → Business Impact: Easier mounting in tight panels and rugged environments, minimizing handling risk. Application: Enclosures with limited space and high vibration.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-29?
Enquire Now
FAQs
The E1049X-29 is designed for Zone 2 hazardous locations with NEC Class I, Division 2 compliance and IECEx/ATEX compatibility. It also carries IP54 protection, making it suitable for chemical plants, oil and gas facilities, and other environments requiring reliable, certified high-current plug connections for large conductors up to 777 kcmil.
Yes. The E1049X-29 offers both hexagon crimp and solder termination options, giving installation teams the flexibility to use existing tooling or field-ready methods while maintaining a secure, code-compliant connection for up to 1135A continuous.
Key specs include up to 1135A continuous current, 777 kcmil cable size, 1000 Vac/dc voltage rating, copper contact material, and a male connector configuration. This combination supports high-current, long-run connections in demanding industrial settings.
Certifications include Zone 2 hazardous locations, NEC/CEC compliance, IECEx/ATEX compatibility, NEMA 3R rating, and IP54 ingress protection. These align with global safety and reliability requirements for hazardous-area installations.
Benefits include reduced downtime due to robust copper contacts and durable rubber construction, flexible termination methods for quick field servicing, and compliance-driven savings from fewer inspection holds or rework. The plug’s high current rating supports longer service intervals for critical feeders and motors.
