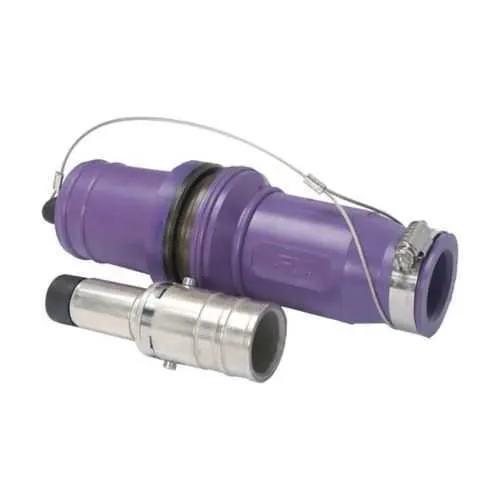

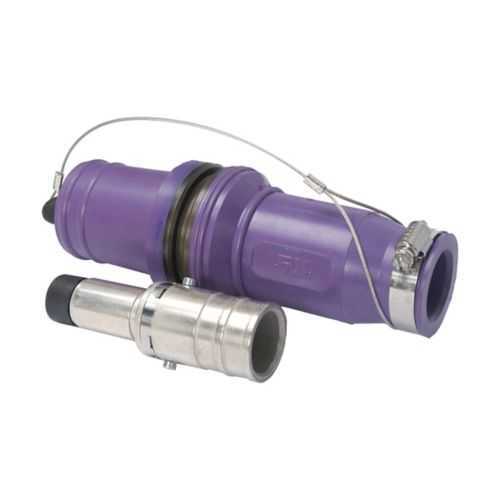

Eaton Crouse-Hinds E1049X-30 Roughneck Plug - Zone 2 Rated
Part Number: E1049X-30
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049 plug is a rugged high-amperage electrical connector for hazardous locations in industrial settings. When wiring in Class I, Division 2 or Zone 2 environments, installers often struggle with safe termination, reliable performance, and long-term durability under demanding conditions. This plug carries IECEx/ATEX and NEC Class I, Division 2 certifications, plus IP54 and NEMA 3R ratings, giving you compliance and protection across harsh sites. With copper contacts and a rubber body, it supports large cables up to 777 kcmil and up to 1135A continuous at 1000 Vac/dc, delivering value for install-time efficiency and ongoing uptime.
Product Information
Extended Description
E1049X-30 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-30
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275961952
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Zone 2 rated hazardous-location protection → Business Impact: Enables compliant operation in restricted zones and reduces risk exposure for personnel and equipment → Application: Oil, gas, and chemical processing facilities requiring certified hazardous-location connectors. Feature: High amperage capability up to 1135A continuous → Business Impact: Supports large motor feeders and heavy loads with fewer terminations, cutting installation time and potential contact resistance → Application: Heavy industrial drives and feeder assemblies. Feature: Large cable compatibility up to 777 kcmil → Business Impact: Allows using oversized conductors for optimized power distribution and reduced voltage drop → Application: Main power feeds and high-current distribution in rugged environments. Feature: Hexagon crimp or solder termination → Business Impact: Flexible field termination options improve install speed and reliability, even in tight spaces → Application: On-site terminations and retrofit projects. Feature: Rubber body with copper contacts and IP54/NEMA 3R protection → Business Impact: Resistant to moisture, dust, and washdown, extending service life and reducing maintenance → Application: Outdoor and harsh environments, including washdown zones. Feature: Compact dimensions and weight (8.5 in length, 2.16 in width/height, 1 lb) → Business Impact: Easier handling, routing, and panel mounting, lowering installation labor costs → Application: Dense electrical rooms and compact control panels.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-30?
Enquire Now
FAQs
For safe, compliant installations in Zone 2 and Class I, Division 2 settings, use copper conductors up to 777 kcmil with either hexagonal crimp or solder termination as specified. Ensure proper sealing and mounting to maintain IP54 and 3R protection. Verify compatibility with local standards (IECEx/ATEX, NEC) and confirm the connector is used with compatible mating devices and enclosures to prevent exposure to dust or moisture.
Yes. The E1049X-30 is certified for IECEx/ATEX and NEC Class I, Division 2 hazardous locations. This ensures the plug meets international and North American safety standards for explosive atmospheres, enabling compliant operation in Zone 2 environments and hazardous process areas without compromising performance or safety.
Best suited for heavy industrial power distribution in hazardous locations, including oil, gas, chemical processing, mining, and heavy manufacturing. Its Zone 2 rating, IP54 protection, and high current capability make it ideal for motor feeders, high-amperage power links, and equipment connections that require robust, compliant performance in challenging environments.
Key specs include up to 1135A continuous current, 777 kcmil cable size, 1000 Vac/dc voltage rating, and a copper contact design inside a rubber-bodied housing. It is a male plug with hexagon crimp or solder termination, gray in color, and protected to IP54 with NEMA 3R suitability for outdoor or damp applications.
Investing in the E1049X-30 reduces downtime by enabling fast, secure field terminations with hex crimp or solder options and large-conductor capability. Its Zone 2 and IP54/NEMA 3R protections minimize maintenance needs in harsh environments, while copper contacts deliver reliable low-resistance connections for years of service, improving overall system availability and return on investment.
