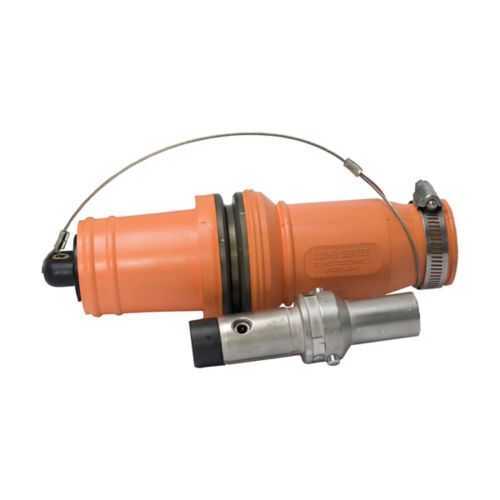

Eaton Crouse-Hinds E1049X-32 Roughneck Plug - Zone 2 rated
Part Number: E1049X-32
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049 plug delivers rugged, high‑amperage power connections for hazardous-area installations. It is designed for Zone 2 locations where dependable, sealed connections matter as much as reach and voltage. The unit carries IECEx/ATEX certification and NEC Class I, Division 2 compliance, plus IP54 protection, ensuring safe operation in harsh environments. With copper contacts and a rubber housing, it supports up to 636 A continuous and 1000 Vac/dc while offering hexagon crimp or solder termination. Engineers benefit from reliable, fast installation and reduced downtime, while procurement gains predictable lifecycle costs and compatibility with 313 kcmil cables across Roughneck plug systems.
Product Information
Extended Description
E1049X-32 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-32
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275961976
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: High current and voltage rating with copper contacts and rubber housing. Business Impact: Enables single, robust connections for large motors and feeders, reducing connection retries and downtime. Application: Heavy‑duty motor control centers and pump skids in chemical plants and mining sites. Feature: Zone 2, IP54, and NEMA 3R certifications. Business Impact: Regulatory compliance with lower risk of non‑compliant installations and fewer field reworks. Application: Hazardous locations and outdoor/under‑roof installations where moisture and dust ingress are concerns. Feature: Hexagon crimp or solder termination. Business Impact: Installation flexibility improves field readiness and reduces labor time in wiring harnesses. Application: Field retrofits and new builds requiring reliable terminations for 313 kcmil conductors. Feature: 313 kcmil cable compatibility with up to 636 A. Business Impact: Supports large‑gauge feeders, enabling simplified cabling strategy and inventory management. Application: Plant wide electrical distribution and equipment feeds where space and performance are critical. Feature: IECEx/ATEX and NEC Class I, Division 2 compliance. Business Impact: Streamlines procurement and auditing, reducing compliance overhead. Application: Global projects with strict hazardous-location standards. Feature: Durable yellow rubber housing with copper contacts. Business Impact: Enhanced environmental sealing and long service life, lowering maintenance costs. Application: Harsh environments like chemical processing and scrap/aggregate facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-32?
Enquire Now
FAQs
To install the E1049X-32, prepare 313 kcmil copper conductors, ensure clean, undamaged insulation, and select the appropriate hex crimp or solder termination tooling. Use proper torque and crimp height specifications to maintain IP54 integrity. Verify Zone 2 or Division 2 compliance in the enclosure; complete all stainless or rubber housing seals before energizing.
The E1049X-32 is IECEx/ATEX certified for Zone 2 hazardous locations and NEC Class I, Division 2. This ensures safe operation where flammable atmospheres may be present but are not continuously ignited. The IP54 rating further guards against dust and water ingress, improving reliability in industrial environments such as chemical processing and oil/gas facilities.
Yes. The plug is designed for 313 kcmil cable sizing and supports up to 636 A continuous. Copper contact materials and robust rubber housing enable high-conductivity connections. When selecting this plug, confirm enclosure space and conductor routing to realize the full amperage capability without compromising sealing or ease of maintenance.
The E1049X-32 carries IECEx/ATEX certification and NEC Class I, Division 2 approval, plus IP54 and NEMA 3R ratings. These certifications cover hazardous-location safety, environmental protection, and compatibility with standard industrial wiring practices. Ensure your project documentation reflects Zone 2 compliance and that downstream components meet corresponding regional standards.
Expected benefits include reduced downtime due to reliable, sealed connections and longer service life from rugged rubber housing and copper contacts. The interface supports quick hex crimp or solder terminations, simplifying maintenance and retrofit work. Over the asset life, these features translate to lower maintenance labor costs and improved uptime for mission-critical motors and feeders.
