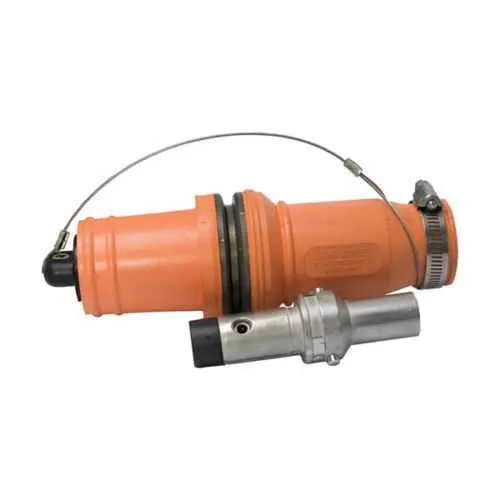

Eaton Crouse-Hinds E1049X-37 Plug - Zone 2 Rated
Part Number: E1049X-37
Quick Summary
The E1049X-37 plug from Eaton Crouse-Hinds delivers rugged high‑amperage connections for hazardous locations. Facilities struggle with safe, compliant terminations in Zone 2 areas while keeping maintenance straightforward. It carries IECEx/ATEX Zone 2, NEC Class I Division 2, and IP54/NEMA 3R ratings for global compliance. Designed for continuous amperage up to 636 A on 313 kcmil conductors, it streamlines high‑current installations and reduces downtime. Its hex‑crimp or solder termination options offer installation flexibility and robust field performance. This reliable connector improves safety documentation, supports compliance audits, and helps procurement avoid redesigns. With IP54 protection and rubber housing, it resists moisture and dust in demanding environments.
Product Information
Extended Description
E1049X-37 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-37
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
5.5 lb
UPC
662275961402
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: High current capability up to 636 A continuous and 313 kcmil conductors. Business Impact: Supports large motors and feeders with a single, reliable plug, reducing the need for multiple smaller terminations and lowering overall cabling complexity. Application: Heavy machinery, steel processing, and water treatment plants benefit from fewer connection points and faster commissioning. Long-tail keywords integrated: high amperage plug, 313 kcmil connector, roughneck plug. Feature: Zone 2 rated and IP54 / NEMA 3R protection. Business Impact: Enables safe operation in hazardous environments while maintaining ingress protection against dust and moisture, lowering risk during maintenance. Application: Chemical plants and mining sites where regulatory compliance is mandatory. Long-tail keywords integrated: Zone 2 rated plug, hazardous location connector, IP54 NEMA 3R. Feature: Hexagon crimp or solder termination options. Business Impact: Installation flexibility reduces field labor time and error, speeding up assembly and future servicing. Application: Field technicians can choose the termination method that best fits the conductor and tooling available. Long-tail keywords integrated: hex crimp termination, solder termination, field termination options. Feature: 1000 Vac/dc voltage rating with copper contacts. Business Impact: Ensures robust, low-impedance connections for high‑voltage systems, improving efficiency and reducing heat rise. Application: Power distribution to pumps, fans, and drives in demanding environments. Long-tail keywords integrated: 1000 Vac/dc rating, copper contacts, high voltage connector. Feature: Rugged rubber housing, blue color, and compact geometry. Business Impact: Durable, easily identifiable components simplify installation, inspection, and spare-part management. Application: Enclosures with tight spaces and color-coding schemes for quick asset recognition. Long-tail keywords integrated: rubber housing, blue plug, compact power plug. Feature: Continuous up to 636 A and 313 kcmil cable compatibility. Business Impact: Supports scalable power distribution strategies and reduces redesign costs when equipment amperage rises. Application: Industrial automation lines and processing plants with evolving load requirements. Long-tail keywords integrated: continuous amperage, scalable power distribution, 313 kcmil compatibility.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-37
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-37?
Enquire Now
FAQs
The E1049X-37 supports hex crimp or solder terminations, allowing technicians to select the method best suited to the conductor size (313 kcmil) and tooling available. Begin by verifying conductor preparation, securing proper ferrules or solder tines, and ensuring a tight, low‑impedance connection. Follow manufacturer torque and crimping specifications, then verify continuity and insulation resistance before energizing. This approach minimizes risk, speeds up commissioning, and improves long‑term reliability in hazardous environments.
Key ratings include up to 636 A continuous amperage, 313 kcmil cable compatibility, and a 1000 Vac/dc voltage rating, with IP54 ingress protection and NEMA 3R suitability. These specs enable safe operation in demanding industrial settings, reduce heat buildup, and support reliable operation of large motors and feeders. By meeting IECEx/ATEX Zone 2 and NEC Class I Division 2 requirements, it also simplifies regulatory compliance and risk management.
Yes. The E1049X-37 is designed for 313 kcmil copper conductors and continuous operation up to 636 A, making it well suited for heavy machinery, pumps, and drives in industrial plants. Its Zone 2 rating and rugged rubber housing provide additional protection against hazardous environments, while the option for hex crimp or solder terminations supports versatile installation workflows.
The plug carries IECEx/ATEX Zone 2 and NEC Class I Division 2 certifications, along with IP54 ingress protection and NEMA 3R suitability. These certifications are essential for safety, regulatory compliance, and risk reduction in hazardous locations such as chemical plants and mining facilities, enabling easier audits and global applicability.
Maintenance benefits come from robust copper contacts, reliable termination options, and a durable rubber housing that resists moisture and dust. ROI improvements stem from reduced downtime during maintenance, fewer termination points, and faster replacement with standardized Roughneck plugs. The 8.5 in length and 5.5 lb weight also simplify handling and field servicing, delivering tangible lifecycle cost savings.
