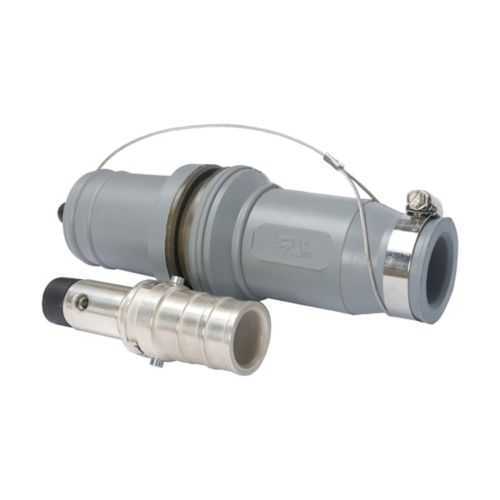

Eaton Crouse-Hinds E1049X-4 Plug - Zone 2 Rated
Part Number: E1049X-4
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049X-4 Plug provides high-current power connections for rugged industrial enclosures. In hazardous locations, downtime and noncompliance with ordinary plugs can lead to costly outages and safety risks. This plug is Zone 2 IECEx/ATEX approved with NEC Class I, Division 2 protection and IP54/NEMA 3R compatibility, enabling safe operation in challenging environments. Designed for 535 kcmil cables and up to 898 A continuous, it complements a wide Roughneck portfolio and supports faster, compliant installations for heavy-duty feeders and motor circuits.
Product Information
Extended Description
E1049X-4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Orange, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-4
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275961754
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Orange
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature: High amperage rating up to 898 A continuous. Business Impact: Supports large equipment feeds, reducing panel count and simplifying power distribution in industrial facilities. Application: Heavy machinery, conveyors, and large motor drives in chemical plants and refineries. Feature: Cable size capability of 535 kcmil. Business Impact: Enables direct connection of large conductor runs with fewer splices, improving reliability. Application: Plant-wide power distribution and feeder cables in manufacturing. Feature: Zone 2 rated with IECEx/ATEX and NEC Class I, Division 2 compliance. Business Impact: Ensures regulatory compliance and safer operation in hazardous locations, reducing risk of fines and downtime. Application: Offshore, chemical, and petrochemical processes. Feature: Hexagon crimp or solder connection. Business Impact: Flexible termination methods for field technicians, speeding up installation and reducing labor costs. Application: On-site terminations in rugged environments. Feature: Copper contacts and rubber housing. Business Impact: Lower resistance, better conductivity, and durable insulation for long service life. Application: Repeated connect/disconnect cycles in demanding environments. Feature: IP54 protection and NEMA 3R enclosure compatibility. Business Impact: Protection against dust and water ingress, enabling outdoor and semi-enclosed installations. Application: Outdoor machinery rooms, substations, and hazardous-area equipment rooms.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-4?
Enquire Now
FAQs
The E1049X-4 Roughneck plug is designed to accept 535 kcmil conductors and offers hexagon crimp or solder termination. This enables direct, secure field terminations with copper contacts and rubber housing, reducing the need for intermediate adapters and improving reliability in demanding environments.
It delivers up to 898 A continuous and 1000 Vac/dc, with Zone 2 IECEx/ATEX approvals and NEC Class I, Division 2 protection. The enclosure is IP54 rated and compatible with NEMA 3R requirements, making it suitable for hazardous locations and outdoor installations.
Industries such as oil and gas, chemical processing, and water/wastewater plants benefit due to Zone 2 classification and robust electrical ratings. It is ideal for heavy feeders, pump skids, and large motor feeders where reliable, compliant high-amperage connections are critical.
Verify Zone 2 IECEx/ATEX approvals, NEC Class I, Division 2 rating, IP54 ingress protection, and NEMA 3R enclosure compatibility. These align with hazardous-location standards and help ensure ongoing regulatory compliance and safer operation in classified environments.
Field-term compatible termination reduces installation time, fewer splices, and lower maintenance costs over time. The rugged rubber housing and copper contacts improve conductivity and durability, lowering failure rates in harsh environments and delivering longer service intervals for critical power feeders.
