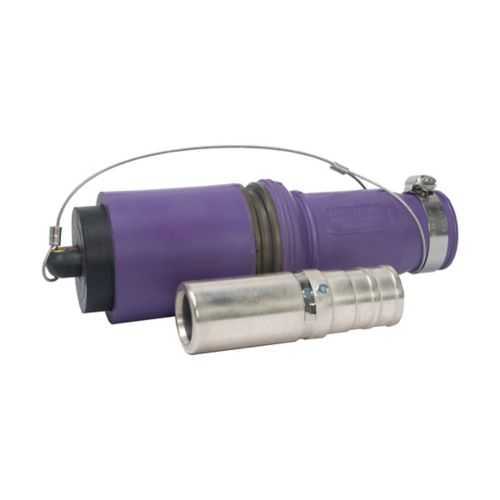

Eaton Crouse-Hinds E1049X-50 Roughneck Plug - Zone 2
Part Number: E1049X-50
Quick Summary
Eaton Crouse-Hinds E1049X-50 Roughneck plug protects high-current cables in hazardous locations. In many plants, securing durable, code-compliant terminations in Zone 2 areas is a chronic challenge due to limited space and installation flexibility. This plug delivers IECEx/ATEX and NEC/CEC certifications, a Zone 2 rating, and IP54 protection to support safe, compliant operation. Built for reliability, it combines rugged rubber housing with copper contacts and a flexible hex-crimp or solder connection, delivering reduced downtime, simpler maintenance, and a lower total cost of ownership for high-amperage power feeds and motor circuits in classified environments.
Product Information
Extended Description
E1049X-50 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Black, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-50
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275961426
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Black
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
High-current capability and large conductor size enable uninterrupted power delivery for demanding industrial loads, with up to 898A continuous and 535 kcmil cable support. This translates to fewer terminations and less rework on large feeders, translating to measurable uptime gains in heavy machinery applications. The robust rubber body and copper contacts provide superior vibration resistance and electrical integrity in tough plant conditions, reducing insulation wear and connection failures in harsh environments. By offering both hexagon crimp and solder connections, installation teams gain flexibility to use standard field tooling, speeding terminations and ensuring a secure, low-impedance connection under load. The device’s IP54 rating and NEMA 3R enclosure support protection against dust and water ingress, enabling outdoor and indoor use with predictable performance. Zone 2/Division 2 compliance and IECEx/ATEX and NEC/CEC certifications simplify risk assessments, compliance documentation, and approvals for hazardous-location projects. Its compact 8.5 in length and 3 in by 3 in footprint, plus 1 lb weight, ease handling and fitment in restricted spaces, reducing installation time and fatigue for technicians.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-50?
Enquire Now
FAQs
The E1049X-50 supports hexagon crimp or solder terminations for 535 kcmil conductors, enabling field-ready connections with standard crimping tools or soldering procedures. For best results, follow the IF 1778 installation sheets and use appropriate torques and crimp dies recommended by Eaton. This flexibility reduces rework and allows technicians to select the quickest, most reliable method for each installation scenario.
This Roughneck plug provides up to 898A continuous current and a voltage rating of 1000 Vac/dc, designed for copper contacts and rubber housing. It is compatible with 535 kcmil conductors and is intended for high-amperage power feeds in hazardous locations, ensuring stable performance under load and during transients while maintaining safe isolation.
Yes. The E1049X-50 is Zone 2 rated and Class I, Division 2 compliant, with IECEx/ATEX and NEC/CEC standards. It also carries IP54 protection and a NEMA 3R enclosure, which collectively support safe operation in hazardous environments with dust and water exposure, both indoors and outdoors, while meeting global regulatory expectations.
The plug carries IECEx/ATEX certifications for hazardous locations and NEC/CEC approvals for electrical installations, along with Zone 2 hazard classifications, IP54 ingress protection, and NEMA 3R enclosure rating. These certifications streamline regulatory approvals, supplier qualification, and end-user safety assessments for industrial facilities and chemical processing plants.
Plan routine inspections of the rubber housing for signs of wear or cracking and verify copper contacts for oxidation during preventative maintenance. Use the provided installation instructions (IF 1778 sheets) for field-replacement best practices. The rugged construction and field-termination options help minimize downtime, while authorized spares and compatible tooling ensure quick service in harsh environments.
