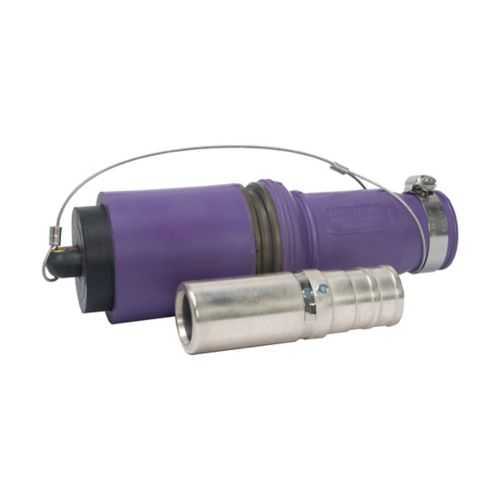

Eaton Crouse-Hinds E1049X-51 Roughneck Plug - Zone 2
Part Number: E1049X-51
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049X-51 plug is a high-amperage connector designed for demanding hazardous-location installations. Engineers often contend with unreliable seals, corrosion, and lengthy installation times in Class I Division 2 environments; this plug delivers Zone 2 compliance and IP54 protection to help minimize downtime and maintenance. It is backed by NEC/CEC IECEx/ATEX certifications, plus a NEMA 3R rating, providing broad regulatory assurance across diverse sites. With copper contacts, a rubber housing, and options for hexagon crimp or solder termination, it enables durable performance with straightforward field installation for challenging power-distribution tasks.
Product Information
Extended Description
E1049X-51 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Yellow, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-51
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275961433
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Yellow
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
High amperage and large conductor support enable a single connector to carry up to 898A continuous on 535 kcmil cables, reducing the need for multiple terminations and lowering installed cost while improving system reliability for heavy industrial drives. Zone 2 rated and NEC/CEC IECEx/ATEX compliance simplify regulatory approvals and safe operation across global hazardous locations, accelerating project timelines and improving risk management. IP54 protection and NEMA 3R enclosure extend service life in dusty, wash-down, or outdoor environments, reducing maintenance cycles and associated downtime. Copper contacts inside a rugged rubber body deliver low contact resistance and durable sealing, maintaining performance under vibration and temperature swings typical of harsh plants. Hexagon crimp or solder termination offers installation flexibility, minimizes tooling requirements, and speeds panel assembly while supporting field-serviceability and future upgrades. The distinctive yellow housing enhances visual identification for quick inspections and safer handling in busy facilities, contributing to safer, more efficient installations.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-51
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-51?
Enquire Now
FAQs
The E1049X-51 is designed for Roughneck single-pole high-amperage plugs and connectors. It fits standard Roughneck interfaces and uses hexagon crimp or solder terminations. It is compatible with 535 kcmil conductors up to 898A continuous and supports operation in Zone 2 hazardous locations per NEC/CEC and IECEx/ATEX standards, ensuring reliable field performance.
The E1049X-51 offers an amperage rating up to 898A continuous and a voltage rating of 1000 Vac/dc. It supports 535 kcmil cables and uses copper contacts within a rubber body, delivering robust conductivity and sealing suitable for demanding industrial power distribution.
Yes. The E1049X-51 is Zone 2 rated and NEC/CEC IECEx/ATEX certified for hazardous locations. It complements Class I, Division 2 environments and supports IECEx/ATEX and NEMA 3R requirements, making it appropriate for oil & gas, chemical processing, and other hazardous industrial settings.
The plug supports hexagon crimp or solder terminations with copper contacts, offering flexible installation. This lowers tool requirements and speeds field assembly while maintaining a dependable electrical connection and sealing under varying operating conditions.
The E1049X-51 features IP54 protection and a NEMA 3R enclosure, protecting against dust and splashing water. This makes it suitable for wash-down, outdoor, and rugged industrial environments, reducing maintenance needs and extending service life in challenging facilities.
