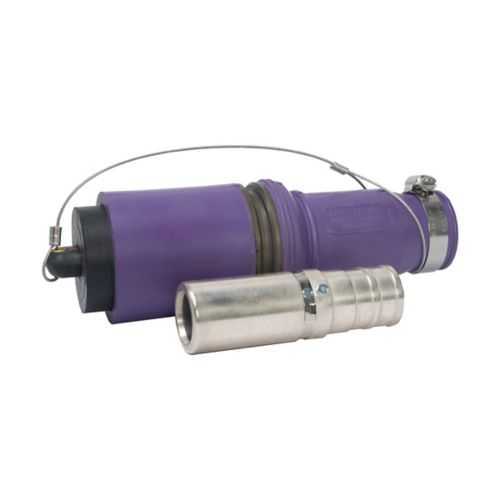

Eaton Crouse-Hinds E1049X-52 Roughneck plug - Zone 2 rated
Part Number: E1049X-52
Quick Summary
The Eaton Crouse-Hinds E1049X-52 Roughneck plug provides high-current, rugged electrical connection for hazardous-location power distribution. Maintaining compliance while minimizing downtime is a constant challenge in harsh environments. This connector meets IECEx/ATEX and NEC/CEC requirements, with Zone 2 hazardous area rating, IP54 protection, and a NEMA 3R enclosure. With a 535 kcmil conductor capacity and copper contacts, it supports reliable, compliant power delivery. This combination delivers safety, efficiency, and cost savings for electrical teams managing hazardous-zone projects. Designed for field reliability, it accepts hexagon crimp or solder terminations and supports large-diameter cables up to 535 kcmil. Engineers benefit from documented installation guidelines and reputable literature, enabling faster commissioning and reduced ambiguity at start-up.
Product Information
Extended Description
E1049X-52 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Red, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-52
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275962041
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Red
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
High-current capability aligns with demanding motors and power distribution. The E1049X-52 supports up to 898 A continuous and accommodates 535 kcmil conductors, delivering reliable power without the need for oversized hardware. In field installations this translates to fewer terminations and reduced heat build-up, boosting overall system efficiency. The voltage rating of 1000 Vac/dc paired with copper contacts ensures robust electrical performance, minimizing arc risk and voltage drop in challenging environments. Rubber housing adds resilience against moisture, chemicals, and mechanical stress, supporting long service life in harsh plants. Hazardous-location certifications—IECEx/ATEX and NEC/CEC—provide global and regional compliance, mitigating regulatory risk for oil, gas, and chemical facilities. IP54 protection and a NEMA 3R enclosure allow outdoor and dusty environment operation without sacrificing reliability. Connection versatility is enhanced by hexagon crimp or solder terminations, enabling fast, tool-compatible installations in the field. The 8.5 inch length and compact 3x3 inch footprint simplify mounting near switchgear and control panels, reducing cabinet crowding and maintenance time. This plug is compatible with standard Roughneck systems, ensuring spare parts availability, consistent maintenance, and predictable lifecycle costs for power distribution assets.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-52
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-52?
Enquire Now
FAQs
Yes. The E1049X-52 Roughneck plug is designed for 535 kcmil conductors and supports both hexagon crimp and solder terminations, enabling flexible field assembly while maintaining a secure, low-resistance connection.
It provides up to 898 A continuous and a voltage rating of 1000 Vac/dc, with copper contacts and a rubber housing to minimize resistance, heat, and arc risk in Zone 2 locations, ensuring reliable operation of large motors and power equipment.
Ideal for hazardous-location power distribution in oil, gas, chemical plants, mining, and heavy industrial facilities, it supports demanding motors and feeders while meeting Zone 2 and IP54/NEMA 3R protection requirements.
The plug carries IECEx/ATEX and NEC/CEC standards with a Zone 2 hazardous area rating, IP54 ingress protection, and a NEMA 3R enclosure, aligning with global and regional compliance for demanding environments.
Access installation instructions (IF 1778), brochures, and catalog pages from Eaton/Crouse-Hinds. These resources facilitate quick commissioning, reduce commissioning downtime, and support ongoing maintenance with documented field procedures.
