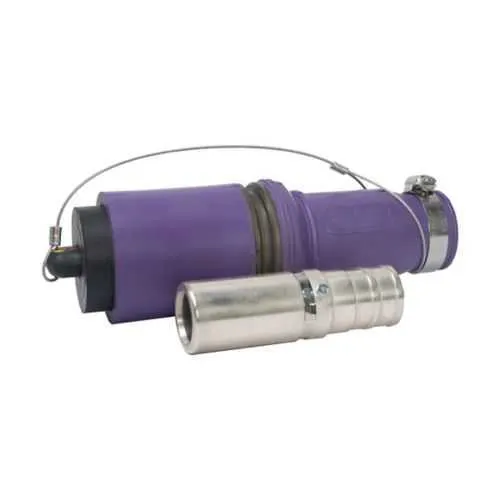

Eaton Crouse-Hinds E1049X-57 Plug - Zone 2 rated
Part Number: E1049X-57
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049X-57 plug provides high-current power connection for heavy equipment in hazardous locations. Maintenance teams struggle with safe, reliable connections in hazardous zones where mis-matched components cause downtime and safety risk. It carries Zone 2 and NEC Class I, Division 2 ratings, IECEx/ATEX certifications, plus IP54 ingress protection for rugged environments. For procurement teams, this single, rugged solution reduces spares, speeds maintenance, and ensures compliance across demanding oil, gas, and chemical applications. Coupled with its rugged rubber housing, copper contacts, and field-terminating options, technicians can install confidently in tight spaces. The combination of high amperage capability and durable construction translates to fewer outages and lower total cost of ownership over the equipment life cycle.
Product Information
Extended Description
E1049X-57 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Brown, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-57
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275962317
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Brown
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Feature: Amperage rating up to 898 A continuous with 535 kcmil conductor size supports large feeders in a single robust connector. Business impact: Reduces junctions, simplifies spares, and minimizes voltage drop on long runs. Application: Ideal for mining conveyors, chemical plants, and heavy equipment power distribution in Zone 2 environments. Feature: Hexagon crimp or solder termination with copper contacts in a rubber-bodied female receptacle. Business impact: field-termination flexibility and vibration resistance, enabling quicker upgrades and fewer reworks. Application: Wiring harnesses in rugged industrial settings where reliability matters most. Feature: Environmental and safety ratings including Zone 2 hazardous location, NEC Class I, Division 2, IECEx/ATEX, IP54, and NEMA 3R. Business impact: Regulatory compliance across multiple jurisdictions and reliable protection against dust and water ingress. Application: Outdoor substations, offshore platforms, and process plants with exposure to harsh elements. Feature: Compact physical footprint with 8.5 in length, 3 in width, 3 in height, and 1 lb weight; rated for 1000 Vac/dc. Business impact: Space-efficient, versatile compatibility with both AC and DC systems. Application: Control panels, distribution boards, and portable power assemblies needing robust connectors. Feature: Official installation resources and product literature including IF 1778 sheets and Roughneck catalogs. Business impact: Faster commissioning, audit-ready documentation, and easier training. Application: New installations and retrofits across industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-57
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-57?
Enquire Now
FAQs
Installation should be performed by qualified technicians. Use hexagon crimp or solder termination with copper contacts, ensure the rubber seals are intact, and follow the IF 1778 installation sheets for Roughneck E1049 series. Verify Zone 2 compliance, IP54 protection, and correct cable size (535 kcmil) for the 898 A rating. Tighten to spec and inspect for vibration resistance after assembly.
The 535 kcmil conductor supports up to 898 A continuous, enabling large feeders in a single connector and reducing the number of splices. This minimizes voltage drop on long runs and improves overall system efficiency. It simplifies harness design in heavy equipment installations and ensures reliable power delivery in demanding environments.
Yes. The E1049X-57 is rated for 1000 Vac/dc, allowing use with AC and DC systems alike. This versatility supports mixed-power environments common in control panels and motor drives, while the hexagon crimp or solder terminations provide stable, vibration-resistant connections essential for hazardous locations.
The plug carries Zone 2 hazardous location certification, NEC Class I, Division 2 ratings, IECEx/ATEX approvals, IP54 ingress protection, and NEMA 3R suitability. These certifications facilitate compliant installations across multiple regions and help minimize regulatory risk for offshore, chemical, and heavy-industrial facilities.
The rugged design reduces frequent maintenance by delivering durable copper contacts and vibration-resistant terminations. Fewer connectors and splices mean lower spares inventory, faster commissioning, and improved uptime. The product’s official installation literature also supports quicker training and audit readiness, delivering measurable life-cycle cost savings in demanding plants.
