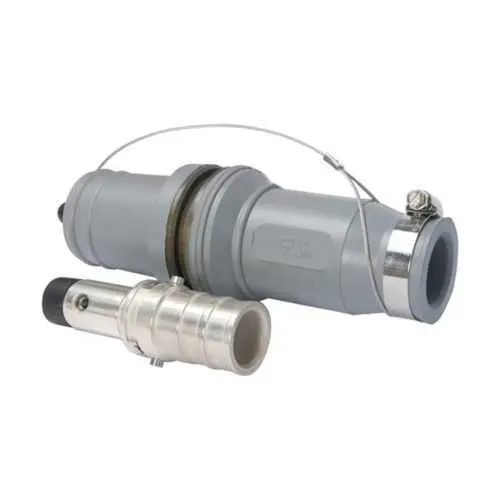

Eaton Roughneck E1049 plug E1049X-6 Hazardous Zone 2
Part Number: E1049X-6
Quick Summary
The Eaton Roughneck E1049 plug is a high-amperage hazardous-location connector. It supports up to 898 A continuous for 535 kcmil conductors, with a 1000 Vac/dc rating, IP54 protection, and Zone 2 IECEx/ATEX plus NEC/CEC compliance. Primary applications include heavy motor feeders, power distribution panels, and switchgear enclosures in chemical, oil & gas, or other hazardous facilities. Core benefits include copper contacts in a rubber body and secure hexagon crimp or solder terminations, which reduce field faults and installation time. By combining rugged construction with stringent safety standards, this plug enables reliable operation in demanding environments and supports ongoing uptime for critical automation systems.
Product Information
Extended Description
E1049X-6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, White, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-6
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275961785
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature → Business Impact → Application: High amperage and large conductor capability (898 A, 535 kcmil) enables larger loads with fewer connectors, reducing points of failure and panel complexity. Application: Heavy motor feeders and high-current power distribution. Feature → Business Impact → Application: Zone 2, IP54, and NEC/IECEx/ATEX compliance deliver regulatory safety and operational reliability. Application: Chemical plants, oil & gas facilities, hazardous-area switchgear. Feature → Business Impact → Application: Copper contacts in a rubber body with 1000 Vac/dc rating provide durable, corrosion-resistant connections that stay secure over time. Application: Harsh environments and long service life. Feature → Business Impact → Application: Hexagon crimp or solder termination offers installation flexibility, reducing field labor and mistakes. Application: Field wiring and panel assembly. Feature → Business Impact → Application: Moderate footprint at 8.5 in length and 2.16 in width/height with a 1 lb weight simplifies procurement and handling. Application: Dense control panels and equipment racks.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-6?
Enquire Now
FAQs
E1049X-6 supports hexagon crimp or solder terminations to suit field wiring preferences and ensure a solid, repeatable connection. See IF 1777 instruction sheets for recommended tooling.
It is rated up to 898 A continuous and accepts conductors up to 535 kcmil, enabling high-current power transmission in a single plug.
Yes. It carries IECEx/ATEX Zone 2 approval along with NEC/CEC certifications and IP54 protection for safe operation in hazardous environments.
Certifications include IECEx/ATEX, NEC/CEC, NEMA 3R, and Zone 2 hazardous rating, with IP54 ingress protection for dust and water resistance.
Resources include Roughneck literature and installation sheets such as IF 1777, brochure, and catalog pages available from Eaton's site for guidance and compliance.
