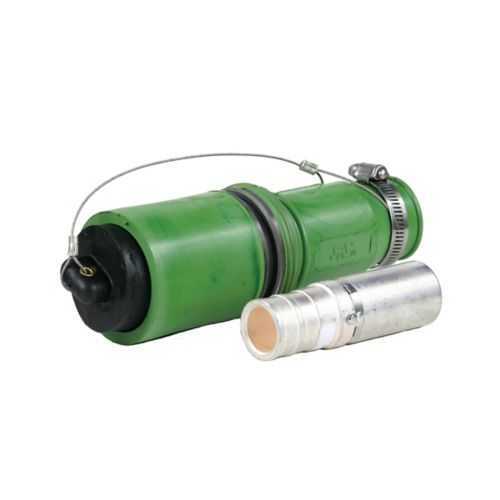

Eaton Crouse-Hinds E1049X-64 Plug - Zone 2 Rated
Part Number: E1049X-64
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049 plug delivers rugged, high-current connections for hazardous-location electrical systems. When field termination and dependable sealing matter most, engineers need a plug that tolerates harsh environments without compromising safety or uptime. This design carries IECEx/ATEX Zone 2 approval, NEC Class I Division 2 ratings, and IP54 protection, ensuring regulatory compliance and weather-resistant performance in demanding facilities. With compatible hex crimp or solder connections and copper contacts, the E1049X-64 aligns with high-capacity feeders while reducing installation time and lifecycle costs. Its green rubber housing and 8.5 in length, along with a 3x3 in footprint, support straightforward installation and reliable field service.
Product Information
Extended Description
E1049X-64 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Green, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-64
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962126
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature up to 1009A continuous rating → Business impact: enables reliable service for high-demand feeders, reducing the need for frequent replacements in heavy-industrial setups. Application: power distribution in hazardous locations. Feature 646 kcmil cable size → Business impact: supports large-diameter conductors, improving current capacity and minimizing terminal crowding on switchgear. Application: industrial plants with demanding motor loads. Feature Zone 2 rated → Business impact: streamlines regulatory compliance and lowers risk of nonconformance in classified areas. Application: chemical processing, oil and gas, and mining facilities. Feature hexagon crimp or solder connection → Business impact: flexible field termination options that speed up installation and improve contact integrity. Application: field-installed plugs and connectors. Feature copper contacts with rubber housing → Business impact: low contact resistance and durable sealing for long service life. Application: harsh environments with moisture, dust, and chemicals. Feature IP54 and NEMA 3R protection → Business impact: enhanced protection against ingress and weather-related exposure, reducing maintenance overhead. Application: outdoor or damp industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-64
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-64?
Enquire Now
FAQs
The E1049X-64 is designed for 646 kcmil cable sizes and supports up to 1009A continuous current. It features copper contacts and offers two termination methods—hexagon crimp or solder—facilitating secure, reliable connections in Zone 2 hazardous locations. The assembly is suited for heavy-duty feeders in chemical, oil & gas, and mining applications.
This plug carries IECEx/ATEX Zone 2 certification and NEC Class I, Division 2 ratings, along with IP54 ingress protection and NEMA 3R suitability. These certifications collectively address safety, environmental exposure, and regulatory requirements for installations in hazardous environments.
Yes. The E1049X-64 is rated for 1000 Vac/dc, with copper contacts and rubber sealing. Its Zone 2 rating ensures safe operation within hazardous areas, while the environmental protection helps maintain performance across variable operating conditions. Field termination via hex crimp or solder supports flexible installation around 8.5 in length.
The Roughneck E1049X-64 provides two termination options—hex crimp or solder—allowing technicians to choose the fastest, most reliable method for the site. Its green rubber housing, 3x3 in footprint, and 8.5 in length simplify mounting and alignment on standard enclosures, minimizing commissioning time and reducing labor costs in hazardous locations.
With IP54 protection and a Zone 2 rating, the E1049X-64 is designed to resist dust and spray-water exposure, lowering cleaning and maintenance frequency. Copper contact surfaces and rubber sealing contribute to sustained low contact resistance and sealing integrity, supporting longer service life in tough surroundings such as offshore platforms, refineries, and chemical plants.
