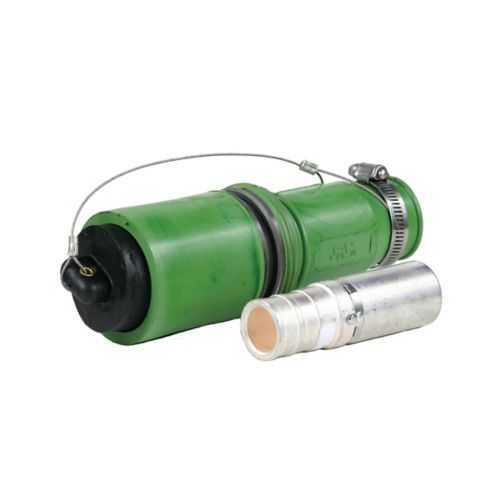

Eaton Crouse-Hinds Roughneck E1049 plug - Zone 2 rated
Part Number: E1049X-65
Quick Summary
Eaton Crouse-Hinds Roughneck E1049 plug provides high-current connections for hazardous-location power distribution. In Zone 2 environments, operators struggle with limited space, corrosion exposure, and strict regulatory requirements that slow projects. This product pairs Zone 2 hazardous location certification, IP54 ingress protection, and NEC/IECEx/ATEX compliance to help you meet safety and performance standards with confidence. It supports continuous operation up to 1009A and accommodates 646 kcmil conductors, while offering hexagon crimp or solder connections for flexible installation. By combining rugged rubber housing with copper contacts, it delivers reliable field service, minimizes downtime, and reduces lifecycle costs on global industrial installations.
Product Information
Extended Description
E1049X-65 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, White, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-65
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962133
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: High amperage capability up to 1009A continuous. Business Impact: Reduces the need for parallel plugs and simplifies wiring, lowering installation time and panel complexity. Application: Large motor feeders in manufacturing, mining, and chemical processing. Feature: Cable size support up to 646 kcmil copper conductors. Business Impact: Enables direct termination of substantial feeders, improving overall power delivery efficiency and reducing junctions. Application: Heavy-duty power distribution in industrial plants. Feature: Zone 2 rating with IECEx/ATEX and NEC/CEC certifications. Business Impact: Provides regulatory confidence and safer maintenance in hazardous areas, easing audits and compliance costs. Application: Oil, gas, chemical, and refining plants. Feature: IP54 ingress protection and NEMA 3R compatibility. Business Impact: Protects against dust ingress and light water exposure, extending service life and reducing maintenance cycles. Application: Outdoor, damp, or exposed environments. Feature: Connection options hexagon crimp or solder. Business Impact: Flexible, field-friendly terminations that speed installation and reduce special tooling needs. Application: On-site wiring in tight spaces with varied conductor terminations. Feature: Rubber housing with copper contacts. Business Impact: Durable, corrosion-resistant interfaces that sustain performance in harsh industrial settings and minimize replacement costs. Application: Harsh environments with frequent vibration and temperature variations.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-65
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-65?
Enquire Now
FAQs
The E1049X-65 supports hexagon crimp or solder terminations with copper contacts inside a rubber housing. It is designed for Zone 2 hazardous locations and carries NEC/IECEx/ATEX certifications, along with IP54 protection. For compatibility, pair this female plug with the corresponding Roughneck receptacle and ensure conductor size up to 646 kcmil. This flexible termination approach speeds on-site wiring and reduces splicing complexity.
The E1049X-65 is rated for up to 1009A continuous current and 1000 Vac/dc, with support for 646 kcmil conductors. It uses copper contacts and a rubber housing, and is Zone 2, NEC/CEC, and IECEx/ATEX certified. These specs enable direct high-amperage connections in heavy-use industrial systems while maintaining safety and compliance.
This Roughneck plug is well-suited for heavy power distribution in hazardous environments such as oil and gas, chemical processing, mining, and other plants with Zone 2 or Class I Division 2 classifications. Its IP54 protection and NEMA 3R compatibility support outdoor, damp, and outdoor-to-indoor transitions, helping avoid downtime during maintenance and installation in tough industrial settings.
The E1049X-65 carries Zone 2 hazardous location certification, IECEx/ATEX, and NEC/CEC standards, along with IP54 ingress protection and NEMA 3R rating. These certifications ensure compliance for global installations and streamline regulatory approvals for projects in hazardous locations.
Roughneck plugs use a rugged rubber housing and copper contacts, delivering durable, vibration-resistant connections with low resistance over time. The hex crimp or solder terminations reduce connection fatigue and loosening, lowering maintenance frequency. This translates to reduced replacement costs, fewer downtime events, and improved total cost of ownership in harsh industrial environments.
