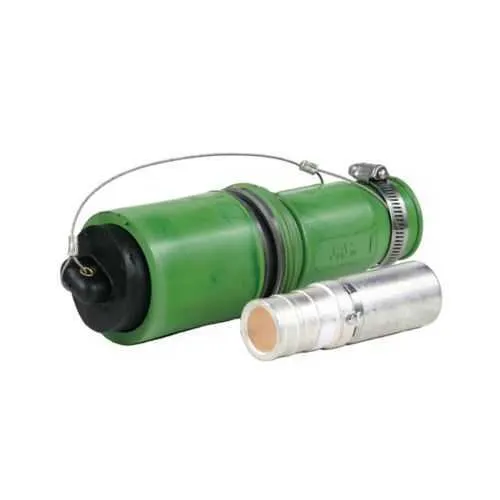

Eaton Crouse-Hinds E1049X-69 Plug - Zone 2 rated
Part Number: E1049X-69
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049X-69 plug is a high-amperage electrical connector designed for hazardous locations in industrial power distribution. Maintenance teams often struggle with safe, code-compliant terminations in Zone 2 environments where moisture, dust, and gas exposure threaten reliability. This plug carries IECEx/ATEX Zone 2 certification, NEC/CEC Class I, Division 2 compliance, IP54 protection, and NEMA 3R suitability, providing confidence in harsh installations. By combining copper contacts, a rubber housing, and flexible hexagon crimp or solder terminations, it supports quick field assembly and durable performance, unlocking uptime and lowering total cost of ownership.
Product Information
Extended Description
E1049X-69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1009A continuous, 646 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-69
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275962379
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
646 kcmil
Amperage Rating
Up to 1009A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Feature Up to 1009A continuous and 646 kcmil cable capacity; Business Impact Enables direct high-current connections without oversized hardware, reducing cabling complexity and inventory costs; Application For heavy machinery like motors, pumps, and conveyors in Zone 2 environments. Feature Zone 2 rating and IP54 protection; Business Impact Ensures safe operation in moisture, dust, and gas exposure, aiding regulatory compliance and operator safety; Application Chemical plants, oil & gas processing, and mining installations. Feature Copper contacts with rubber housing; Business Impact Improves contact reliability and sealing under vibration, reducing maintenance cycles and contact resistance concerns; Application Offshore platforms and rugged industrial equipment. Feature Hexagon crimp or solder termination; Business Impact Provides installation flexibility across different field crews, speeding up retrofits and new builds while maintaining evidence of proper depth and crimp quality; Application Retrofit projects and new construction in hazardous locations. Feature Compact dimensions: 8.5 in length, 3 in width and height; Business Impact Facilitates panel integration and adaptable mounting in tight control enclosures, lowering assembly time; Application Control panels, junction boxes, and equipment housings in demanding environments.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-69?
Enquire Now
FAQs
Yes. The E1049X-69 supports up to 646 kcmil cables and up to 1009A continuous current. Terminations are available via hexagon crimp or solder methods using copper contacts, with a rubber housing for sealing. Follow appropriate torque and crimp standards and ensure proper strain relief to maintain IP54 integrity and Zone 2 compliance during field installs.
The plug is rated for up to 1009A continuous and 1000 Vac/dc, enabling direct connection for high-load equipment such as motors and pumps. For duty cycles and startup transients, design the system to stay within the continuous rating and provide adequate fault protection. Use compatible mating connectors and conform to NEC/CEC guidelines for Class I, Division 2 hazardous locations.
Ideal for hazardous locations found in oil and gas, chemical processing, mining, and water treatment plants. Zone 2 rated, IP54 protection, and NEMA 3R compatibility make it well-suited for damp, dusty areas with potential gas or vapor exposure, where reliable high-current connections and quick field servicing are required.
The plug carries IECEx/ATEX certification for Zone 2, NEC/CEC Class I, Division 2 compliance, IP54 ingress protection, and NEMA 3R suitability. These certifications support compliance in multiple jurisdictions and streamline procurement by meeting major global electrical safety standards for hazardous locations.
The Roughneck E1049X-69 reduces downtime through robust field-terminations, reliable copper contacts, and a durable rubber housing that resists harsh environments. Its Zone 2 and IP54 certifications minimize regulatory risk, while long service life and straightforward maintenance translate to lower replacement and labor costs over the equipment’s lifecycle.
