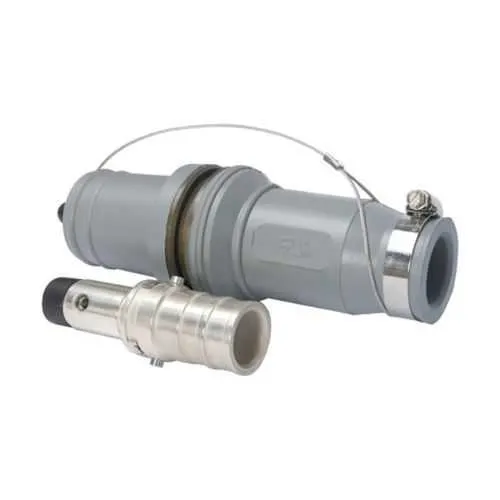

Eaton E1049X-7 Roughneck plug - Zone 2 rated, 898A
Part Number: E1049X-7
Quick Summary
Roughneck E1049 plug by Eaton Crouse-Hinds enables high-amperage connections for hazardous locations. Engineers often struggle with durability and safety when routing large feeders in Zone 2 environments. This model carries Zone 2 and IP54 protection with Class I, Division 2 compliance, IECEx/ATEX readiness, and a rugged rubber housing. By offering hexagon crimp or solder terminations and copper contacts, it supports fast, reliable field installs and long-term operating efficiency. Designed for up to 898A continuous and 535 kcmil conductors, it reduces panel space and minimizes connector proliferation in large power feeds. The Blue color coding helps technicians rapidly identify correct mating assemblies in mixed-use facilities, supporting safer maintenance cycles.
Product Information
Extended Description
E1049X-7 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 898A continuous, 535 kcmil, Blue, Hexagon crimp or solder, Copper contacts, Male, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-7
Product Length/Depth
8.5 in
Product Height
2.16 in
Product Width
2.16 in
Product Weight
1 lb
UPC
662275961365
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
535 kcmil
Amperage Rating
Up to 898A Continuous
Voltage rating
1000 Vac/dc
Gender
Male
Connection type
Hexagon crimp or solder
Color
Blue
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Feature a high-amperage capability up to 898A continuous and supports 535 kcmil copper conductors. Business impact: enables fewer parallel connectors and reduces space and installation time in main feeders. Application: heavy power distribution in chemical plants and mining operations where reliable high-current joints are critical. Feature Zone 2 rated and IP54 enclosure with NEC Class I, Division 2 compliance. Business impact: enhances safety and regulatory conformity in hazardous locations, lowering risk and potential downtime. Application: offshore platforms and processing plants requiring robust protection. Feature Copper contacts inside a rubber housing. Business impact: improves corrosion resistance and longevity, reducing maintenance cycles and replacement costs. Application: long-term operation in harsh environments. Feature Hexagon crimp or solder termination options. Business impact: offers field-installation flexibility, reducing tool requirements and enabling faster commissioning. Application: retrofit projects and new builds with mixed termination practices. Feature Up to 1000 Vac/dc rating. Business impact: broad compatibility with AC/DC systems, simplifying inventory and reducing connector assortment. Application: motor feeders and control circuits in industrial facilities. Feature Blue color coding for quick identification. Business impact: minimizes mis-mating risks during maintenance and inventory management. Application: complex rack and panel installations with multiple connector types.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-7?
Enquire Now
FAQs
Installation requires surface or recessed mounting with space for the 8.5 inch length. Termination can be performed via hexagon crimp or solder, using copper contacts. Ensure the housing seals meet IP54 requirements and that the installation adheres to NEC Class I, Division 2 and IECEx/ATEX Zone 2 standards. Use the provided IF 1778 instruction sheets for step-by-step guidance.
The E1049X-7 supports up to 898A continuous current and accepts 535 kcmil conductors. It is rated for 1000 Vac/dc and is designed for copper contacts within a rubber housing, making it suitable for high-current feeders in demanding environments.
Industries such as chemical processing, mining, oil & gas, and offshore platforms benefit due to Zone 2 hazard classification, rugged IP54 protection, and high-current capability. It excels in large feeder connections, where reliability and regulator compliance significantly impact uptime and maintenance costs.
Certifications include Zone 2 hazardous area rating, Class I, Division 2 compliance, IECEx/ATEX, NEMA 3R, and IP54 ingress protection. These ratings ensure safe operation in hazardous locations and protection against dust and water ingress in rugged industrial environments.
By supporting hexagon crimp or solder terminations with copper contacts and a durable rubber housing, it reduces replacement frequency and field rework. Its high-current capability minimizes the number of parallel connectors, lowering inventory and labor costs while improving system reliability and uptime.
