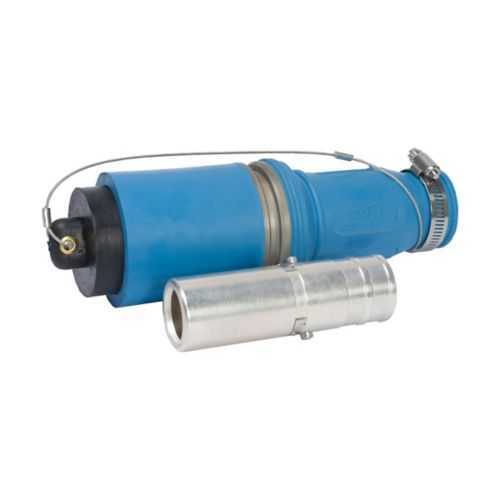

Eaton Crouse-Hinds E1049X-74 Plug - Zone 2 Rated
Part Number: E1049X-74
Quick Summary
The Eaton Crouse-Hinds E1049X-74 plug delivers rugged, high‑amperage connections for hazardous-location wiring needs. Engineers often struggle with confined spaces, demanding safety ratings, and large cable sizes. Key certifications such as IECEx/ATEX, NEC/CEC, Zone 2, and NEMA 3R support safe operation across global sites. The IP54 protection and rubber housing with copper contacts enable reliable performance in harsh environments, while the option for hexagon crimp or solder connections speeds field installation. This combination translates to reduced downtime, simpler maintenance, and a clear pathway to scalable, compliant high‑current infrastructure.
Product Information
Extended Description
E1049X-74 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Green, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-74
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962188
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Green
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: High-current capability up to 1135A continuous and 777 kcmil cable compatibility. Business Impact: Enables large-motor feeder installations with fewer terminations, reducing enclosure fills and installation labor. Application: Ideal for main feeders in manufacturing lines and heavy industrial equipment rooms. Feature: Zone 2 hazardous location rating with IP54 ingress protection. Business Impact: Provides compliant operation in classified areas with reliable dust and moisture resistance, lowering the risk of spark-induced incidents. Application: Chemical plants, oil and gas processing, mining, and other hazardous environments. Feature: Copper contacts in a rubber, green-bodied housing. Business Impact: Ensures superior electrical conductivity and environmental sealing, reducing contact resistance and maintenance cycles. Application: Perimeter equipment connections and field-service terminations in rugged plants. Feature: Hexagon crimp or solder connection option. Business Impact: Offers flexible field installation with proven mechanical strength and repeatable performance, decreasing commissioning time. Application: On-site assemblies and pre-termination at assembly lines. Feature: Rugged Roughneck design with 8.5 in length and 3 in width/height. Business Impact: Optimized reach in tight enclosures while maintaining grip and reliability, aiding faster, safer installations. Application: Control panels, switchgear housings, and large-diameter cable terminations in harsh facilities.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-74
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-74?
Enquire Now
FAQs
The E1049X-74 supports hexagon crimp or solder connections and uses a rubber housing for environmental sealing. When wiring, verify cable preparation for 777 kcmil conductors, maintain correct polarity, and ensure compatible crimp tools or soldering methods. Allow for the 8.5 inch length and 3 inch width/height in enclosure planning to avoid clearance issues.
Yes. The E1049X-74 is rated for up to 1135A continuous and supports 777 kcmil cables, making it suitable for large feeders and motor connections. For best results, match the conductor size to the specified copper contact configuration and use appropriate lugs or crimp dies per manufacturer guidance.
This plug carries IECEx/ATEX, NEC/CEC compliance, Zone 2 hazardous location rating, and Class I, Division 2 recognition, along with NEMA 3R and IP54 protection. These certifications support safe operation in global hazardous environments and enable cross-site deployment with confidence in safety standards.
The component is rated for 1000 Vac/dc, with copper contacts delivering superior electrical conductivity. This combination supports high-current, low-loss terminations, and aligns with the needs of industrial power distribution in demanding settings.
Commonly used in heavy electrical distribution, large-motor feeders, and equipment terminations within hazardous classifications such as Class I Division 2. Industries include oil and gas, chemical processing, mining, and other operations requiring Zone 2 rated, IP54-protected connections with robust, field-installable termination options.
