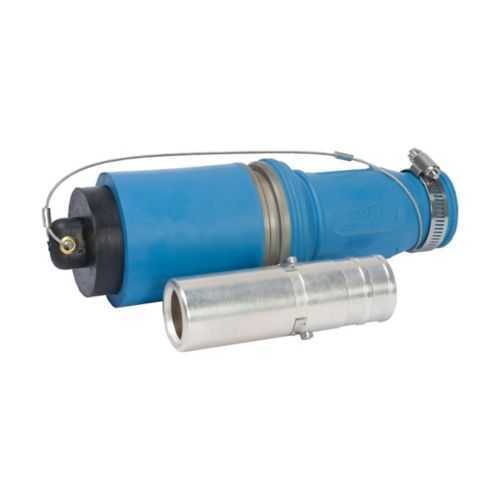

Eaton Crouse-Hinds E1049X-75 Plug - Zone 2 Rated
Part Number: E1049X-75
Quick Summary
The Eaton Crouse-Hinds E1049X-75 plug is a high-amperage connector optimized for rugged industrial power feeds in hazardous locations. In practice, engineers struggle with downtime and non-compliant equipment that disrupts safety and production. This plug carries essential certifications for safe operation in demanding environments, including Zone 2 hazardous area compliance, NEC/CEC conformity, and IECEx/ATEX suitability, along with IP54 ingress protection and a NEMA 3R rating. By combining a robust rubber body, copper contacts, and a choice of hexagon crimp or solder terminations, it delivers reliable, long service life. For procurement teams and field technicians, the E1049X-75 offers a proven balance of current capacity, installation flexibility, and total cost of ownership improvements, especially when wiring to large-diameter cables.
Product Information
Extended Description
E1049X-75 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, White, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-75
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962195
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
White
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Up to 1135A continuous current and 777 kcmil cable compatibility. Business Impact: Supports large feeders with fewer terminations, reducing labor and potential fault points. Application: Ideal for heavy-duty motors and feeders in steel, chemical, and refining environments. Feature: Zone 2 hazardous location rating with IP54 and NEMA 3R protection. Business Impact: Enhances safety compliance and minimizes weather and dust ingress, lowering risk in hazardous plants. Application: Used in chemical plants, offshore platforms, and other classified zones. Feature: Hexagon crimp or solder connection options. Business Impact: Flexible installation paths improve on-site wiring speed and reduce specialized tooling requirements. Application: Field installs and retrofit projects with copper contacts for low resistance. Feature: Rubber housing and copper contact material. Business Impact: Durable, corrosion-resistant interface supports long service life and stable electrical performance. Application: Repeated mating cycles in harsh environments. Feature: Precise dimensions and weight (8.5 in length, 3 in width/height, 5.5 lb). Business Impact: Predictable fitment and easier planning for panel layouts and cable routing. Application: Maintenance planning and enclosure design in large industrial systems.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-75
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-75?
Enquire Now
FAQs
The E1049X-75 supports 777 kcmil conductors with copper contacts and a continuous current rating up to 1135A, enabling reliable, high-duty use in large feeder applications. Its hexagon crimp or solder terminations provide flexible termination options for robust, low-resistance connections in demanding installations such as pumps, fans, and large motors.
This plug is certified for Hazardous/Classified Locations (Area classification) and supports NEC/CEC and IECEx/ATEX standards. It is Zone 2 rated, IP54 protected, and NEMA 3R compliant, making it appropriate for chemical plants, refineries, and other areas with flammable or explosive atmospheres.
Installation supports hexagon crimp or solder terminations. Crimping provides fast, repeatable terminations with strong mechanical and electrical performance, while soldering offers a low-resistance, permanent bond in tight or awkward layouts. Both options use copper contacts within a rubber housing designed for rugged field conditions.
The E1049X-75 is Zone 2 rated for hazardous locations, with IP54 ingress protection and a NEMA 3R enclosure. These protections help guard against dust and water ingress while maintaining safe operation in confined or outdoor industrial settings.
The rugged rubber body and copper contacts reduce wear and corrosion, lowering maintenance frequency. High-current capacity and field-friendly termination options shorten downtime during installation or retrofits. Standardizing on the E1049X-75 can streamline procurement, reduce spares variety, and improve overall system reliability in hazardous-area projects.
