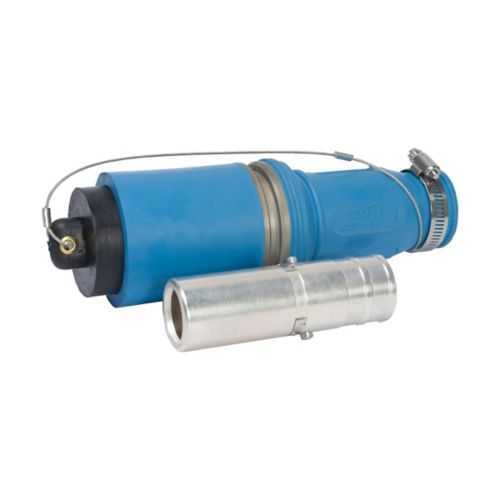

Eaton Crouse-Hinds E1049X-79 Plug - Zone 2 Rated
Part Number: E1049X-79
Quick Summary
Eaton Crouse-Hinds E1049X-79 plug provides rugged, high‑amperage connections for hazardous‑location motors and feeders. In demanding Zone 2 environments, moisture, dust, and explosive atmospheres challenge reliability, safety, and maintenance schedules. Certified for NEC/CEC, IECEx/ATEX Zone 2, Class I, Division 2, and IP54 ingress protection, it supports global compliance across North America and international plants. Designed for up to 1135A continuous and 777 kcmil cables, its hexagon crimp or solder connection offers a secure, repeatable interface. Field installation is faster with copper contacts and rubber housing that resist chemicals, while minimizing torque requirements and potential damage.
Product Information
Extended Description
E1049X-79 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 1135A continuous, 777 kcmil, Gray, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-79
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275962416
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
777 kcmil
Amperage Rating
Up to 1135A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Gray
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1777 - Roughneck E1049 Series Connectors
IF 1777 - Roughneck E1049 Series Connectors
Feature: Up to 1135A continuous rating and 777 kcmil cable compatibility. This capacity enables direct, high-current connections for large motors and feeders, reducing the need for midspan splices and minimizing contact resistance that can cause heat buildup over time. Application: Ideal for Roughneck high-amperage plugs in heavy equipment such as pumps, conveyors, and crushers operating in hazardous locations where reliability is mission-critical. Feature: Hexagon crimp or solder termination offers installation flexibility. Business impact: Field technicians can leverage existing tooling and procedures, shortening setup time and accelerating preventive maintenance cycles. Application: Suitable for maintenance crews replacing worn connectors on large compressors, pumps, and grinders in Zone 2 environments. Feature: Rubber housing with copper contacts delivers rugged durability and low contact resistance. Business impact: The rubber seal and chemical resistance extend service life in harsh process environments, reducing replacement costs. Application: Chemical plants, refineries, and mining sites where exposure to moisture, oils, and dust is routine. Feature: IP54 protection and NEMA 3R compatibility provide broad enclosure resilience. Business impact: Keeps moisture and particulates out in outdoor and semi-enclosed installations, supporting regulatory compliance for hazardous locations. Application: Outdoor pumps, switchgear, and portable equipment deployed in oil, gas, and mineral-processing facilities. Feature: Compact size and manageable weight (8.5 in length, 3 in height and width, 1 lb) simplify handling during installation. Business impact: Reduces installation time and fatigue for crews, enabling faster panel assembly and service turns. Application: OEM wiring harnesses and retrofit projects across global plants requiring Zone 2 rated, high-current plugs.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-79
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-79?
Enquire Now
FAQs
Installation requires ensuring the conductor is clean and properly prepared for hexagon crimp or solder termination. Use compatible crimp tooling or soldering procedures conforming to the Roughneck guidelines. Verify polarity, insulation integrity, and mechanical securement before energizing the circuit. The rubber housing provides environmental sealing once mated with the corresponding connector.
The design provides a high-current copper contact interface and robust rubber housing that tolerates industrial contaminants. The hexagon crimp or solder termination ensures low resistance and consistent contact pressure. The assembly is rated for continuous duty, and the 1000 Vac/dc rating supports versatile supply requirements in demanding environments.
Yes. The plug is Zone 2/IECEx/ATEX certified and NEC/CEC compliant for hazardous locations, including Class I, Division 2. This makes it suitable for motors, pumps, and feeders in hazardous process areas while maintaining safe, reliable electrical connections.
It carries IECEx/ATEX Zone 2 and NEC/CEC compliance, Class I, Division 2 suitability, IP54 protection, and NEMA 3R compatibility. These certifications ensure safe operation in hazardous locations and exposure to dust, water, and outdoor conditions, aligning with strict industrial standards.
Maintenance benefits come from durable copper contacts, a rubber housing, and a simple hex crimp or solder process that reduces teardown time. The high-current rating and robust enclosure lower failure rates, contributing to reduced downtime and favorable total cost of ownership in long-running industrial systems.
