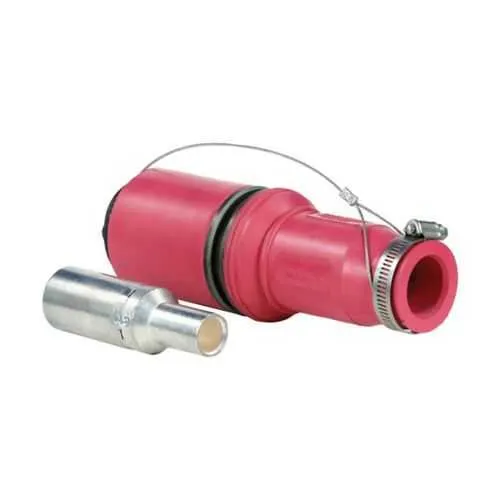

Eaton Crouse-Hinds E1049X-83 Plug - Zone 2 Rated
Part Number: E1049X-83
Quick Summary
The Eaton Crouse-Hinds Roughneck E1049 plug delivers a high-current connection for hazardous locations. Engineers often struggle with safe terminations on large 313 kcmil cables in Zone 2 environments, where vibration and moisture threaten reliability. Our E1049X-83 is Zone 2 rated with IECEx/ATEX and NEC Class I, Division 2 compliance, IP54 protection, and a NEMA 3R enclosure, delivering durable performance in tough conditions. For procurement teams, the rugged rubber housing and copper contacts enable long service life with low maintenance, while hexagon crimp or solder termination offers installation flexibility across equipment and plants.
Product Information
Extended Description
E1049X-83 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Orange, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-83
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
1 lb
UPC
662275962232
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Orange
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Roughneck Single Pole High-amperage Plugs and Connectors brochure
Roughneck Single Pole High Amperage Plugs and Connectors catalog page
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
IF 1778 - Roughneck E1049 Series Connectors and Receptacles
Feature → Business Impact → Application: High-current capability up to 636A continuous with a 313 kcmil cable is engineered to support large motors and feeders, reducing the number of connection points and improving overall system reliability in industrial plants. This translates to lower maintenance cycles and fewer hot-work events during commissioning, especially in chemical processing and oil/gas facilities where downtime is costly. Feature → Business Impact → Application: Zone 2 rating combined with IECEx/ATEX and NEC Class I Division 2 compliance provides a safer wiring solution for hazardous locations, helping engineers meet strict regulatory requirements while expediting approvals for project timelines. Feature → Business Impact → Application: IP54 ingress protection and NEMA 3R enclosure shield sensitive connections from dust, water splash, and outdoor exposure, enabling longer service life and reduced corrosion-related failures in outdoor substations and offshore installations. Feature → Business Impact → Application: Copper contact material with rubber housing ensures low contact resistance and reliable electrical performance under vibration and temperature cycling, supporting sustained efficiency in demanding environments. Feature → Business Impact → Application: Hexagon crimp or solder termination offers installation flexibility, allowing field technicians to verify or retrofit terminations quickly, minimizing downtime during expansion or preventive maintenance. Feature → Business Impact → Application: The 8.5 in length and 3 in diameter footprint provides a compact yet robust connector option for tight enclosures, improving cable management and reducing installation labor in complex plant layouts.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-83
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-83?
Enquire Now
FAQs
This plug supports hexagon crimp or solder terminations and uses a rubber housing with copper contacts, designed for Zone 2 hazardous locations. Ensure proper cable preparation for 313 kcmil conductors, follow IECEx/ATEX and NEC Class I Division 2 guidelines, and verify IP54 sealing during assembly to maintain-field integrity and compliance.
Yes, the E1049X-83 is specified for 313 kcmil cables and provides up to 636A continuous current. It supports voltages up to 1000 Vac/dc, and the copper contact design maintains low resistance for reliable high-amperage operation in hazardous locations.
The plug is Zone 2 rated with IECEx/ATEX and NEC/CEC certifications, Class I, Division 2, and a NEMA 3R enclosure. It also carries IP54 protection, ensuring protection against dust ingress and water splashes in demanding sites such as chemical plants and offshore facilities.
Ideal for large-motor feeders, pumps, and power distribution in hazardous locations, including oil and gas, chemical processing, and mining operations. The combination of high current capacity, rugged housing, and flexible termination methods makes it suitable for both new installations and retrofits in challenging environments.
Durable rubber housing and copper contacts resist wear and corrosion, reducing maintenance frequency. Zone 2 and IP54 compliance minimize the risk of non-compliance penalties and unplanned downtime, while hex crimp or solder terminations save field labor time during installation and servicing, delivering a favorable total cost of ownership.
