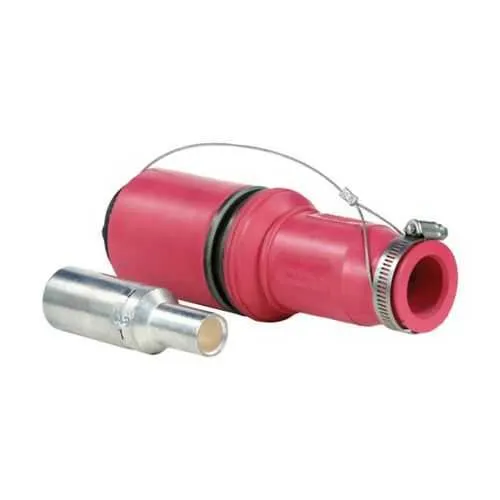

Eaton Crouse-Hinds E1049X-88 Plug - Zone 2 Rated
Part Number: E1049X-88
Quick Summary
The Eaton Crouse-Hinds E1049X-88 plug delivers rugged, high-amperage power connections for hazardous-area electrical installations. Engineers often grapple with safety, sealing, and uptime in Class I Division 2 environments, where even small connector mistakes can drive leaks or downtime. This solution carries IECEx/ATEX Zone 2, NEC Class I Division 2, and IP54/NEMA 3R certifications, providing regulatory confidence and durable operation in harsh plants. By supporting up to 313 kcmil conductors and a 1000 Vac/dc rating, it enables large motor feeds while reducing maintenance needs. For installers and procurement teams, the rubber housing combined with hexagon crimp or solder options supports quick, compliant field assembly and lower total cost of ownership. It’s ideal for oil & gas, mining, and chemical processing facilities.
Product Information
Extended Description
E1049X-88 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck E1049 plug, Up to 636A continuous, 313 kcmil, Purple, Hexagon crimp or solder, Copper contacts, Female, Rubber, Zone 2 rated, 1000 Vac/dc
Product Name
Eaton Crouse-Hinds series Roughneck E1049 plug
Catalog Number
E1049X-88
Product Length/Depth
8.5 in
Product Height
3 in
Product Width
3 in
Product Weight
5.5 lb
UPC
662275962287
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2
IECEx/ATEX hazardous rating
Zone 2
NEMA Rating
3R
Ingress protection (IP) ratings
IP54
Cable size
313 kcmil
Amperage Rating
Up to 636A Continuous
Voltage rating
1000 Vac/dc
Gender
Female
Connection type
Hexagon crimp or solder
Color
Purple
Material
Rubber
Contact material
Copper
Special features
Zone 2 rated
Feature: Up to 636A continuous amperage with 313 kcmil copper conductors. Business Impact: Enables large motor feeds without multiple parallel plugs, reducing panel complexity and potential contact resistance. Application: Heavy-duty feeders in hazardous locations where high current and reliability are critical. Feature: Zone 2 rated with IP54 and NEMA 3R protection. Business Impact: Ensures compliant, dust- and moisture-resistant operation in classified areas, lowering risk of equipment failure. Application: Chemical plants and oil & gas processing facilities exposed to dust, water splash, or corrosive environments. Feature: Hexagon crimp or solder connection with copper contacts. Business Impact: Flexible field installation options and robust electrical continuity, minimizing downtime during maintenance. Application: On-site terminations in exposed environments where secure bonding is essential. Feature: Rubber enclosure and 1000 Vac/dc rating. Business Impact: Hardened insulation and universal power compatibility reduce arc flash potential and widen suitability. Application: Control panels and motor control centers in demanding industrial settings. Feature: 8.5 in length, 3 in width, 3 in height, 5.5 lb weight with 313 kcmil capability. Business Impact: Predictable footprint and handling for installations with tight clearances, improving planning accuracy and installation efficiency. Application: Retrofit projects and new builds in hazardous locations requiring precise fit and robust performance.
Get a Quick Quote for a Eaton Crouse-Hinds E1049X-88
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds E1049X-88?
Enquire Now
FAQs
The E1049X-88 supports copper conductors up to 313 kcmil and provides a connection option via hexagon crimp or solder. It is rated for up to 636A continuous current, making it suitable for high‑amperage motor feeds in hazardous locations. Ensure proper crimping or soldering technique and use of compatible tooling to maintain reliability in Zone 2 environments.
This plug carries IECEx/ATEX Zone 2 certification and NEC/CEC compliance for Class I, Division 2 hazardous locations. It also offers IP54 ingress protection and a NEMA 3R enclosure rating, supporting safe operation in dusty, moist, and harsh industrial environments.
Yes. The E1049X-88 is specified for 1000 Vac/dc, enabling safe and versatile operation across industrial power networks. When deploying in hazardous areas, pair this with appropriate protective enclosures and installation practices to maintain conduit integrity and moisture exclusion.
Prioritize proper hex crimp or solder connections using copper contacts, and ensure a rubber-sealed housing is fully seated to preserve IP54 protection. Verify that the mating connector and enclosure meet zone and temperature requirements, and follow manufacturer torque and crimping specs to minimize contact resistance and arcing risks in Class I, Division 2 regions.
By delivering up to 636A continuous current with a durable Zone 2 rating and long‑life copper contacts, the E1049X‑88 reduces downtime, maintenance visits, and replacement costs. Its robust construction supports fewer field reworks, faster installation, and compliance with stringent hazardous-location standards, which translates to lower total cost of ownership over the life of the installation.
